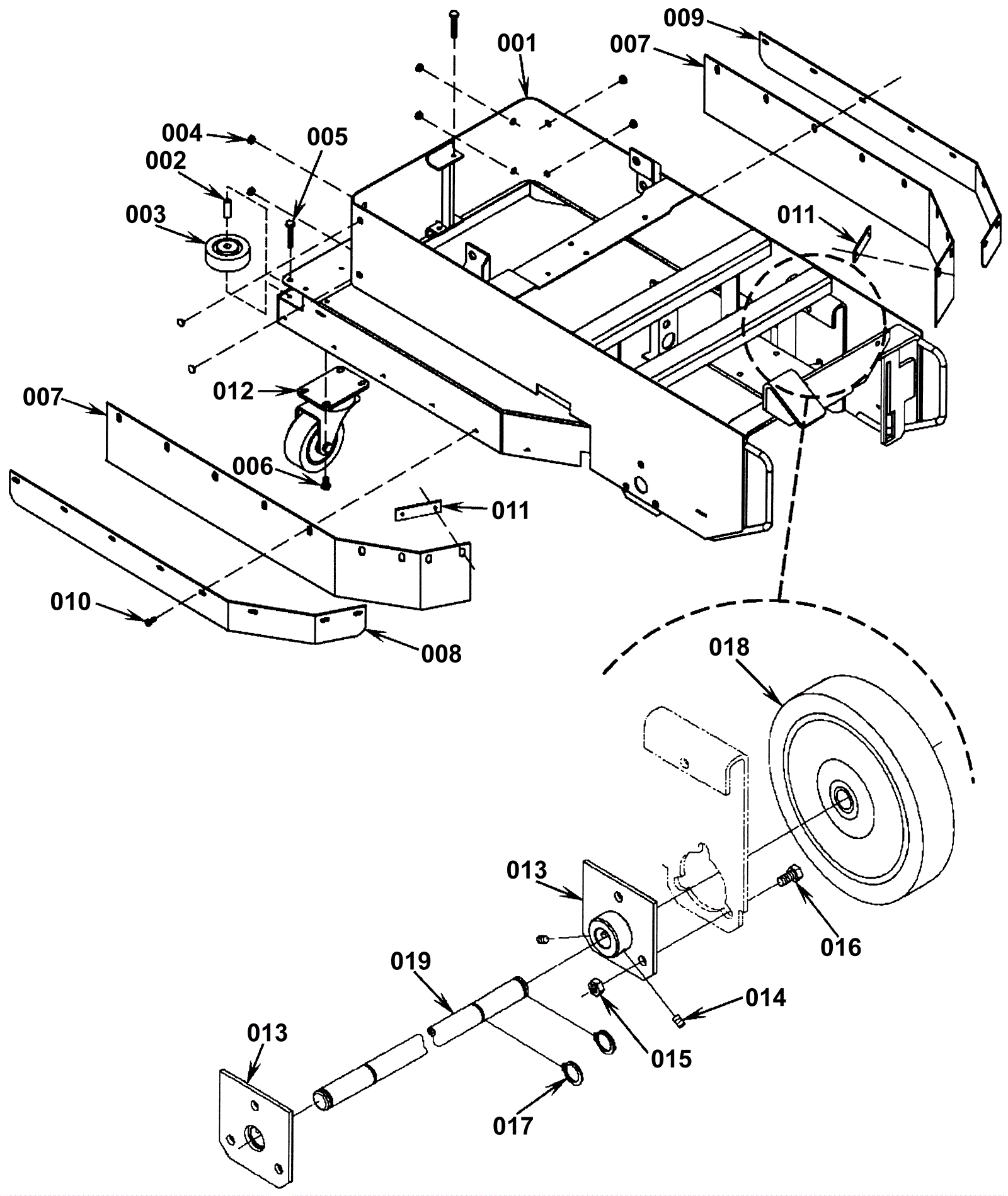

Model 324500 Chassis and Axle System

#PartDescription ReqNotesAvailability
001 N/A Not available 1 (Chassis weldment)
002 172-0044 Bushing (OBSOLETE) 2
003a 172-0045 Guide wheel 2
003b 991-3051 Guide wheel 2
004 172-4518 Button plug 8
005 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated 3
006 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 6
007 172-2269 Rubber guard 2
008 172-2270 Left strap (OBSOLETE) 1
009 172-2271 Right strap (OBSOLETE) 1
010 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel 16
011 N/A Not available 2 (Bar)
012 272-8474 3 1/2 inch swivel caster 2
013 N/A Not available 2 (Axle mount weldment)
014 272-1454 Screw 1/4-20 X 3/8 socket set lock 4
015 999-0430 Nut 5/16-18 hex jam plain finish 6
016 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated 6
017 172-0569 Retaining ring 4
018 172-0114 Wheel with bearings (OBSOLETE) 2
019 N/A Not available 1 (Axle)
