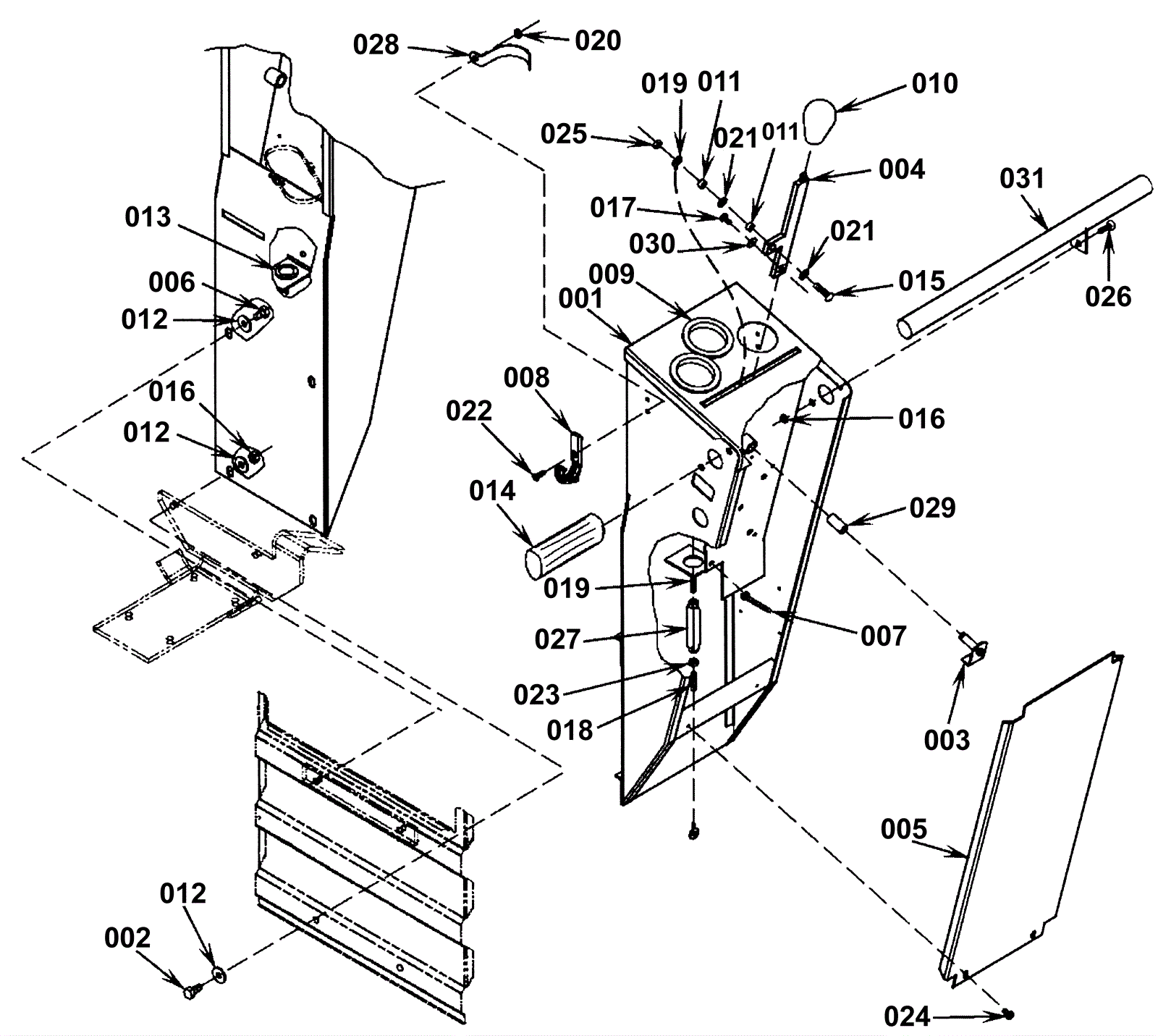

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
(Handle weldment) |
|
002 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
003 |
172-2288
|
Actuator weldment (OBSOLETE) |
1 |
|
|
004 |
172-0570
|
Handle weldment |
1 |
|
|
005 |
N/A
|
Not available |
1 |
(Cover) |
|
006 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
2 |
|
|
007 |
172-2292
|
Grommet |
2 |
|
|
008 |
172-0020
|
Hook (OBSOLETE) |
1 |
|
|
009 |
172-2292
|
Grommet |
2 |
|
|
010 |
172-0021
|
Knob |
1 |
|
|
011 |
172-0016
|
Bushing |
2 |
|
|
012 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
6 |
|
|
013 |
172-2294
|
Flanged bearing (OBSOLETE) |
1 |
|
|
014 |
164-1007
|
Rubber handle grip (black) |
2 |
|
|
015 |
999-0510
|
Screw 1/4-20 x 1 pan head phillips zinc plated |
1 |
|
|
016 |
999-0430
|
Nut 5/16-18 hex jam plain finish |
4 |
|
|
017 |
172-0561
|
Bolt 10-24 x 3/8 hex lock |
1 |
|
|
018 |
172-0248
|
Wire rope assy |
1 |
|
|
019 |
172-0247
|
Wire rope assembly (OBSOLETE) |
1 |
|
|
020 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
021 |
172-0369
|
Washer 17/64 x 3/4 x 23/64 flat |
2 |
|
|
022 |
272-1545
|
Screw 10-24 X 5/8 |
1 |
|
|
023 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
1 |
|
|
024 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
2 |
|
|
025 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
|
|
026 |
999-0399
|
Screw 5/16-18 x 3/4 pan head phillips zinc plated |
1 |
|
|
027 |
172-2296
|
Turn buckle |
1 |
|
|
028 |
172-2295
|
Clamp capacitor (OBSOLETE) |
1 |
|
|
029 |
172-0209
|
Sleeve bearing |
1 |
|
|
030 |
999-0588
|
Washer 7/8 flat stainless steel |
1 |
|
|
031 |
N/A
|
Not available |
1 |
(Handle bar weldment) |
|
N/S |
N/A
|
Not available |
6 |
|
|
