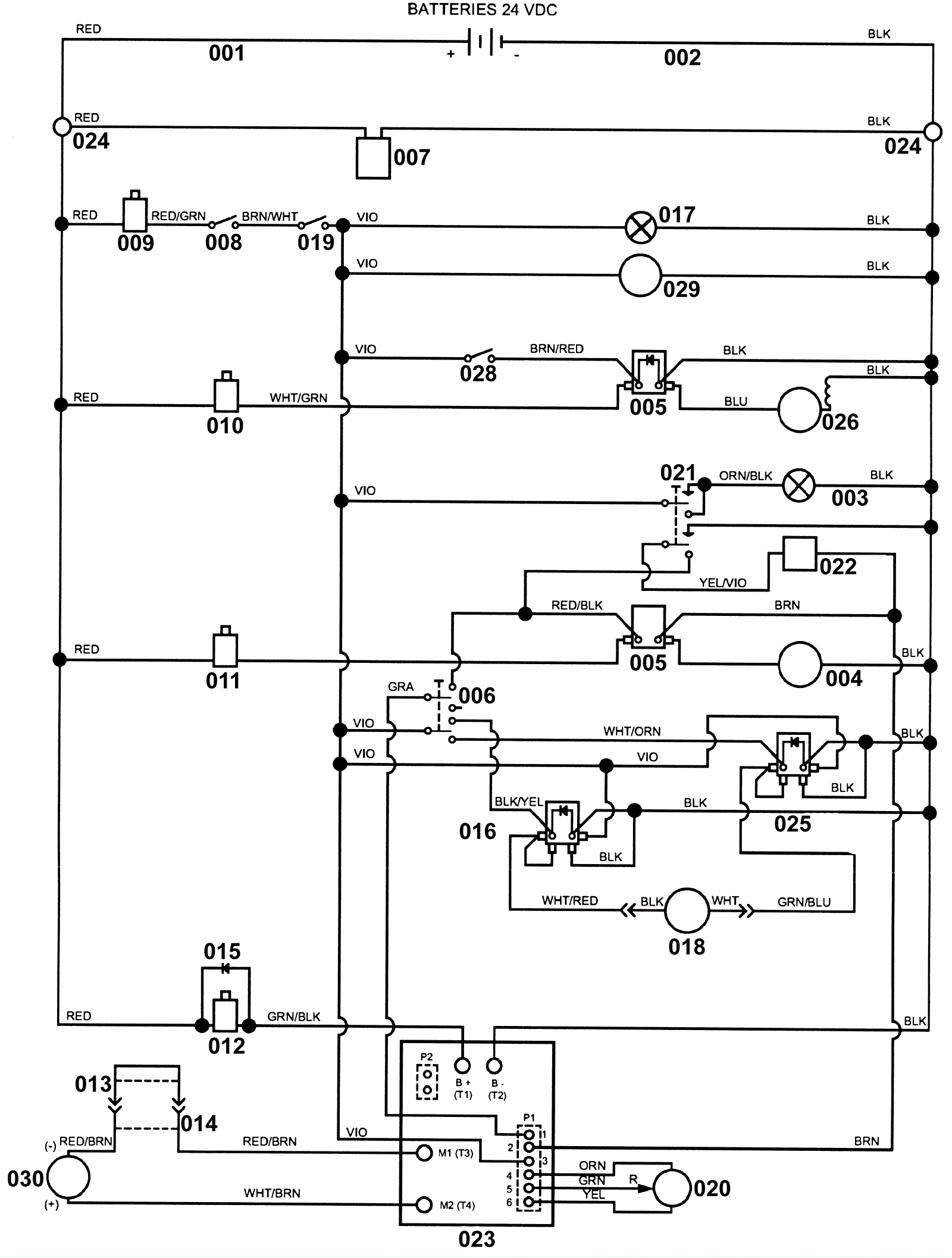

CONVERTAMATIC 265HD Wiring Diagram Before SN 1079087

#PartDescriptionPriceReqNotesAvailability
001 172-0224 Battery cable $65.21 1 (negative) usually ships 1-5 days
002 172-0225 Battery cable $47.67 1 (positive) (positive) usually ships 1-5 days
003 172-0504 Blue light (OBSOLETE) $7.70 1 usually ships 17-28 days
004 172-0349 Brush motor $1,760.00 1 usually ships 1-5 days
005 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 17-28 days
006 172-0219 Rocker switch $69.01 1 (brush) usually ships 17-28 days
007 162-5045 175amp charger plug with pins (red) SB175 $16.09 1 ships same day
008 172-0235 Switch assembly (OBSOLETE) $183.90 1 usually ships 17-28 days
009 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 (control) usually ships 17-28 days
010 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 (vacuum) usually ships 17-28 days
011 991-1633 70amp circuit breaker $57.60 1 (brush) usually ships 21-22 days
012 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 (drive wheel) usually ships 17-28 days
013 172-9847 Male connector $13.76 1 usually ships 17-28 days
014 172-9902 Female connector $13.76 1 usually ships 1-5 days
015 172-0236 Diode rectifier assembly $32.69 1 usually ships 17-28 days
016 172-9844 Down solenoid $199.10 1 usually ships 1-5 days
017 172-0220 Green light (OBSOLETE) $17.90 1 usually ships 17-28 days
018 172-8921 Actuator $551.66 1 usually ships 17-28 days
019 172-6004 Toggle switch $46.00 1 (main) usually ships 17-28 days
020 172-2039 5K potentiometer $63.07 1 ships same day
021 172-2157 Rocker switch DPDT $83.04 1 (solution) usually ships 17-28 days
022 172-2094 Solenoid valve assembly $549.82 1 usually ships 17-28 days
023 172-8085 Speed control kit (OBSOLETE) $737.00 1 usually ships 17-28 days
024 172-0345 Terminal stud $12.31 2 usually ships 17-28 days
025 172-9844 Down solenoid $199.10 1 usually ships 1-5 days
026a 172-0120 24V 2 stage vacuum motor dual ball tangential (OBSOLETE) $261.59 1 (OEM) usually ships 17-28 days
026b 991-1203 24V 2 stage vacuum motor tangential $91.58 1 (NON-OEM) usually ships 14-21 days
028 172-2301 Snap switch $46.22 1 (vacuum) usually ships 17-28 days
029 172-2302 Battery meter $90.59 1 usually ships 17-28 days
030 172-9899 24V drive motor (OBSOLETE) $1,621.62 1 usually ships 1-5 days
