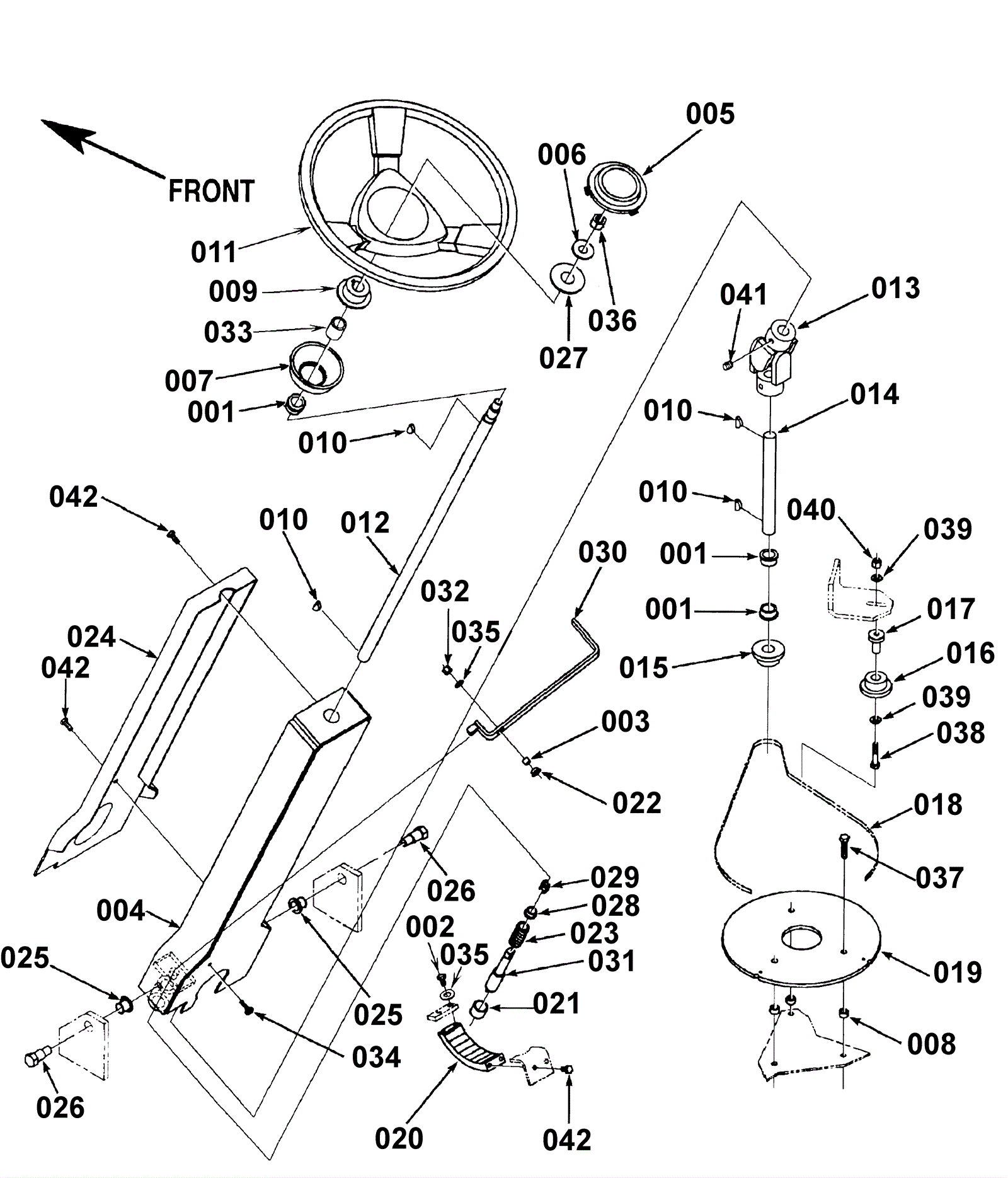

HYDRO 3800B-RIDER Steering System

#PartDescriptionPriceReqNotesAvailability
001 172-9388 Flanged bearing $13.76 3 usually ships 17-28 days
002 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
003 172-0162 Bushing $13.76 1 usually ships 1-5 days
004 172-9805 Column weldment (OBSOLETE) $343.33 1 usually ships 1-5 days
005 172-9077 Cap $47.56 1 usually ships 1-5 days
006 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened $12.31 1 usually ships 1-5 days
007 172-9076 Cup $19.98 1 usually ships 1-5 days
008 172-2631 Bushing $37.05 3 usually ships 1-5 days
009 172-9078 Steering wheel adapter $42.98 1 usually ships 1-5 days
010 172-9387 Woodruff key $12.31 4 usually ships 17-28 days
011 172-9075 Steering wheel $245.69 1 usually ships 17-28 days
012 172-9806 Upper steering shaft (OBSOLETE) $42.77 1 usually ships 1-5 days
013 172-9074 Universal joint $238.01 1 usually ships 1-5 days
014 172-9807 Lower steering shaft (OBSOLETE) $125.93 1 usually ships 1-5 days
015 172-8093 Sprocket $95.66 1 usually ships 17-28 days
016 172-9401 Sprocket assembly $136.44 1 usually ships 1-5 days
017 172-9410 Flanged bushing $30.80 1 usually ships 1-5 days
018 172-9808 Steering chain (OBSOLETE) $36.50 1 usually ships 1-5 days
019 172-9809 Steering plate (OBSOLETE) $171.22 1 usually ships 1-5 days
020 172-4553 Ratchet casting $78.10 1 usually ships 1-5 days
021 172-9810 Sleeve bearing $10.23 1 usually ships 1-5 days
022 172-8815 Flanged bearing $13.76 1 usually ships 17-28 days
023 172-4521 Spring com .75 x 1.68 $13.76 1 usually ships 1-5 days
024 172-9811 Shroud (OBSOLETE) $695.83 1 usually ships 1-5 days
025 172-4037 Flanged bearing (OBSOLETE) $18.39 2 usually ships 17-28 days
026 272-1641 Bolt 1/2-13 x 5/8-23/32 hex shoulder (OBSOLETE) $34.45 2 usually ships 1-5 days
027 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
028 172-9497 Flanged bearing $13.76 1 usually ships 17-28 days
029 991-0103 Master link $1.87 1 ships same day
030 172-9813 Lever weldment (OBSOLETE) $148.97 1 usually ships 1-5 days
031 172-9814 Plunger $93.46 1 usually ships 1-5 days
032 272-1547 Deck kit 2400D (OBSOLETE) $4,329.82 1 usually ships 1-5 days
033 172-9815 Bearing sleeve (OBSOLETE) $6.89 1 usually ships 1-5 days
034 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
035 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
037 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
038 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 1 ships same day
039 999-0412 Washer #8 SAE flat $0.99 2 ships same day
040 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
041 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
042 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 4 ships same day
