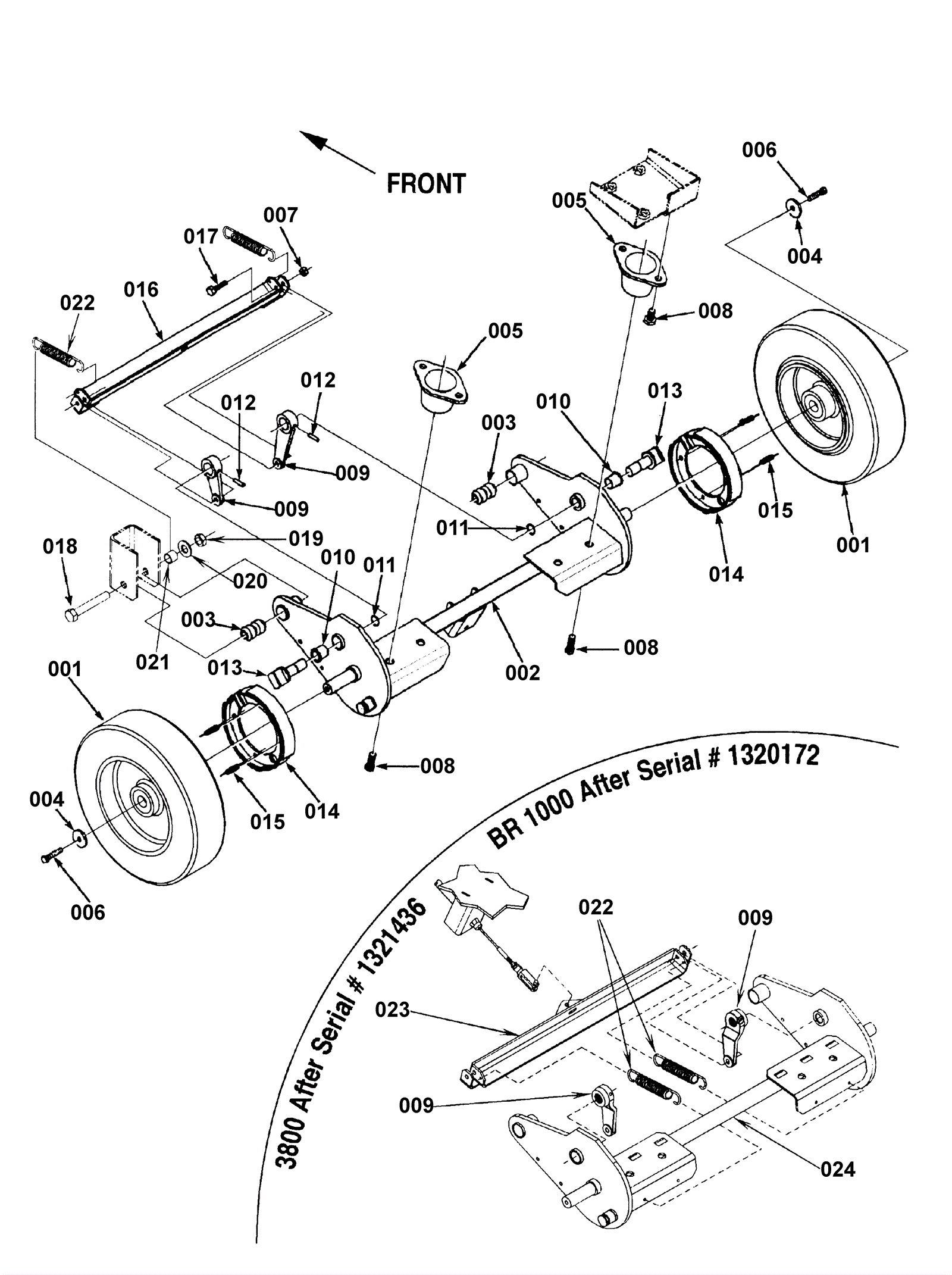

HYDRO 3800B-RIDER Rear Wheel System

#PartDescriptionPriceReqNotesAvailability
001a 172-9749 Rear wheel (OBSOLETE) $1,098.91 2 usually ships 17-28 days
001b 150-4009 Bearing 6205-2RS Call for price 2 (2 req per wheel) (for use with 172 - 9749) usually ships 1-5 days
001c 172-9750 White non-marking rear wheel (OBSOLETE) $814.00 2 usually ships 1-5 days
002 172-9764 Axle weldment (OBSOLETE) $780.52 1 usually ships 1-5 days
003 172-0246 Rubber bushing (OBSOLETE) $27.94 4 usually ships 1-5 days
004 272-1606 Washer flat $22.69 2 ships same day
005 172-9752 Isolator (OBSOLETE) $214.43 2 usually ships 1-5 days
006 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
007 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
008 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 6 ships same day
009a 172-9758 Cam and Arm Kit (32 tooth spline) (OBSOLETE) $111.67 2 usually ships 1-5 days
009b 172-9754 Brake arm (24 tooth spline) (OBSOLETE) $100.39 2 usually ships 1-5 days
010 172-9755 Flange bearing $29.70 2 usually ships 1-5 days
011 172-9756 Retainer ring $11.75 2 usually ships 1-5 days
012 172-9757 Spring pin $11.75 2 usually ships 1-5 days
013a 172-9758 Cam and Arm Kit (32 tooth spline) (OBSOLETE) $111.67 2 usually ships 1-5 days
013b 172-9759 Cam (24 tooth spline) (OBSOLETE) $324.64 2 usually ships 1-5 days
014 272-3074 Brake shoe $120.08 4 usually ships 17-28 days
015 172-9761 Tension spring (OBSOLETE) $8.78 4 usually ships 1-5 days
016 172-9762 Actuator bar (OBSOLETE) $42.77 1 usually ships 1-5 days
017 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
018 999-0930 Bolt 1/2-13 x 3 1/4 hex cap grade 8 plain finish $2.79 2 usually ships 1-5 days
019 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
020 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
021 172-0024 Bushing $13.76 2 usually ships 17-28 days
023 172-9763 Brake equalizer weldment (OBSOLETE) $203.96 1 usually ships 1-5 days
024 172-9764 Axle weldment (OBSOLETE) $780.52 1 usually ships 1-5 days
