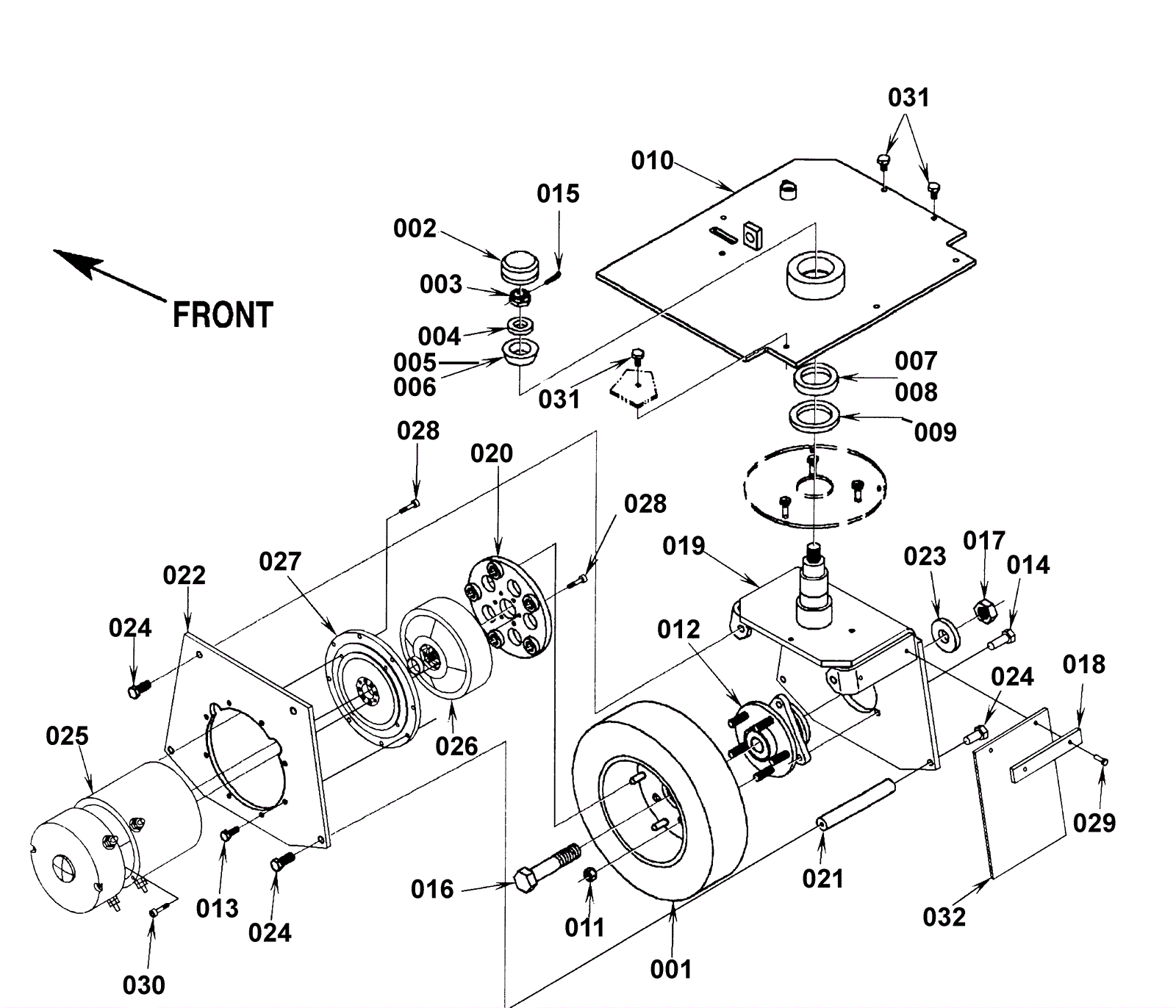

HYDRO 3800B-RIDER Front Wheel System

#PartDescriptionPriceReqNotesAvailability
001a 172-9640 Front wheel (OBSOLETE) $1,963.91 1 usually ships 1-5 days
001b 172-9641 White non-marking front wheel (OBSOLETE) $1,267.66 1 usually ships 1-5 days
002 172-9403 Grease cap $40.45 1 usually ships 1-5 days
003 272-1603 Nut 7/8-14 castle $51.21 1 usually ships 1-5 days
004 172-9409 Bushing $82.32 1 usually ships 1-5 days
005 172-9405 Cone bearing $78.58 1 usually ships 1-5 days
006 172-9404 Cup bearing $87.54 1 usually ships 1-5 days
007 172-9406 Cone bearing $100.10 1 usually ships 1-5 days
008 172-9407 Cup bearing $64.53 1 usually ships 1-5 days
009 172-9408 Radial lip seal $42.98 1 usually ships 1-5 days
010 172-9642 Housing Weldment $405.11 1 ships same day
011 272-1653 Nut 1/2-20 lug $10.85 5 usually ships 17-28 days
012 172-9643 Hub (OBSOLETE) $607.07 1 usually ships 1-5 days
013 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 8 ships same day
014 272-1654 Bolt 12mm-1 3/4 x 25mm $5.19 3 usually ships 1-5 days
015 172-9386 Cotter pin $10.85 1 usually ships 1-5 days
016 272-1655 Bolt 1/8 x 5 $11.75 1 usually ships 1-5 days
017 272-1656 Nut 1-8 nylon lock $11.75 1 usually ships 1-5 days
018 172-9644 Clamp (OBSOLETE) $9.50 1 usually ships 1-5 days
019 172-9645 Spindle TSB 669 (OBSOLETE) $323.14 1 usually ships 1-5 days
020 172-9646 Drive plate assembly (OBSOLETE) $739.52 1 usually ships 1-5 days
021 172-9647 Spacer (OBSOLETE) $48.71 2 usually ships 1-5 days
022 172-9648 Motor mount plate (OBSOLETE) $190.84 1 usually ships 1-5 days
023 172-9649 Spacer (OBSOLETE) $54.87 1 usually ships 1-5 days
024 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 6 ships same day
025 172-9650 Drive motor 36 VDC/2 HP (OBSOLETE) $2,544.91 1 usually ships 1-5 days
026 172-7731 Gearbox (OBSOLETE) $2,754.33 1 usually ships 1-5 days
027 172-7732 End plate (OBSOLETE) $503.58 1 usually ships 1-5 days
028 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 10 ships same day
029 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
030 272-1658 Screw 1/4-28 X 1-1/4 socket head $11.75 6 usually ships 1-5 days
031 272-5257 Bolt 3/8-16 x 3/4 hex head lock $12.31 6 usually ships 1-5 days
032 172-9653 Splash guard (OBSOLETE) $26.14 1 usually ships 1-5 days
