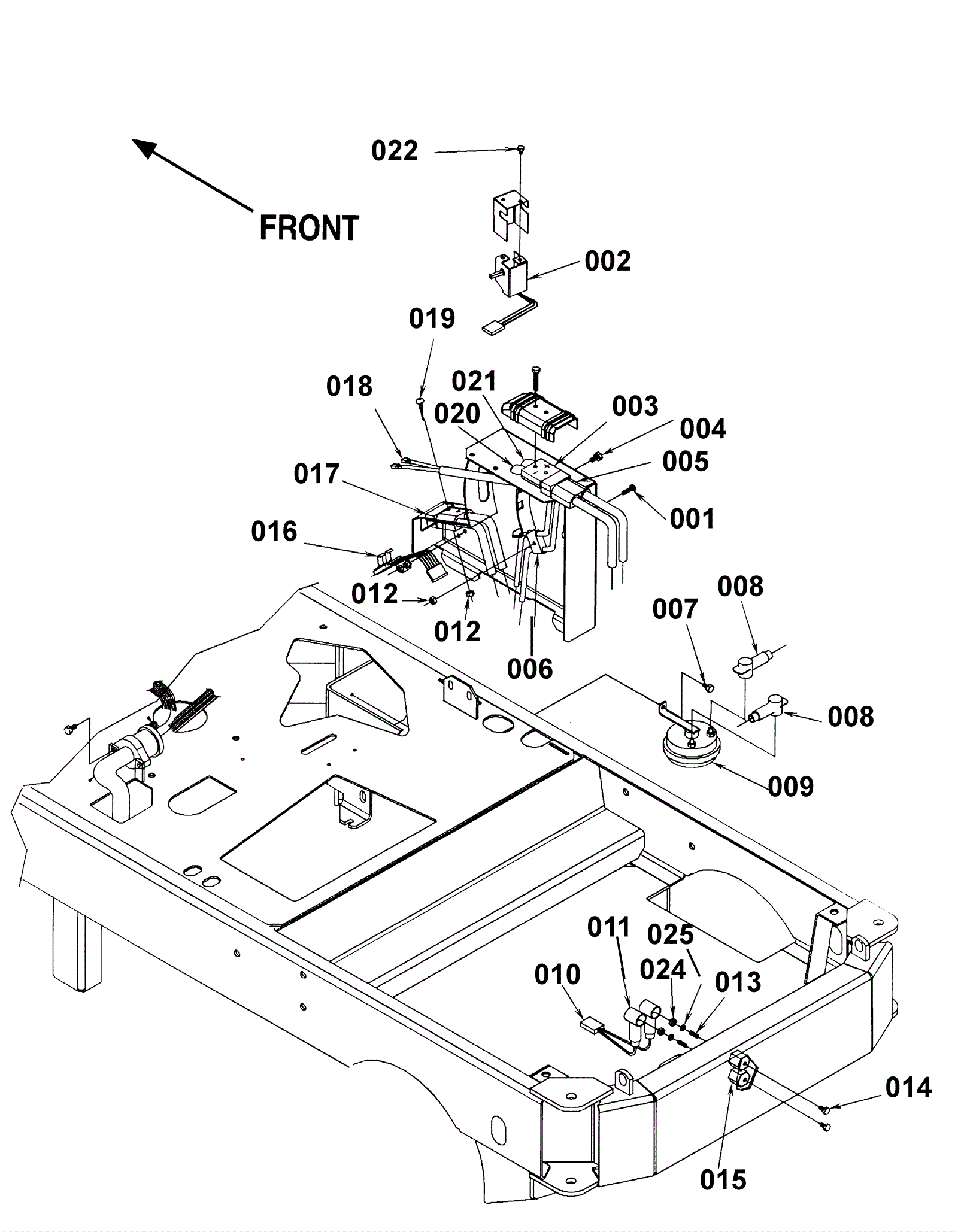

HYDRO 3800B-RIDER Electrical System 1

#PartDescriptionPriceReqNotesAvailability
001 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 2 ships same day
002 172-9453 Electronic throttle (OBSOLETE) $623.62 1 usually ships 17-28 days
003 162-5031 175amp charger plug (gray) SB175 $7.19 1 ships same day
004 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
005 172-9260 Connector Assembly $291.39 1 usually ships 1-5 days
006 172-9600 Clamp (OBSOLETE) $7.92 2 usually ships 1-5 days
007 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 1 ships same day
008 172-9147 Terminal insulator $13.76 2 ships same day
010 172-9601 Pigtail wire assembly (OBSOLETE) $27.15 1 usually ships 1-5 days
011 172-8964 Terminal insulator $13.76 2 usually ships 1-5 days
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
013 172-0345 Terminal stud $12.31 2 usually ships 17-28 days
014 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
015 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
016 172-9602 Charger interlock switch $419.43 1 usually ships 1-5 days
017 172-9603 Connector assembly (OBSOLETE) $283.92 1 usually ships 1-5 days
018 172-9604 Cord assembly (OBSOLETE) $135.17 1 usually ships 1-5 days
019 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
020 172-9605 Cable assembly (OBSOLETE) $109.05 1 usually ships 1-5 days
021 172-9606 Cable assembly (OBSOLETE) $112.82 1 usually ships 1-5 days
022 272-1628 Screw 5mm X .08 X 6mm pan head phillips $15.48 2 usually ships 1-5 days
023 172-8828 Battery cable $48.18 5 ships same day
024 181-0009 45 degree male adapter barb $16.95 2 usually ships 1-5 days
025 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
N/S 172-8829 Battery terminal clamp $29.16 12 usually ships 1-5 days
