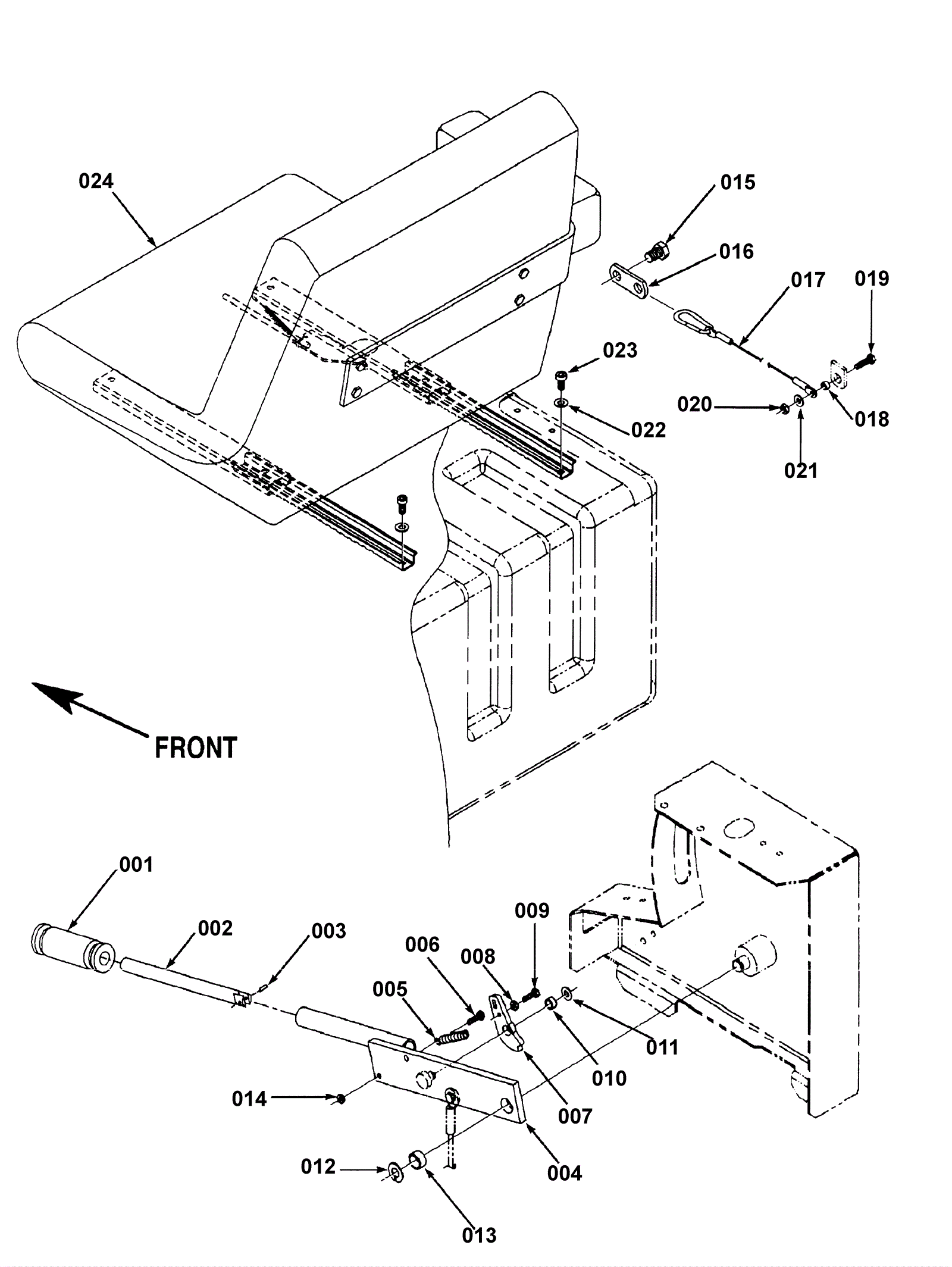

HYDRO 3800B-RIDER Seat Control System

#PartDescriptionPriceReqNotesAvailability
001 172-8147 Handle grip $16.50 1 usually ships 1-5 days
003 172-4051 Spring pin $9.27 1 usually ships 1-5 days
004 172-9542 Lever (OBSOLETE) $45.14 1 usually ships 1-5 days
005 172-9543 Extension spring (OBSOLETE) $6.89 1 usually ships 1-5 days
006 999-0570 Screw 10-24 x 1 1/4 pan head phillips stainless steel $0.99 1 ships same day
007 172-9544 Pawl (OBSOLETE) $47.56 1 usually ships 1-5 days
009 999-1178 Bolt 10-24 x 3/4 hex head stainless steel $0.99 1 ships same day
010 172-2585 Bearing $9.90 1 usually ships 1-5 days
011 172-4033 3/8 inch retaining ring $10.85 1 usually ships 17-28 days
012 172-4038 Retaining ring $10.85 1 usually ships 1-5 days
013 N/A Not available Call for price 1 (Sleeved bearing) (please order 172-0069) usually ships 3-26 days
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
015 999-0281 Bolt 1/2-13 x 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
016 172-9545 Strap $37.75 1 usually ships 1-5 days
017 172-9546 Cable Assembly $67.65 1 usually ships 1-5 days
018 172-0186 Bushing $13.76 1 usually ships 1-5 days
019 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
020 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
021 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
022 999-0412 Washer #8 SAE flat $0.99 4 ships same day
023 272-1644 Bolt 5/16-18 x 5/8 socket head $12.31 4 usually ships 1-5 days
024 172-9547 Seat $1,225.03 1 usually ships 1-5 days
N/S 172-8800 Seat switch $83.60 1 usually ships 1-5 days
