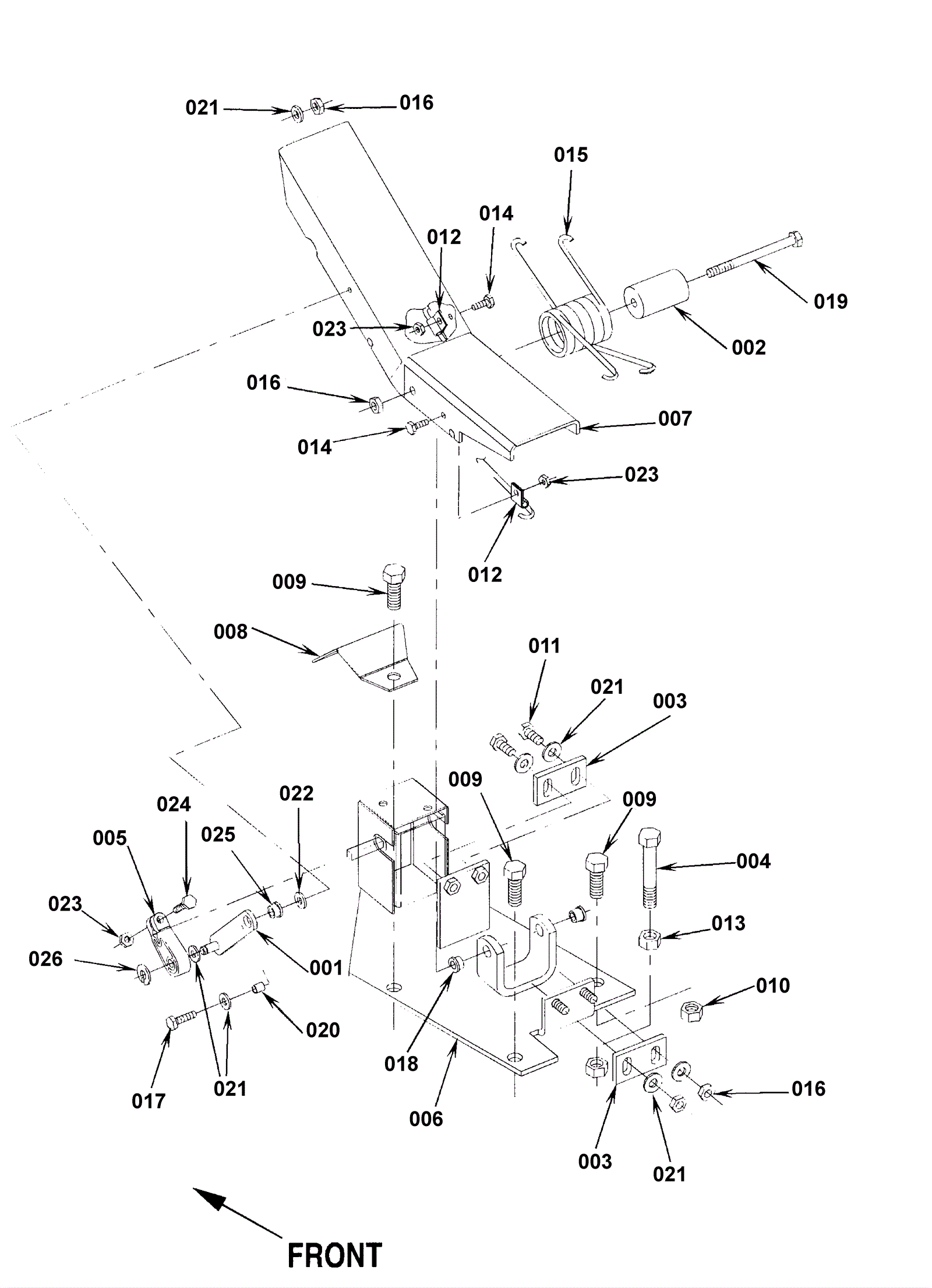

HYDRO 3800B-RIDER Control System - 2

#PartDescriptionPriceReqNotesAvailability
001 172-8819 Weldment link $131.95 1 usually ships 1-5 days
002 172-8817 Nylon spacer $44.58 1 usually ships 1-5 days
003 172-8816 Side plate $92.28 2 usually ships 1-5 days
004 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
005 172-8818 Throttle lever $13.95 1 usually ships 1-5 days
006 172-9537 Peddle mount weldment (OBSOLETE) $348.08 1 usually ships 1-5 days
007 172-9538 Throttle pedal weldment (OBSOLETE) $97.42 1 usually ships 1-5 days
008 172-9539 Wire way (OBSOLETE) $5.94 1 usually ships 1-5 days
009 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 3 ships same day
010 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
011 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 2 usually ships 1-5 days
012 172-8814 P clamp $10.85 2 usually ships 1-5 days
013 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
014 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
015 172-8824 Idler spring $38.07 2 usually ships 1-5 days
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
017 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
018 172-4120 Flanged bearing $15.48 2 usually ships 1-5 days
019 999-0683 Bolt 1/4-20 x 3 hex head grade 5 zinc plated $1.05 1 ships same day
020 172-0162 Bushing $13.76 1 usually ships 1-5 days
021 999-0123 Washer 1/4 SAE flat zinc plated $0.99 7 ships same day
022 172-0548 Washer 17/64 x 47/64 flat stainless steel $10.85 1 usually ships 17-28 days
023 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
024 272-1453 Bolt 10-24 x 7/8 hex head $10.52 1 usually ships 1-5 days
025 172-8815 Flanged bearing $13.76 1 usually ships 17-28 days
026 172-0392 Retaining ring $10.85 1 usually ships 17-28 days
