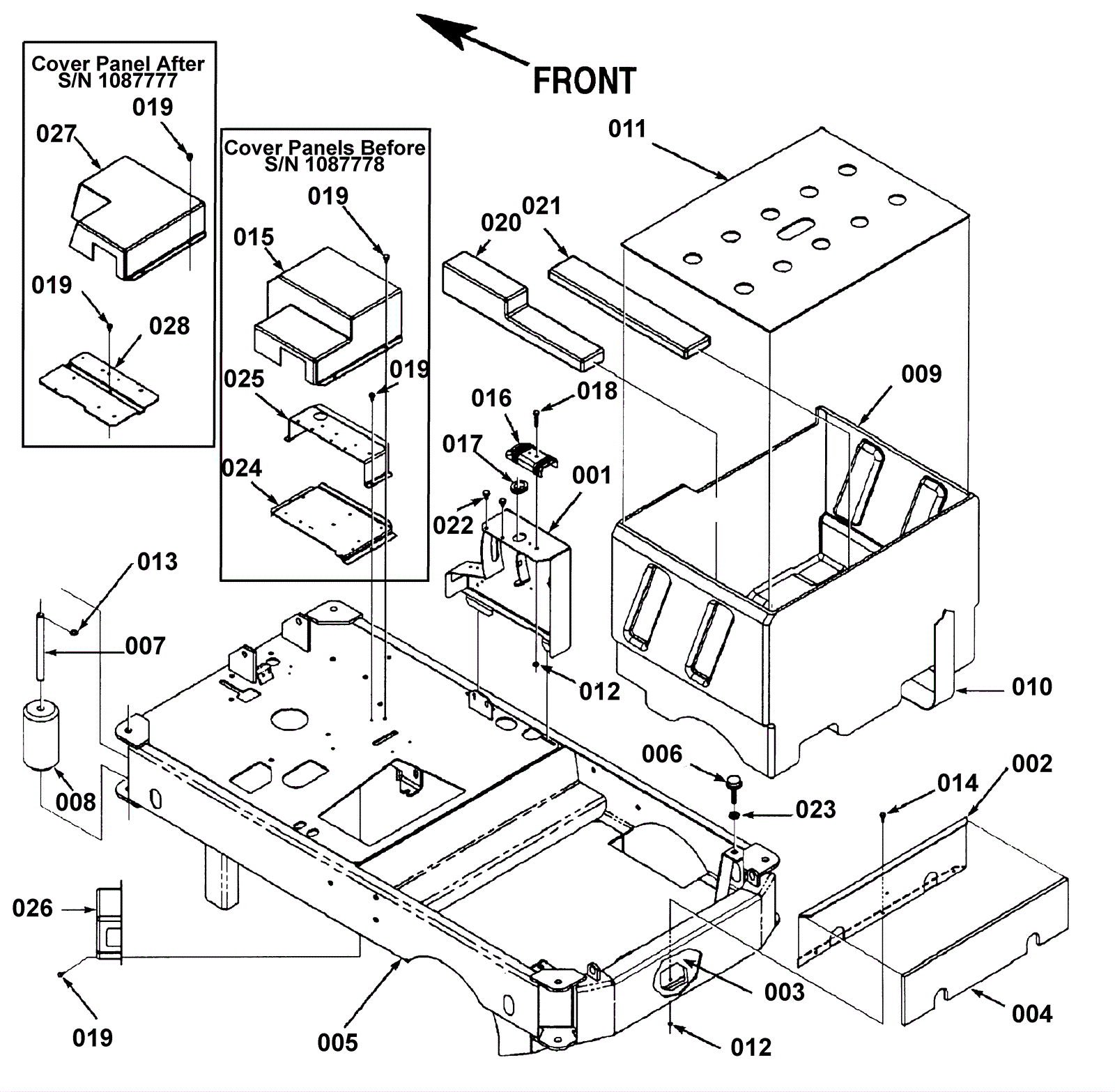

HYDRO 3800B-RIDER Chassis System

#PartDescriptionPriceReqNotesAvailability
001a 172-9501 Side panel (BR 1000) (OBSOLETE) $147.31 1 BR 1000 usually ships 1-5 days
001b 172-9502 Side panel (3800) (OBSOLETE) $464.51 1 3800 usually ships 1-5 days
002 172-9503 Baffle plate (OBSOLETE) $64.15 1 usually ships 1-5 days
003 172-9504 Accoustical foam (OBSOLETE) $20.76 1 usually ships 1-5 days
004 172-9505 Accoustical foam (OBSOLETE) $22.01 1 usually ships 1-5 days
005 172-9506 Chassis (OBSOLETE) $1,523.02 1 usually ships 1-5 days
006 172-9507 Leveler $5.39 2 usually ships 1-5 days
007 172-9508 Pin $46.00 4 usually ships 1-5 days
008 172-9509 Roller bumper $111.99 4 usually ships 1-5 days
009 172-9510 Battery holder (OBSOLETE) $627.26 1 usually ships 1-5 days
010 172-9511 Lift strap (OBSOLETE) $143.50 2 usually ships 1-5 days
011 172-9512 Battery cover (OBSOLETE) $142.47 1 usually ships 1-5 days
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 5 ships same day
013 172-9513 Retaining ring $12.31 8 usually ships 1-5 days
014 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 3 usually ships 12-18 days
015 N/A Not available Call for price 1 (Not Available) Electrical cover usually ships 3-26 days
016 172-9515 Quick disconnect cover (OBSOLETE) $22.33 1 usually ships 1-5 days
017 172-8310 Grommet $12.31 1 usually ships 1-5 days
018 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
019 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 8 ships same day
020 172-9517 Battery spacer $29.16 2 usually ships 1-5 days
021 172-9518 Battery spacer $23.01 1 usually ships 1-5 days
022 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 2 ships same day
023 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
024 172-9519 Electrical panel (before S/N 1087778) (OBSOLETE) $28.51 1 usually ships 1-5 days
025 172-9520 Electrical panel (before S/N 1087778) (OBSOLETE) $23.05 1 usually ships 1-5 days
026 172-9521 Solenoid panel cover (OBSOLETE) $38.02 1 usually ships 1-5 days
027 172-9522 Electrical cover (after S/N 1087777) (OBSOLETE) $236.02 1 usually ships 1-5 days
028 172-9523 Electrical panel (after S/N 1087777) (OBSOLETE) $39.20 1 usually ships 1-5 days
