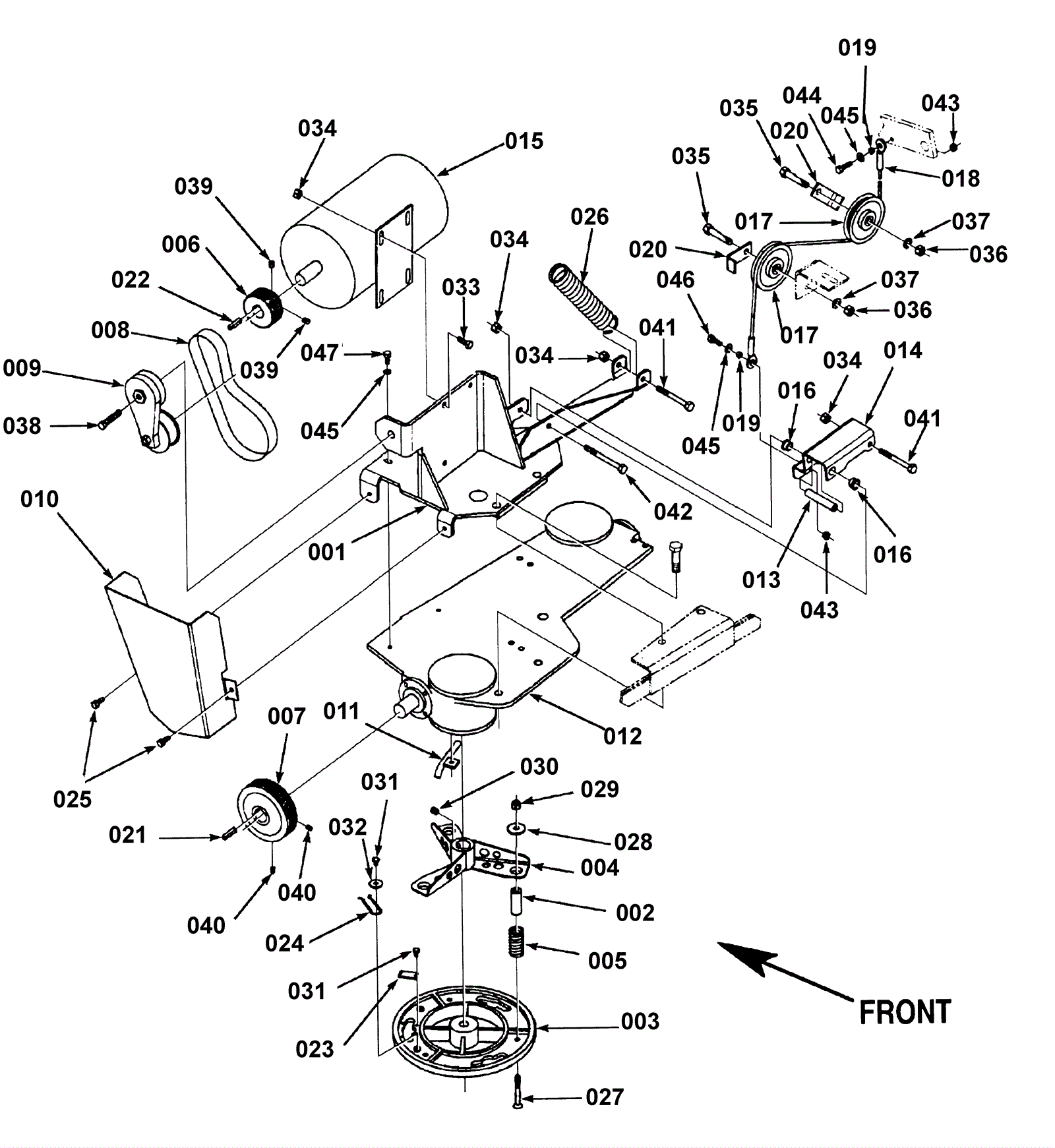

HYDRO 3800B-RIDER Brush Drive System - 2

#PartDescriptionPriceReqNotesAvailability
001 172-9473 Motor mount (OBSOLETE) $251.26 1 usually ships 1-5 days
002 172-9474 Spacer $13.76 6 usually ships 17-28 days
003 172-9475 Brush holder (OBSOLETE) $365.75 2 usually ships 17-28 days
004 172-9476 Drive adaptor $237.05 2 usually ships 17-28 days
005 172-9477 Spring $18.39 6 usually ships 17-28 days
006 172-9478 Poly V sheave (OBSOLETE) $285.63 1 usually ships 1-5 days
007 172-9479 Poly V sheave (OBSOLETE) $223.81 1 usually ships 1-5 days
008 172-9480 Poly V Belt $98.68 1 usually ships 1-5 days
009 172-9481 Belt idler $250.36 1 usually ships 1-5 days
010 172-9482 Belt guard (OBSOLETE) $89.89 1 usually ships 1-5 days
011 172-0629 Tube $227.15 2 usually ships 1-5 days
012 172-9483 Gearcase (OBSOLETE) $2,879.71 1 usually ships 1-5 days
013 172-9485 Pivot $13.20 1 usually ships 17-28 days
014 172-9486 Spring arm (OBSOLETE) $112.93 1 usually ships 1-5 days
015 172-0532 Motor 3hp $2,444.97 1 usually ships 1-5 days
016 172-9497 Flanged bearing $13.76 2 usually ships 17-28 days
017 172-9498 Pulley (OBSOLETE) $19.62 2 usually ships 1-5 days
018 172-9499 Cable $36.85 1 usually ships 1-5 days
019 172-0186 Bushing $13.76 2 usually ships 1-5 days
020 172-9500 Cable locating strap (OBSOLETE) $20.54 2 usually ships 1-5 days
021 172-0437 Square keyway $10.85 1 usually ships 17-28 days
022 172-0348 Square keyway $11.69 1 usually ships 1-5 days
023 172-0155 Stop plate $12.31 2 usually ships 17-28 days
024 175-2612 Spring clip $4.88 2 usually ships 10-16 days
025 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 2 ships same day
026 172-9329 Extension spring (OBSOLETE) $19.48 2 usually ships 1-5 days
027 272-1635 Bolt 5/16-18 X 2 1/4 stainless steel $12.05 6 usually ships 17-28 days
028 999-0756 Washer 3/8 x 1 1/4 flat stainless steel $13.40 6 ships same day
029 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
030 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
031 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 6 ships same day
032 999-0588 Washer 7/8 flat stainless steel $11.44 3 ships same day
033 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 3 ships same day
034 172-0178 Hose with cuffs $34.14 6 ships same day
035 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated $1.19 2 ships same day
036 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
037 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
038 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
039 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 2 ships same day
040 272-1454 Screw 1/4-20 X 3/8 socket set lock $12.31 2 usually ships 1-5 days
041 272-1637 Bolt 5/16-18 X 3 $12.31 2 usually ships 1-5 days
042 272-1638 Bolt 5/16-18 X 3-1/2 $12.31 1 usually ships 17-28 days
043 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
044 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
045 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
046 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 usually ships 12-18 days
047 272-1465 Screw 1/4-20 X 5/8 hex head lock $12.31 2 usually ships 1-5 days
N/S 172-9484 Ouput shaft assembly (OBSOLETE) $397.39 usually ships 1-5 days
N/S 172-9488 Brush spring (OBSOLETE) $24.97 1 usually ships 1-5 days
N/S 172-9489 Bearing (OBSOLETE) $23.05 1 usually ships 1-5 days
N/S 172-9490 Bearing (OBSOLETE) $50.82 1 usually ships 1-5 days
N/S 172-9491 Complete commutator cover assembly (OBSOLETE) $325.51 1 usually ships 1-5 days
N/S 172-9492 Commutator cover (OBSOLETE) $115.24 1 usually ships 1-5 days
N/S 172-9493 Complete brush ring assembly (OBSOLETE) $293.95 1 usually ships 1-5 days
N/S 172-9494 Pulley cover (OBSOLETE) $100.98 1 usually ships 1-5 days
N/S 172-9495 Complete stator assembly (OBSOLETE) $428.11 1 usually ships 1-5 days
N/S 172-9496 Complete armature assembly (OBSOLETE) $1,305.54 1 usually ships 1-5 days
