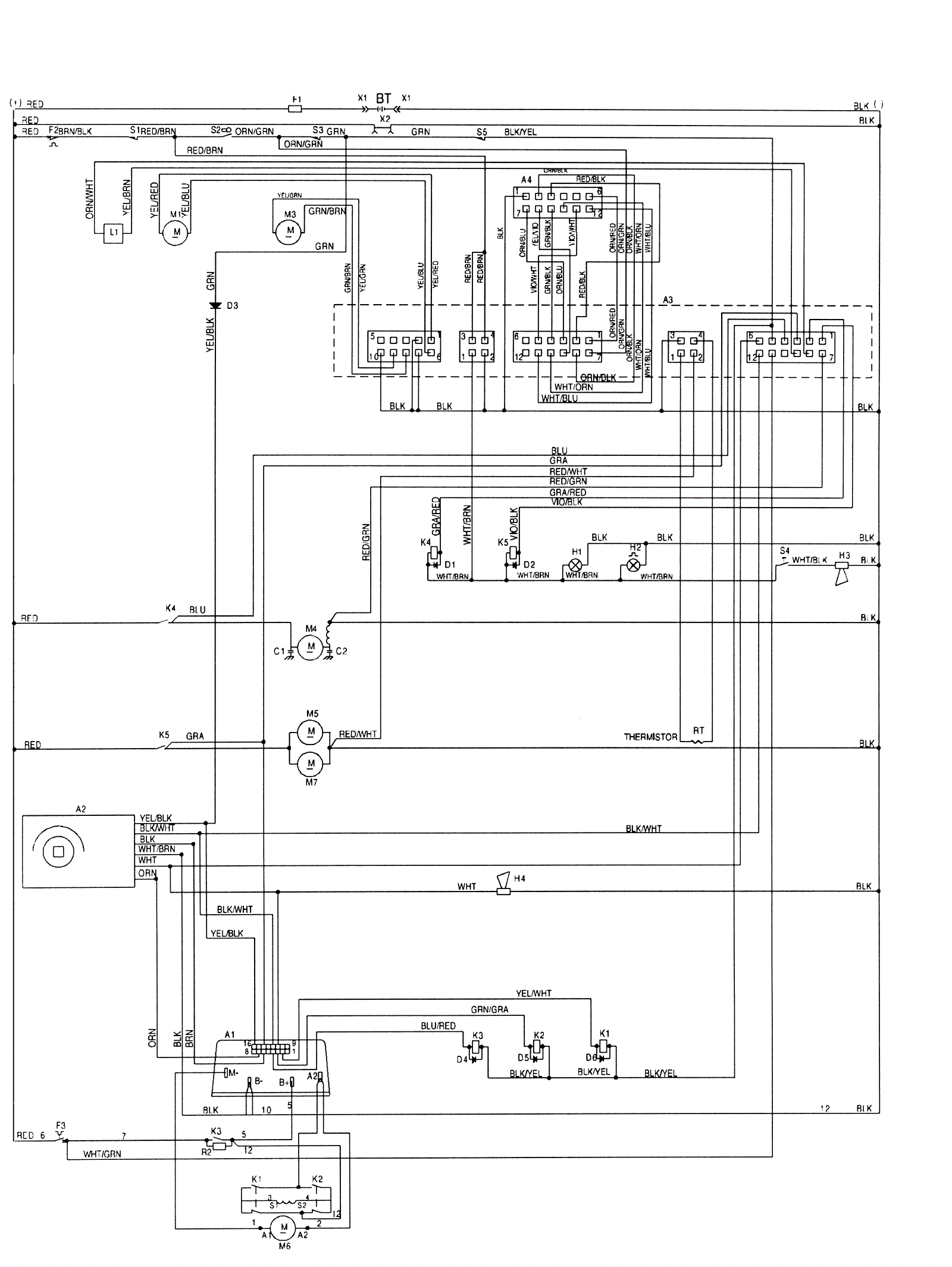

HYDRO 3200B-CYC Cylindrical Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
A1 172-9257 Speed Control (OBSOLETE) $1,125.63 1 usually ships 1-5 days
A3 172-9234 Control box assembly (OBSOLETE) $1,311.23 1 usually ships 1-5 days
A4 172-9241 Display PCB assembly $539.55 1 usually ships 1-5 days
C1 N/A Not available Call for price 1 (not available) usually ships 3-26 days
C2 N/A Not available Call for price 1 (not available) usually ships 3-26 days
D1 172-0236 Diode rectifier assembly $32.69 1 usually ships 17-28 days
D2 172-0236 Diode rectifier assembly $32.69 1 usually ships 17-28 days
D3 172-9259 Diode $30.13 1 usually ships 1-5 days
D4 172-9266 Diode Assembly $21.19 1 usually ships 1-5 days
D5 172-9266 Diode Assembly $21.19 1 usually ships 1-5 days
D6 172-9266 Diode Assembly $21.19 1 usually ships 1-5 days
F1 172-9245 200 Amp fuse clamp $121.00 1 usually ships 1-5 days
F2 172-2160 10amp circuit breaker $77.12 1 usually ships 17-28 days
F3 172-8827 45 Amp circuit breaker $308.99 1 usually ships 1-5 days
H1 172-9152 Headlight kit (OBSOLETE) $414.54 1 usually ships 1-5 days
H2 172-9150 Beacon kit (OBSOLETE) $412.17 1 usually ships 1-5 days
H4 172-9145 Back-Up alarm kit (OBSOLETE) $351.79 1 usually ships 1-5 days
K1 172-9258 Contactor $803.33 1 usually ships 1-5 days
K2 172-9258 Contactor $803.33 1 usually ships 1-5 days
K3 172-9264 Main contactor $448.79 1 usually ships 1-5 days
K4 172-2805 36V contactor $100.10 1 ships same day
K5 172-2805 36V contactor $100.10 1 ships same day
L1 172-9356 Solenoid valve $865.00 1 usually ships 17-28 days
M1 172-9188 Motor, Actuator $918.74 1 usually ships 1-5 days
M3 172-8921 Actuator $551.66 1 usually ships 17-28 days
M4a 172-8007 36V 3 stage vacuum motor assembly $248.66 1 usually ships 1-5 days
M4b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug $134.20 1 usually ships 1-5 days
M5 172-9300 36V motor $1,608.28 1 usually ships 17-28 days
M6 172-9389 Motor / Wheel assembly (OBSOLETE) $5,799.82 1 usually ships 1-5 days
M7 172-9300 36V motor $1,608.28 1 usually ships 17-28 days
N/S 172-8922 Plastic drive nut $19.98 1 usually ships 17-28 days
N/S 172-9189 Carbon brush set (OBSOLETE) $39.20 1 usually ships 17-28 days
N/S 172-9240 Main wiring harness (OBSOLETE) $455.00 1 usually ships 1-5 days
N/S 991-1224 Plastic covered carbon brush (sold individually) $10.28 2 ships same day
N/S N/A Not available Call for price 1 Carbon brush kit usually ships 3-26 days
R2 172-9265 250 Ohm Resistor $30.80 1 usually ships 1-5 days
S1 172-0235 Switch assembly (OBSOLETE) $183.90 1 usually ships 17-28 days
S2a 172-8847 Key switch (OBSOLETE) $152.82 1 usually ships 1-5 days
S2b 172-8099 Replacement key (OBSOLETE) $22.41 usually ships 17-28 days
S3 172-8800 Seat switch $83.60 1 usually ships 1-5 days
S4 172-9262 Horn switch $34.23 1 usually ships 1-5 days
S5 172-9233 Emergency stop button $268.38 1 usually ships 17-28 days
V 172-9263 Varistor Assembly $42.90 1 usually ships 1-5 days
X1 172-9267 Battery plug assembly (OBSOLETE) $158.21 1 usually ships 1-5 days
X2 172-9268 Charger plug assembly (OBSOLETE) $122.10 1 usually ships 1-5 days
