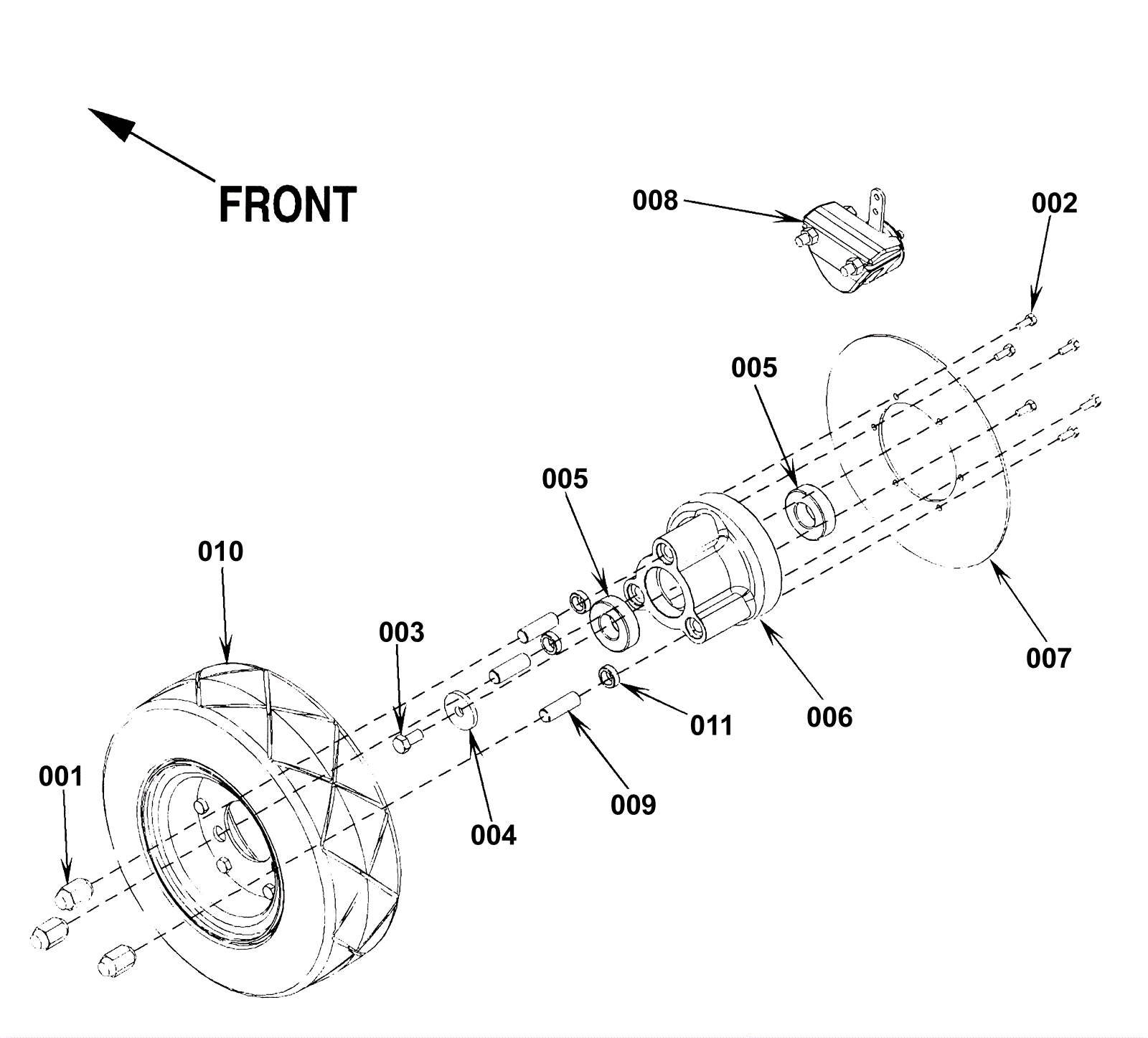

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
272-1610
|
Nut lug |
6 |
|
|
002 |
272-1599
|
Bolt M6 x 15mm hex head nylok |
12 |
|
|
003 |
272-1605
|
Bolt M10-1.5 x 20mm hex head nylon lock |
2 |
|
|
004 |
272-1606
|
Washer flat |
2 |
|
|
005 |
172-9411
|
Ball bearing |
4 |
|
|
006 |
172-9412
|
Finished hub (OBSOLETE) |
2 |
|
|
007 |
172-9413
|
Brake disc |
2 |
|
|
008 |
172-9414
|
Brake left caliper |
1 |
|
|
009 |
172-9416
|
M14-1.5 Stud |
6 |
|
|
010 |
172-9417
|
Wheel assembly (standard) (OBSOLETE) |
2 |
|
|
011 |
172-9419
|
Bushing (OBSOLETE) |
6 |
|
|
N/S |
272-7001
|
Caliper brake (OBSOLETE) |
1 |
|
|
N/S |
172-9176
|
Scrubber wheel assembly (OBSOLETE) |
1 |
|
|
