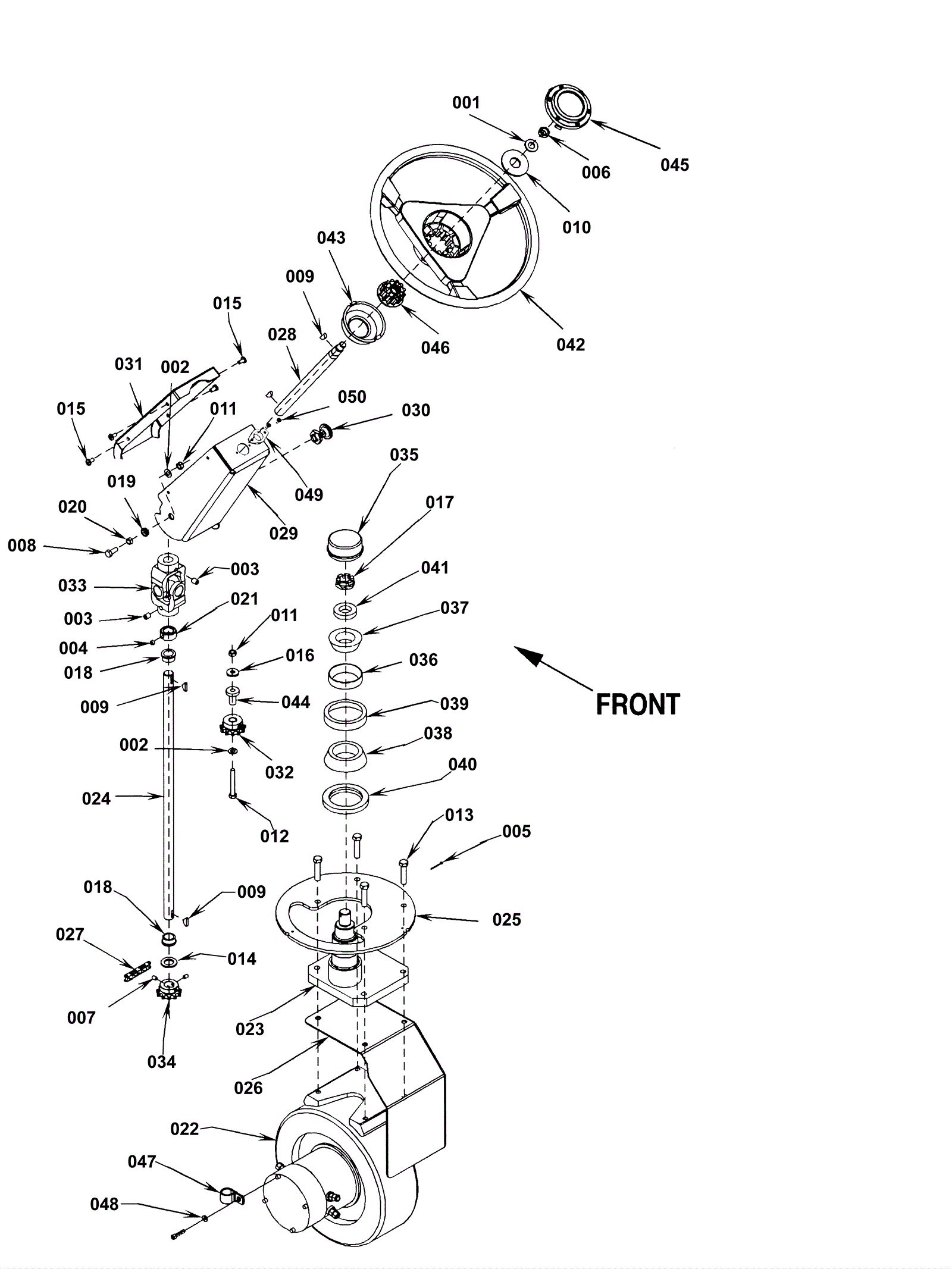

Steering/Frong Wheel System

#PartDescription ReqNotesAvailability
001 999-0187 Washer 1/2 flat plain finish 1
002 999-0412 Washer #8 SAE flat 3
003 272-1469 Solution valve 2
004 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
005 172-9386 Cotter pin 1
006 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
007 272-1454 Screw 1/4-20 X 3/8 socket set lock 2
008 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
009 172-9387 Woodruff key 4
010 999-1363 Washer 7/8 flat stainless steel 1
011 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
012 272-1611 Bolt 8mm-1.25 x 60mm hex head 1
013 272-1612 Bolt 10mm-1.50 x 45mm hex nylon locking 4
014 999-1134 Washer 1 1/4 flat stainless steel 1
015 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 4
016 172-2067 Washer 11/32 x 1/8 flat 1
017 272-1603 Nut 7/8-14 castle 1
018 172-9388 Flanged bearing 2
019 172-8919 Flanged bearing 2
020 172-4008 Bushing 2
021 172-0115 Shaft collar 1
022 172-9389 Motor / Wheel assembly (OBSOLETE) 1
023 172-9395 Spindle weldment (OBSOLETE) 1
024 172-9059 Lower steering shaft (OBSOLETE) 1
025 172-9396 Steering plate (OBSOLETE) 1
026 172-9397 Splash guard (OBSOLETE) 1
027 172-9398 Roller chain 1
028 172-9072 Upper steering shaft 1
029 172-9399 Steering column (OBSOLETE) 1
030 172-9073 Latch assembly 1
031 172-9400 Upper column cover (OBSOLETE) 1
032 172-9401 Sprocket assembly 1
033 172-9074 Universal joint 1
034 172-8093 Sprocket 1
035 572-4243 Cap 1
036 172-9404 Cup bearing 1
037 172-9405 Cone bearing 1
038 172-9406 Cone bearing 1
039 172-9407 Cup bearing 1
040 172-9408 Radial lip seal 1
041 172-9409 Bushing 1
042 172-9075 Steering wheel 1
043 172-9076 Cup 1
044 172-9410 Flanged bushing 1
045 172-9077 Cap 1
046 172-9078 Steering wheel adapter 1
047 272-1613 P clamp 1
048 999-0006 Washer 3/16 flat zinc plated 1
049 172-9057 Bushing 1
050 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling 2
N/S 172-9401 Sprocket assembly 1
N/S 172-0363 Grease fitting 1
N/S 172-9391 Motor (OBSOLETE) 1
N/S 172-9392 Carbon brush set (OBSOLETE) 1
N/S 172-9393 Seal kit (OBSOLETE) 1
N/S 172-9390 Oil seal (OBSOLETE) 1
N/S 172-9394 Drive wheel (OBSOLETE) 1
N/S 172-0048 Bearing 2
