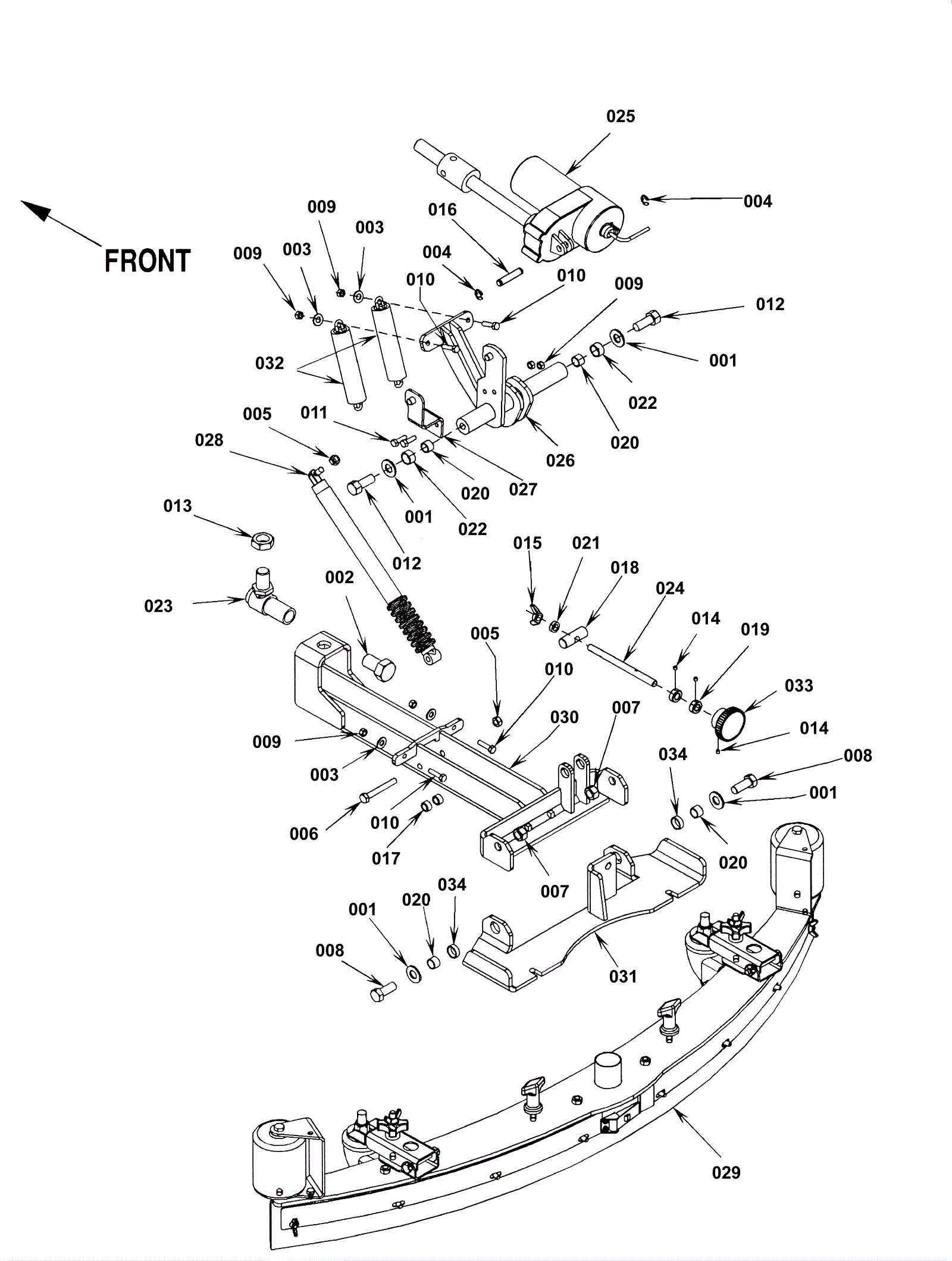

Squeegee System

#PartDescription ReqNotesAvailability
001 999-0187 Washer 1/2 flat plain finish 4
002 272-1463 Bolt 3/4-16 x 1 1/4 hex head 1
003 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
004 172-4033 3/8 inch retaining ring 2
005 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
006 272-1611 Bolt 8mm-1.25 x 60mm hex head 1
007 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
008 272-1615 Bolt 12mm-1 3/4 x 30mm hex head 2
009 999-0497 Nut M6-1 nylon insert lock stainless steel 6
011 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
012 272-1617 Bolt 12mm-1 3/4 x 30mm hex nylon lock 2
013 272-1618 Nut 3/4-16 hex nylon lock thin 1
014 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 3
015 999-0660 Nut 3/8-16 wing stainless steel 1
016 172-8918 Pin 1
017 172-2631 Bushing 2
018 172-0070 Pin 1
019 172-0071 Collar 2
020 172-0072 Bushing 4
021 172-9375 Bushing (OBSOLETE) 1
022 N/A Not available 2 (Sleeved bearing) (please order 172-0069)
023 172-8065 Ball joint 1
024 172-9377 Adjuster Rod (OBSOLETE) 1
025 172-8921 Actuator 1
026 172-9379 Arm weldment (OBSOLETE) 1
027 172-9380 Half yoke welemdnt 13
028 172-9381 Gas spring assembly (OBSOLETE) 1
029 172-9361 Squeegee assembly (OBSOLETE) 1
030 172-9383 Mount weldment (OBSOLETE) 1
031 172-9384 Squeegee mount weldment 1
032 172-9385 Chain assembly 2
033 172-0078 Knob 1
034 172-0079 Sleeve bearing (OBSOLETE) 2
N/S 172-8922 Plastic drive nut 1
N/S N/A Not available 1 Carbon brush kit
