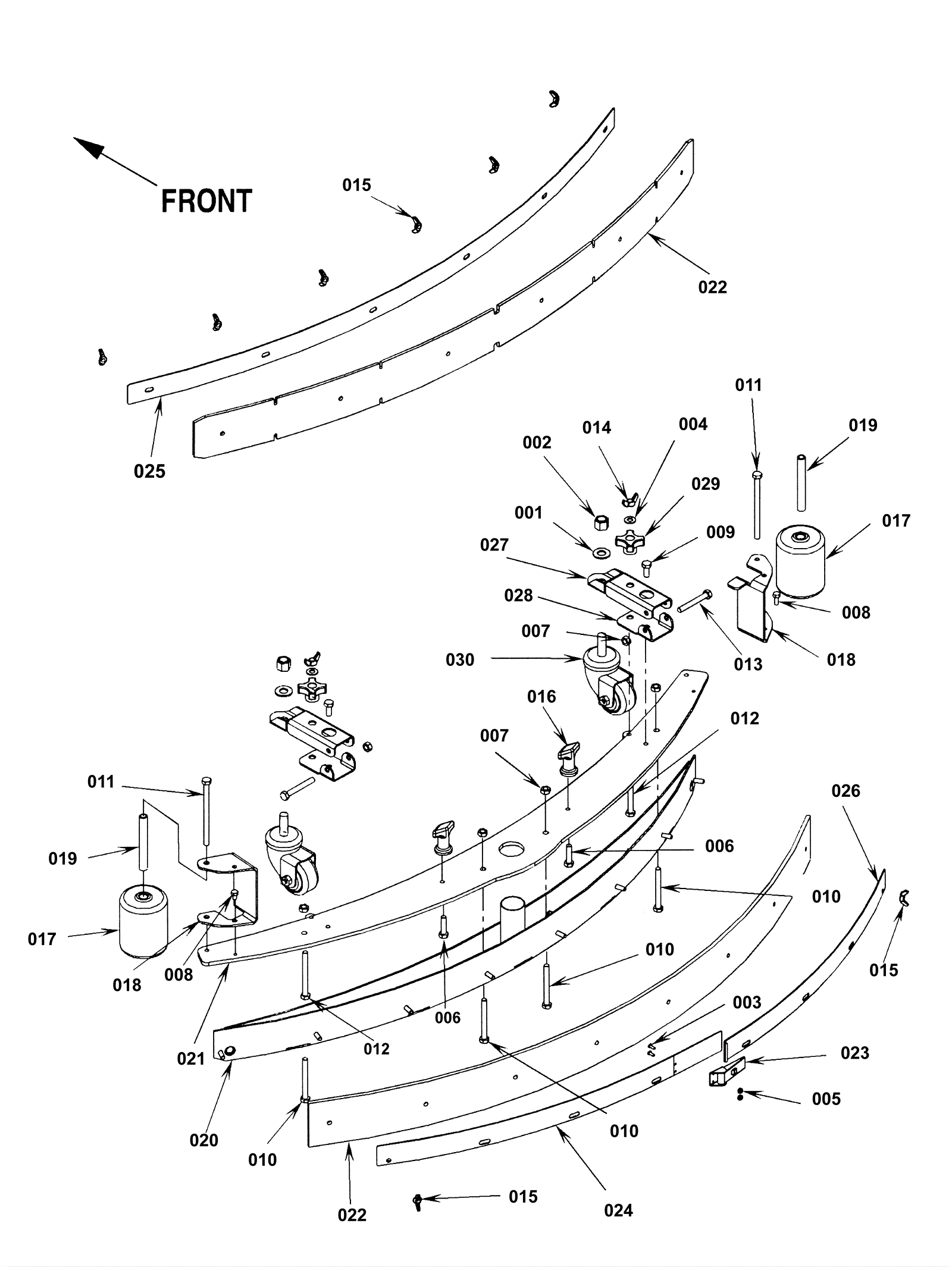

Squeegee Assembly

#PartDescription ReqNotesAvailability
000 172-9361 Squeegee assembly (OBSOLETE) 1
001 999-0187 Washer 1/2 flat plain finish 2
002 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
003 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
005 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
006 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
007 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
008 272-1619 Bolt 6mm - 1 x 10mm hex head stainless steel 2
009 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
010 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 4
011 999-0782 Screw M8-1.25 x 120mm hex head 2
012 272-1584 Bolt 5/16-18 X 3 1/4 hex head stainless steel 2
013 999-1368 Screw M8-1.25 x 60mm hex head stainless steel 2
014 272-1585 Nut 5/16-18 wing stainless steel 2
015 999-0603 Nut 1/4-20 wing stainless steel 8
016 172-4099 Nut 5/16-18 thumb 2
017 172-9157 Roller wheel 2
018 172-9363 Bracket 2
019 172-9364 Bushing 2
020 172-9365 Tool weldment 1
021 172-9366 Plate 1
022a 172-9185 Squeegee blade kit standard 1
023 172-0094 Latch 1
024 172-9369 Left rear strap 1
025 172-9370 Front strap 1
026 172-9371 Right rear strap 1
027 172-9372 Bracket 2
028 272-4009 Bracket 2
029 172-2150 Knob 2
030 172-9374 Caster wheel 2
