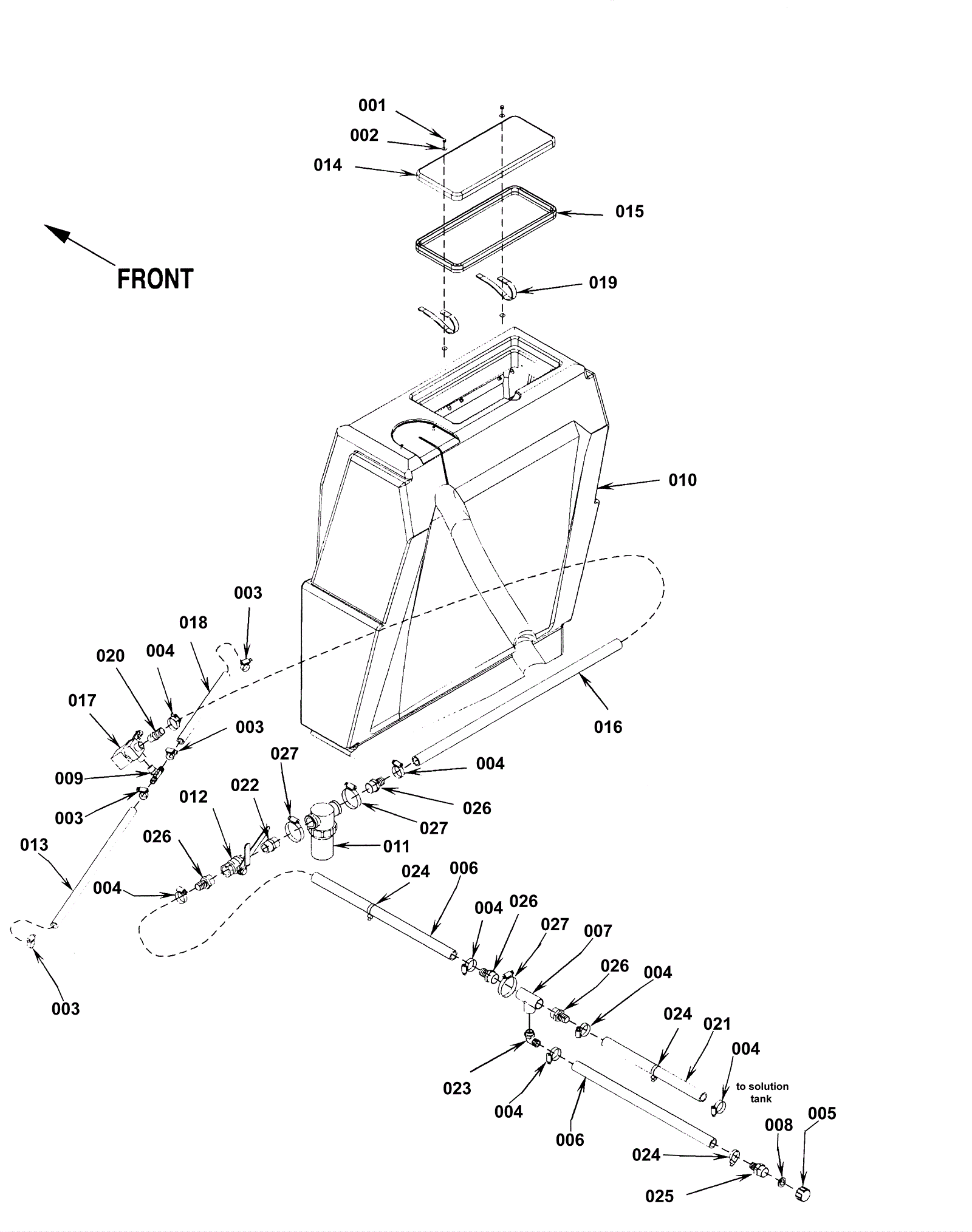

Solution System

#PartDescription ReqNotesAvailability
001 172-0513 Pop rivet 4
002 172-0253 Washer 1/8 x 23/64 flat stainless steel 8
003 997-2002 Hose clamp #6 4
004 997-2005 Hose clamp 7
005 172-0254 Nylon pipe cap 1
006 172-9344 Hose 2
007 172-0213 Tee 1
008 172-0197 Rubber washer 1
009 172-8924 Barb tee 1
010a 172-9345 Solution tank (OBSOLETE) 1
011 172-9347 Filter 1
012a 172-9348 Flow control valve assembly (OBSOLETE) 1
012b 172-9349 Valve 1
012c 172-9350 FCV handle (OBSOLETE) 1
013 172-9351 Spiral hose 1
014 172-0199 Cover 1
015 172-9353 Gasket 1
016a 172-9354 Spiral hose for disc models 1
016b 172-9355 Sprial hose for cylindrical models 1
017 172-9356 Solenoid valve 1
018 172-2815 Main solution hose 1
019 172-9230 Retaining strap 2
020 172-9358 Adapter barb 1
021 172-9359 Spiral hose 1
022 172-9360 Hex nipple (OBSOLETE) 1
023 172-2322 90 degree elbow barb 3/4 x 3/8 1
024 997-2102 Cable tie 3
025 170-0264 Hose barb 1
026 172-0261 Barb adapter 4
027 997-2000 Hose clamp 3
