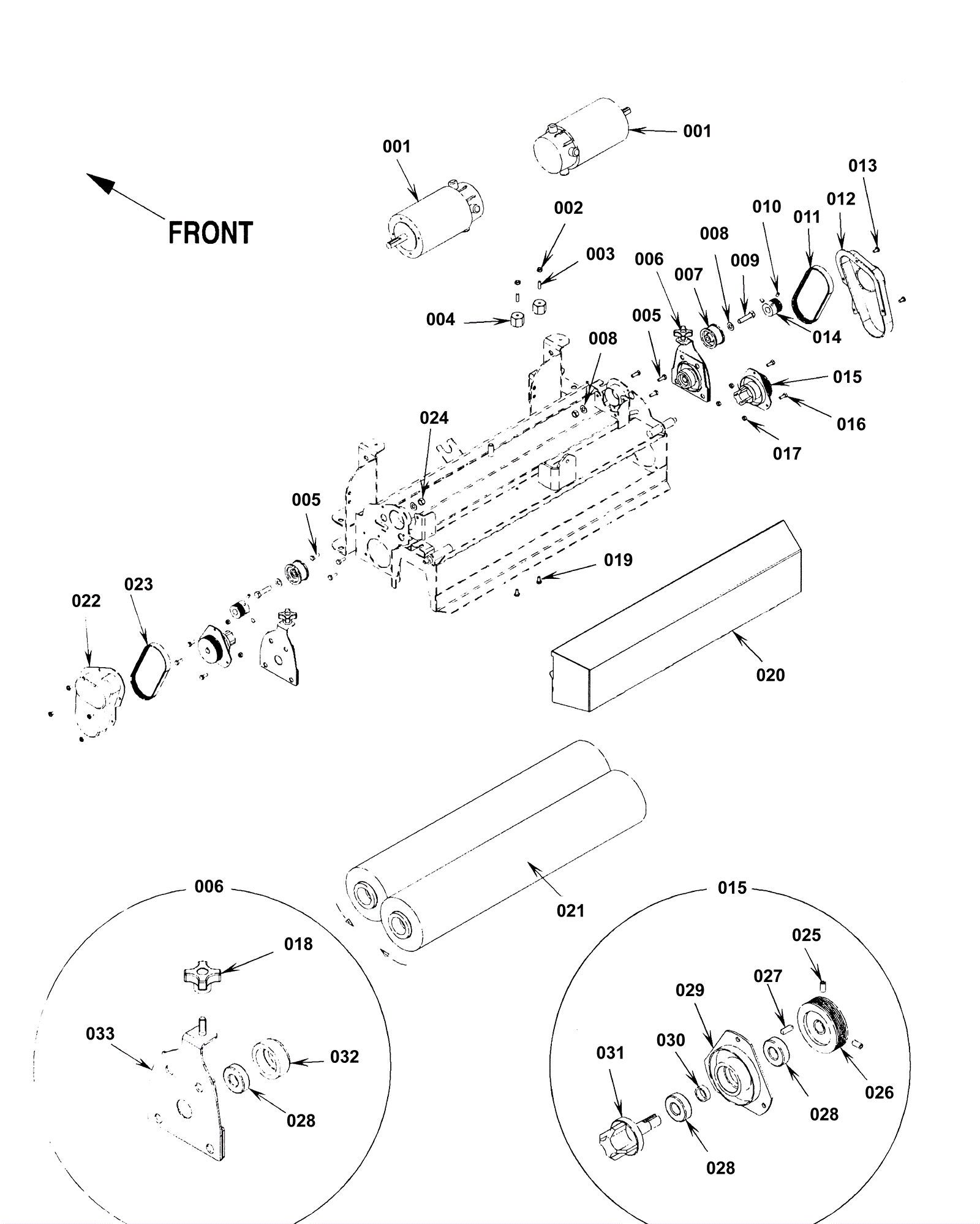

Cylindrical Scrub System Drive

#PartDescription ReqNotesAvailability
001a 172-9300 36V motor 2
001b N/A Not available 1 (not available)
001c 172-1033 F.E. Bearing 1
001d 172-9303 Brush cap assembly (OBSOLETE) 1
001e 172-9304 Carbon brush (sold individually) 4
002 272-1526 Deck kit 2810D 2
003 172-0345 Terminal stud 2
004 172-0103 Electrical mount 2
005 272-1596 Bolt 1/4-20 x 3/4 hex head lock 6
006 172-3373 Idler end assembly 2
007 172-8927 Belt idler 2
008 999-0120 Washer 3/8 SAE flat 4
009 272-1624 Bolt M10-1.5 x 40mm hex 2
010 272-1454 Screw 1/4-20 X 3/8 socket set lock 4
011 172-8932 Poly-V belt 1
012 172-8929 Right belt guard 1
013 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc 8
014 172-8928 Poly-v sheave 2
015 172-8933 Drive end assembly 2
016 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 6
017 999-0497 Nut M6-1 nylon insert lock stainless steel 6
018 172-2150 Knob 2
019 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
020 172-9306 Hopper weldment (OBSOLETE) 1
022 172-8930 Left belt guard 1
023 172-8931 Poly V belt 1
024 999-0960 Nut 10-24 hex stainless steel 2
025 181-0003 Screw 1/4-20 x 1/2 socket set lock 4
026 172-8959 Poly-v sheave 2
027 172-8956 Square keyway 2
028 172-4656 Ball bearing 6
029 172-8958 Bearing plate weldment (OBSOLETE) 2
030 172-8957 Spacer 2
031 172-8960 Spindle 2
032 172-1838 Hub 2
033 172-3373 Idler end assembly 2
