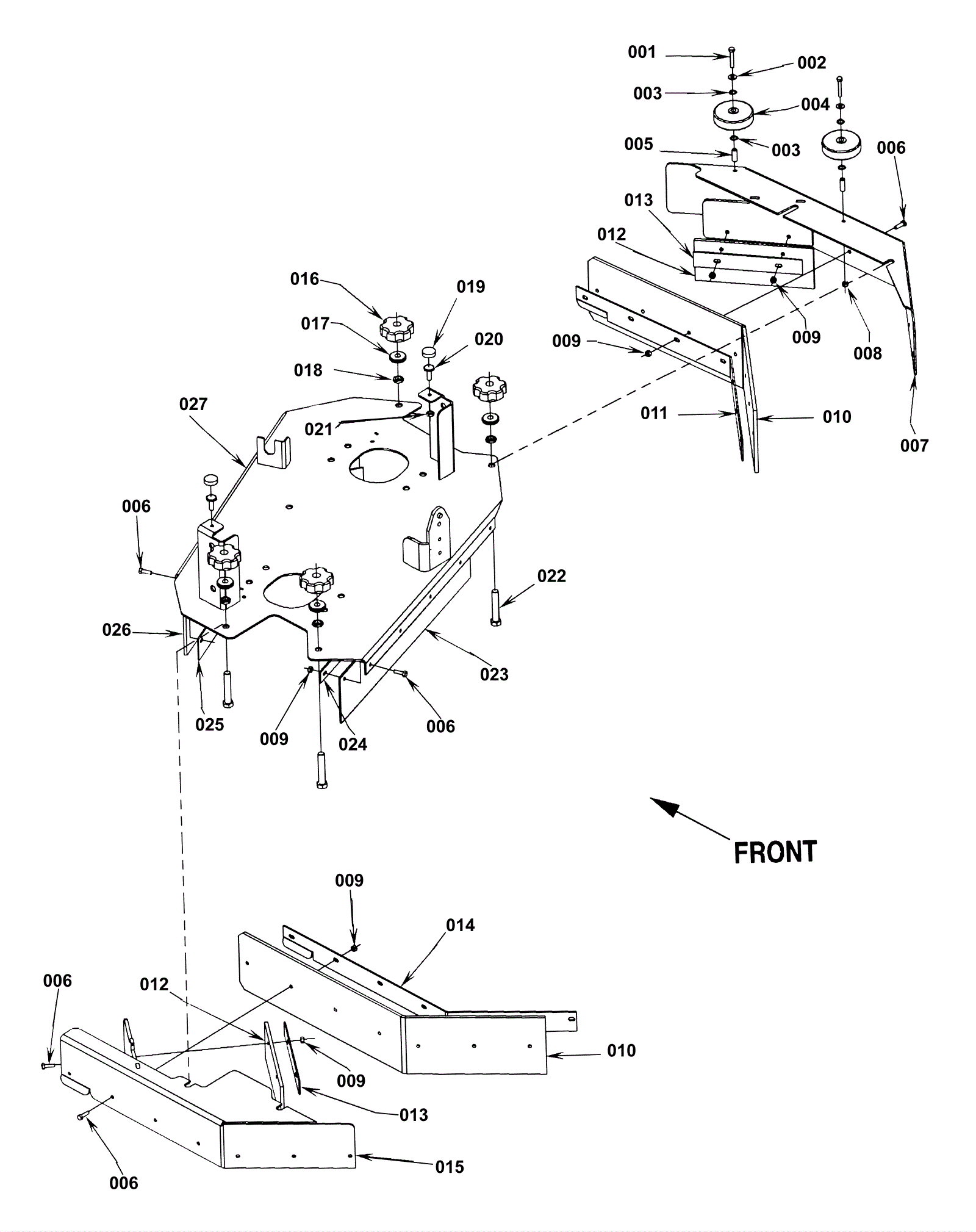

HYDRO 3200B-DISK Disc Scrub Deck/Skirts

#PartDescriptionPriceReqNotesAvailability
000 172-9271 Right skirt assembly (OBSOLETE) $326.70 1 (Includes items 1 - 13) usually ships 1-5 days
001 999-1147 Bolt M6-1 x 40mm hex head stainless steel $0.99 2 ships same day
002 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
003 272-1670 Washer 3/8 bowed $10.85 4 usually ships 17-28 days
004a 172-0083 3 inch guide wheel $13.76 2 ships same day
004b 991-3060 Bumper wheel $5.77 2 ships same day
004c 991-3030 Wheel $4.33 2 (NON-OEM) ships same day
005 172-0095 Bushing $36.32 2 usually ships 17-28 days
006 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 29 ships same day
007 172-9272 Right skirt weldment (OBSOLETE) $204.18 1 usually ships 1-5 days
009 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 29 usually ships 12-18 days
010a 172-9273 Side wiper $75.67 3 usually ships 17-28 days
010b 172-9472 Cable shield (OBSOLETE) $553.36 2 usually ships 1-5 days
011 172-9275 Right strap (OBSOLETE) $54.65 1 usually ships 1-5 days
012a 172-9276 Front wiper $29.23 2 usually ships 17-28 days
012b 172-9277 Squeegee blade neoprene $9.90 2 usually ships 1-5 days
013 172-9278 Strap $37.43 2 usually ships 1-5 days
014 172-9279 Left strap (OBSOLETE) $53.35 1 usually ships 1-5 days
015 172-9280 Left skirt weldment (OBSOLETE) $179.54 1 usually ships 1-5 days
016 172-9281 Knob $11.57 4 usually ships 17-28 days
017 172-9282 Knob $13.17 4 ships same day
018 172-9442 Nut M12 hex jam $10.85 4 usually ships 1-5 days
019 172-2503 Tank leveler $13.76 2 usually ships 17-28 days
020 172-2503 Tank leveler $13.76 2 usually ships 17-28 days
021 999-1180 Screw M3-.5 x 16mm pan head stainless steel $0.99 2 ships same day
022 172-9443 Screw 12-1.75 x 70m hex full thread $13.76 4 usually ships 1-5 days
023a 172-9283 Rear wiper $29.16 1 usually ships 17-28 days
023b 172-9284 Squeegee blade rear neoprene (OBSOLETE) $12.77 1 usually ships 1-5 days
024 172-9285 Strap (OBSOLETE) $23.10 1 usually ships 1-5 days
025 172-9286 Strap (OBSOLETE) $45.63 1 usually ships 1-5 days
026a 172-9287 Squeegee blade front standard $53.88 1 usually ships 17-28 days
026b 172-9288 Squeegee blade front neoprene (OBSOLETE) $26.58 1 usually ships 1-5 days
027a 172-9289 Deck weldment (OBSOLETE) $334.40 1 usually ships 1-5 days
027b 172-9290 Left skirt assembly (OBSOLETE) $298.10 1 (Includes items 6, 9, 10, and 12 - 15) usually ships 1-5 days
KIT 172-9182 Squeegee blade scrub deck kit neoprene (OBSOLETE) $98.33 (Includes items 10, 12, 23, and 26) usually ships 1-5 days
KIT 172-9183 Squeegee blade scrub deck kit standard $209.59 (Includes items 10, 12, 23, and 26)Notes: These skirts are tan in color.
Posted By: krb
12/3/2003 2:33:32 PM Source: from looking at part on our shelf
 		usually ships 1-5 days
