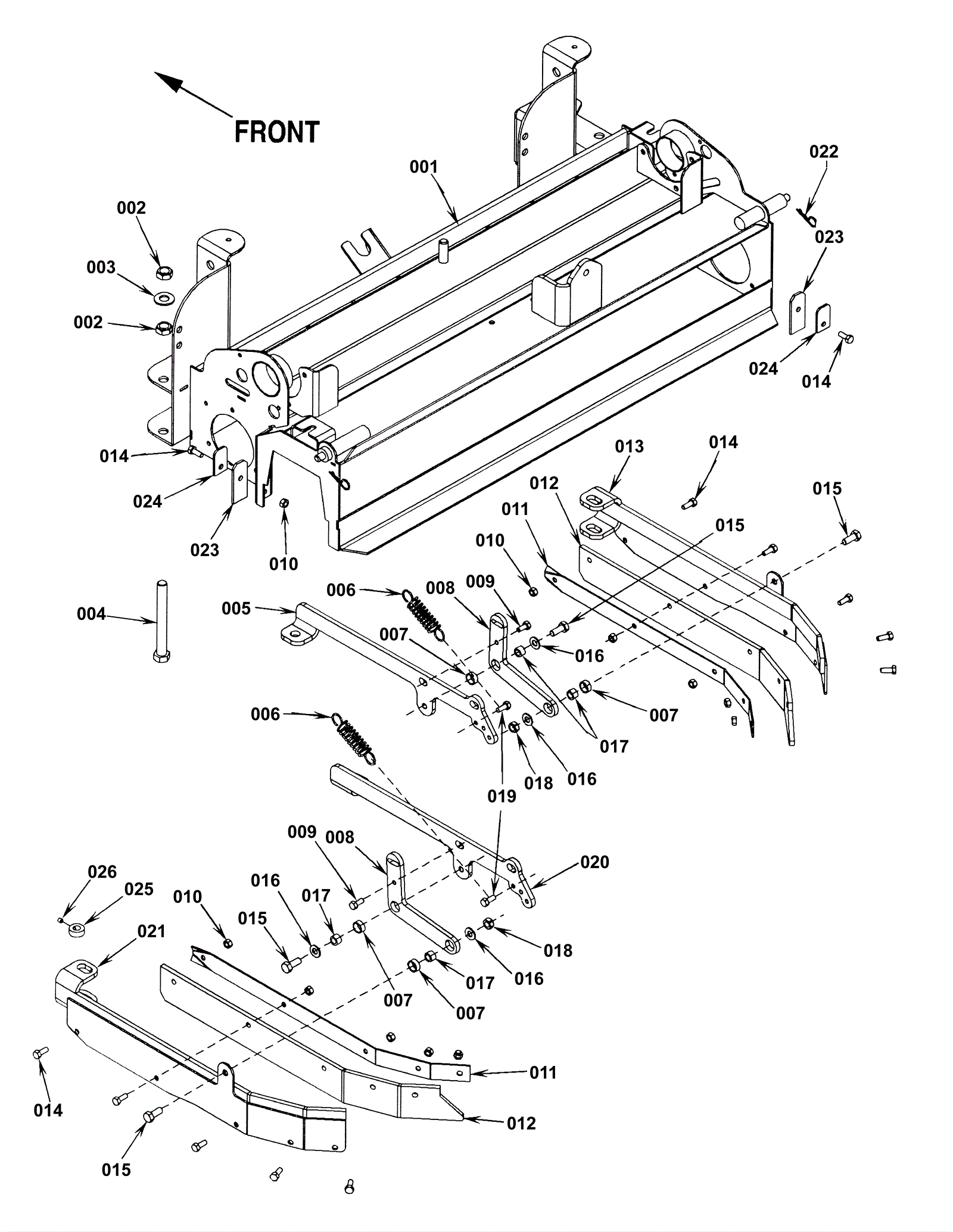

Cylindrical Scrub Deck/Skirts

#PartDescription ReqNotesAvailability
000a 172-8935 Right skirt assembly 1
001 172-9269 Housing weldment (OBSOLETE) 1
002 999-0118 Nut 1/2-13 nylon insert lock zinc plated 4
003 999-0187 Washer 1/2 flat plain finish 2
004 272-1595 Screw 1/2-13 X 4-1/2 hex head 2
005 172-8906 Mount bracket 1
006 172-2344 Extension spring 2
007 172-2742 Bushing 4
008 172-8872 Mount arm 2
009 N/A Not available 2 (Bolt)
010 999-0497 Nut M6-1 nylon insert lock stainless steel 12
011 172-8871 Skirt retainer 2
012a 172-8874 Gum rubber skirt 2
012b 172-8875 Oil resistant skirt 2
013 172-8909 Skirt bracket weldment 1
014 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 12
015 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
016 999-0412 Washer #8 SAE flat 4
017 172-9270 Bushing 4
018 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
019 272-1599 Bolt M6 x 15mm hex head nylok 2
020 172-8873 Mounting plate 1
021 172-8876 Skirt bracket weldment 1
022 997-2509 Cotter pin 1/8 x 3/4 stainless steel 2
023 172-8926 Blade 2
024 172-8919 Flanged bearing 2
025 172-8967 Collar 2
026 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
