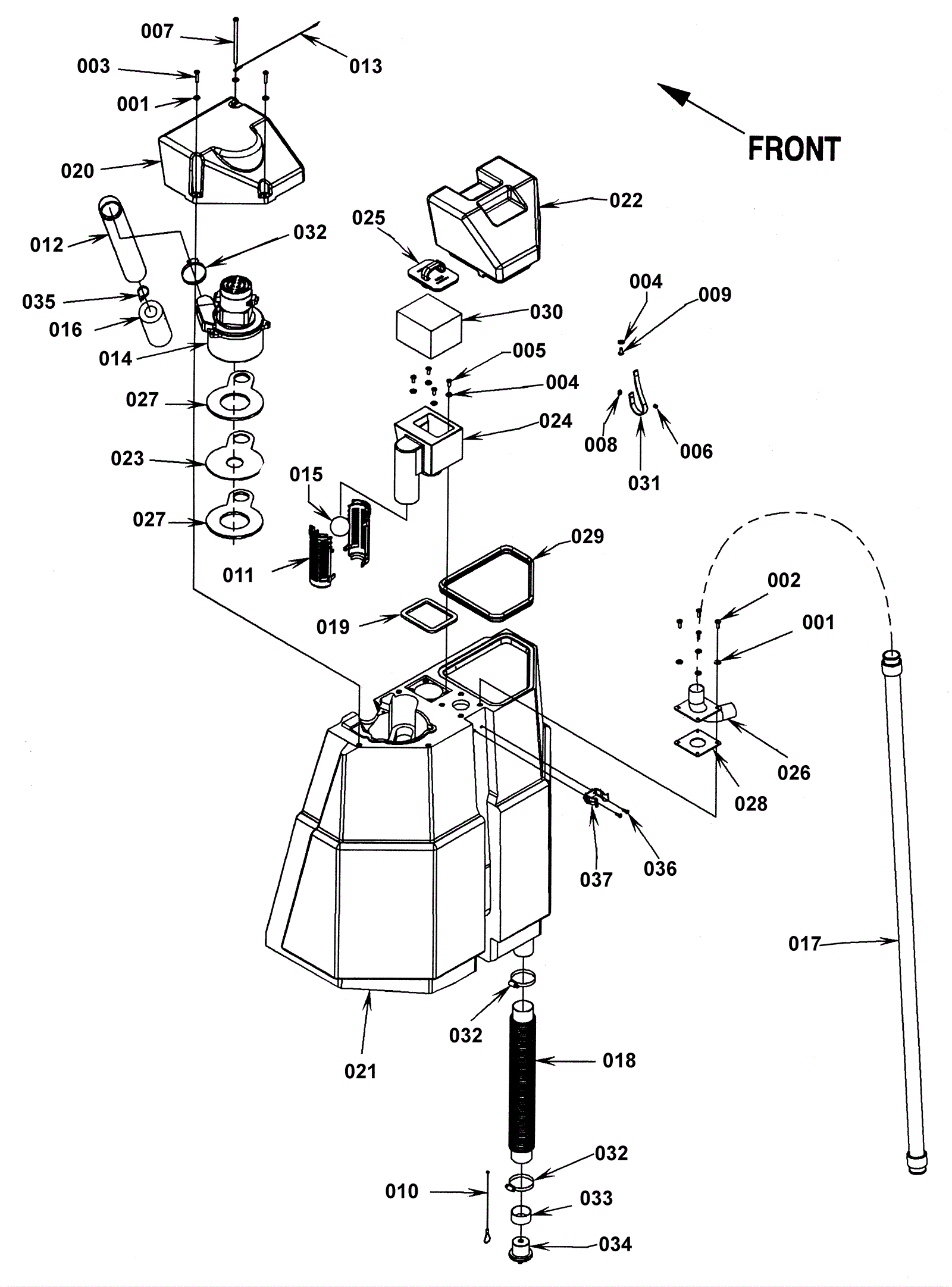

Recovery System

#PartDescription ReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated 7
002 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel 4
003 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated 2
004 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
005 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 4
006 172-0513 Pop rivet 1
007 272-1627 Screw 1/4-20 X 5 1/2 pan head phillips stainless steel 1
008 172-0253 Washer 1/8 x 23/64 flat stainless steel 2
009 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel 1
010 172-0325 Cork strap 1
011 172-0517 Float cage half (2 required for full float cage) 2
012 172-8227 Vacuum hose (OBSOLETE) 1
013 172-9013 12 inch wire rope 1
014a 172-8007 36V 3 stage vacuum motor assembly 1
014b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug 1
015 172-0192 Float ball 1
016 172-0126 Acoustical foam 1
017 172-0178 Hose with cuffs 1
018 172-9214 Drain hose (OBSOLETE) 1
019 172-9215 Inlet gasket 1
020 172-9216 Recovery tank dome (OBSOLETE) 1
021 172-9217 Recovery tank (OBSOLETE) 1
022 172-9218 Recovery tank cover 1
023 172-9219 Plate (OBSOLETE) 1
024 172-9220 Rotomold intake housing 1
025 172-9221 Cover / Handle assembly 1
026 172-9225 Recovery tube 1
027 172-9226 Vacuum motor gasket 2
028 172-9227 Spout inlet gasket 1
029 172-9228 Recovery lid gasket 1
030 172-9229 Filter 1
031 172-9230 Retaining strap 1
032 997-2003 Hose clamp 3
033 172-8004 Tube cuff 1
034 172-8003 Plug (OBSOLETE) 1
035 997-2102 Cable tie 1
036 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 2
037 272-1159 Plastic clamp 1
N/S 172-9221 Cover / Handle assembly 1
N/S 991-1224 Plastic covered carbon brush (sold individually) 2
N/S 172-9224 Gasket 1
