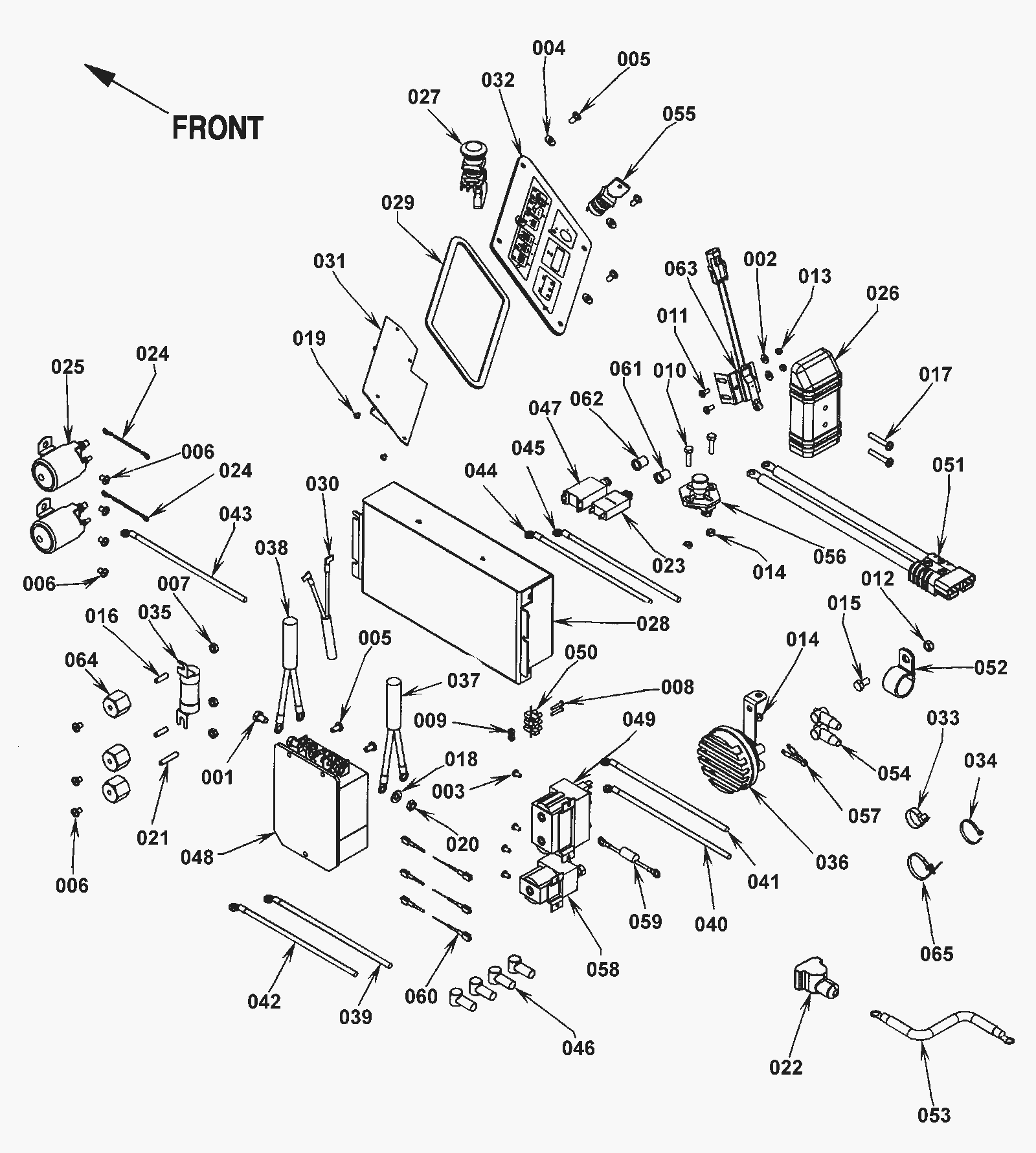

Electrical System

#PartDescription ReqNotesAvailability
001 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 4
002 999-0006 Washer 3/16 flat zinc plated 2
003 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 4
004 999-0123 Washer 1/4 SAE flat zinc plated 4
005 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 7
006 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 10
007 272-1526 Deck kit 2810D 3
008 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated 2
011 172-8317 Screw M5 x 12mm phillips pan head 2
012 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
013 999-0495 Nut M5-.8 nylon insert lock zinc plated 2
015 N/A Not available 1 (Bolt)
016 172-0345 Terminal stud 2
017 272-1626 Screw 1/4-20 x 1 1/2 phillips pan head thread forming 2
018 999-0406 Washer 5/16 internal star lock zinc plated 4
019 999-1272 Screw 8-32 x 3/16 pan head phillips stainless steel 4
020 999-1180 Screw M3-.5 x 16mm pan head stainless steel 4
021 172-0346 Stud 1/4-20 1
022 172-0223 Battery cable boot 12
023 172-2160 10amp circuit breaker 1
024 172-0236 Diode rectifier assembly 2
025 172-2805 36V contactor 2
026 172-9232 Charger plug cover (OBSOLETE) 1
027 172-9233 Emergency stop button 1
028 172-9234 Control box assembly (OBSOLETE) 1
029 172-9239 Gasket 1
030 172-9240 Main wiring harness (OBSOLETE) 1
031 172-9241 Display PCB assembly 1
032 172-9242 Control panel assembly (OBSOLETE) 1
033 997-2102 Cable tie 12
034 997-2101 6 inch cable tie 12
035 172-9245 200 Amp fuse clamp 1
037 172-9247 Cable 1
038 172-9248 Cable (OBSOLETE) 1
039 172-9249 6 AWG cable (OBSOLETE) 1
040 172-9249 6 AWG cable (OBSOLETE) 1
041 172-9251 6 AWG cable (OBSOLETE) 1
042 172-9252 6 AWG cable (OBSOLETE) 1
043 172-9253 4 AWG cable (OBSOLETE) 1
044 172-9254 8 AWG cable (OBSOLETE) 1
045 172-9255 8 AWG cable (OBSOLETE) 1
046 172-9147 Terminal insulator 4
047 172-8827 45 Amp circuit breaker 1
048 172-9257 Speed Control (OBSOLETE) 1
049 172-9258 Contactor 1
050 172-9259 Diode 1
051 172-9260 Connector Assembly 1
052 172-9261 P clamp 1
053 172-8828 Battery cable 5
054 172-2303 Rubber boot 2
055a 172-8847 Key switch (OBSOLETE) 1
055b 172-8099 Replacement key (OBSOLETE)
056 172-9262 Horn switch 1
057 172-9263 Varistor Assembly 1
058 172-9264 Main contactor 1
059 172-9265 250 Ohm Resistor 1
060 172-9266 Diode Assembly 3
061 172-0231 Reset button boot 1
062 172-8848 Reset button boot 1
063 172-0235 Switch assembly (OBSOLETE) 1
064 172-0103 Electrical mount 3
065 172-2298 Push mount tie 4
N/S 172-9237 Circuit board (OBSOLETE) 1
N/S 172-9243 Control panel (OBSOLETE) 1
N/S 172-9267 Battery plug assembly (OBSOLETE) 1
N/S 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 4
N/S 172-8829 Battery terminal clamp 12
N/S 172-9244 Membrane switch (OBSOLETE) 1
N/S 172-9268 Charger plug assembly (OBSOLETE) 1
N/S N/A Not available 4
N/S 172-9235 Card mount cover (OBSOLETE) 1
