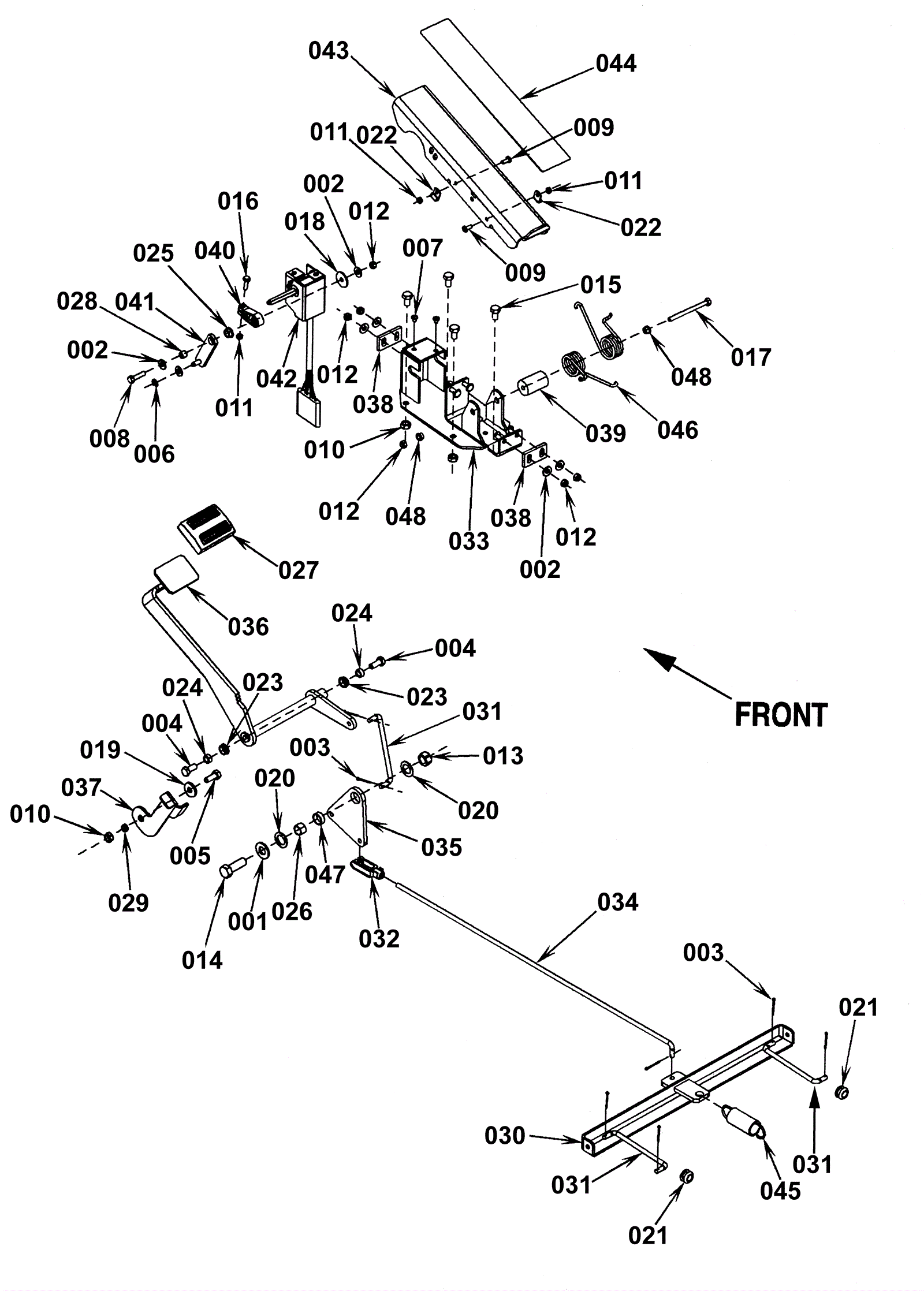

Control System

#PartDescription ReqNotesAvailability
001 999-0187 Washer 1/2 flat plain finish 1
002 999-0123 Washer 1/4 SAE flat zinc plated 7
004 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
005 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
006 172-0392 Retaining ring 1
007 272-1628 Screw 5mm X .08 X 6mm pan head phillips 2
009 172-8317 Screw M5 x 12mm phillips pan head 2
010 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
011 999-0495 Nut M5-.8 nylon insert lock zinc plated 3
013 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1
014 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 1
015 N/A Not available 1 (Bolt)
016 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc 1
017 999-1162 Bolt M6-1 x 75mm hex head part thread zinc 1
018 172-0548 Washer 17/64 x 47/64 flat stainless steel 1
019 172-2067 Washer 11/32 x 1/8 flat 1
020 172-9201 Thrust bearing 2
021 172-4560 Bushing 2
022 172-8814 P clamp 2
023 172-8919 Flanged bearing 2
024 172-4008 Bushing 2
025 172-8815 Flanged bearing 1
026 172-0072 Bushing 1
027 272-1983 Rubber pedal pad 1
028 172-0162 Bushing 1
029 172-9202 Bushing 1
030 172-9203 Arm weldment (OBSOLETE) 1
031 172-9204 Brake link (OBSOLETE) 3
032 172-9205 Clevis yoke 1
033 172-9206 Pedal mount weldment (OBSOLETE) 1
034 172-9207 Brake rod (OBSOLETE) 1
035 172-9208 Bellcrank (OBSOLETE) 1
036 172-9209 Brake pedal weldment (OBSOLETE) 1
037 172-9210 Park brake latch 1
038 172-8816 Side plate 2
039 172-8817 Nylon spacer 1
040 172-8818 Throttle lever 1
041 172-8819 Weldment link 1
042 172-9211 Electronic throttle 1
043 172-9212 Throttle pedal weldment 1
044 172-8823 Pedal mat 1
046 172-8824 Idler spring 2
047 172-0079 Sleeve bearing (OBSOLETE) 1
048 172-4120 Flanged bearing 2
