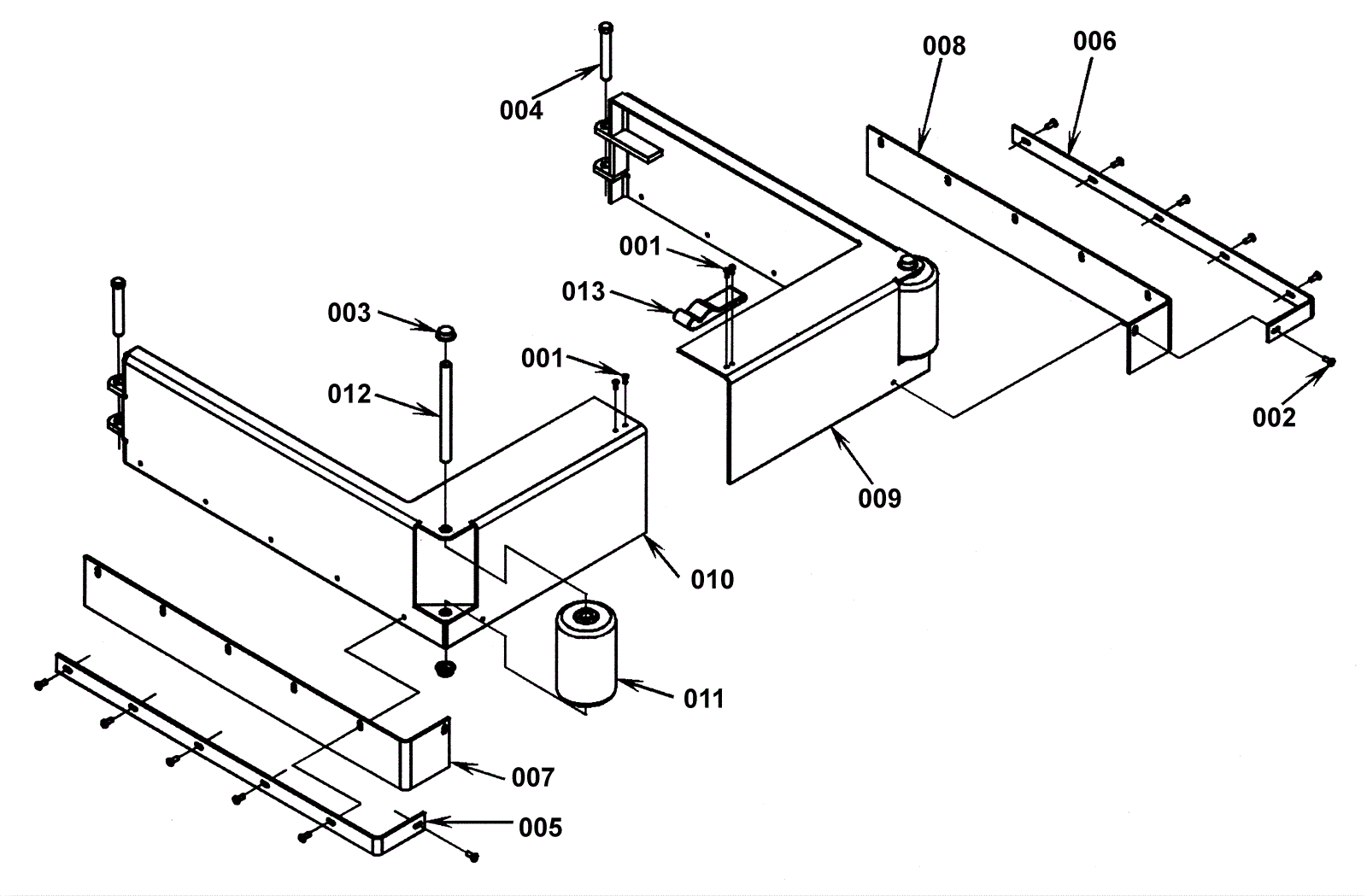

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
999-0277
|
Screw 6-32 x 3/8 hex washer head unslotted thread rolling |
$0.99
|
4 |
|
ships same day |
002 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
$0.99
|
12 |
|
ships same day |
003 |
172-4017
|
1/2 inch push cap |
$10.57
|
4 |
|
usually ships 1-5 days |
004a |
172-0047
|
Brass pin |
$27.50
|
2 |
|
usually ships 1-5 days |
005 |
N/A
|
Not available |
Call for price
|
1 |
(Left hand skirt retainer) |
usually ships 3-26 days |
006 |
N/A
|
Not available |
Call for price
|
1 |
(Right hand skirt retainer) |
usually ships 3-26 days |
007 |
272-1004
|
Right skirt (OBSOLETE) |
$33.00
|
1 |
|
usually ships 17-28 days |
008 |
272-1001
|
Left skirt (OBSOLETE) |
$31.64
|
1 |
|
usually ships 17-28 days |
009 |
272-1002
|
Left guard after SN 0598325 (OBSOLETE) |
$223.34
|
1 |
|
usually ships 1-5 days |
010 |
272-1003
|
Right guard after SN 0598325 (OBSOLETE) |
$209.09
|
1 |
|
usually ships 1-5 days |
011 |
172-9790
|
Roller bumper |
$69.71
|
2 |
|
usually ships 1-5 days |
012 |
272-1006
|
Rod (OBSOLETE) |
$8.78
|
2 |
|
usually ships 1-5 days |
013 |
172-0049
|
Latch |
$120.08
|
1 |
|
usually ships 17-28 days |
