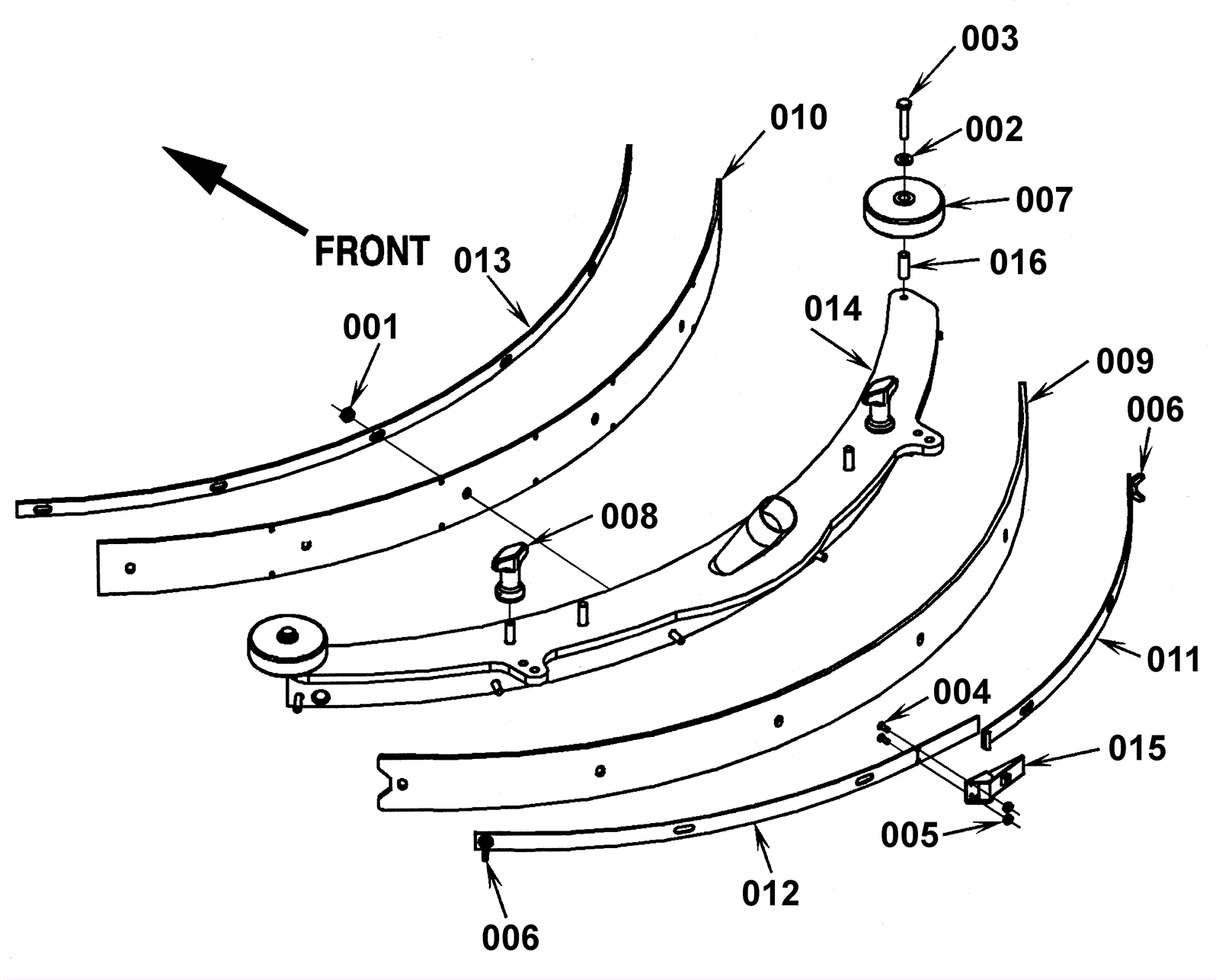

CONVERTAMATIC 28LX Squeegee Assembly 2

#PartDescriptionPriceReqNotesAvailability
000 272-1307 Squeegee assembly (OBSOLETE) $807.84 1 usually ships 1-5 days
001 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
002 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
003 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
004 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
005 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
006 999-1948 Nut 1/4-20 wing lock $3.76 2 ships same day
007a 172-0083 3 inch guide wheel $14.41 2 ships same day
007b 991-3060 Bumper wheel $6.17 2 ships same day
007c 991-3030 Wheel $6.17 2 (NON-OEM) ships same day
008 172-4099 Nut 5/16-18 thumb $13.32 2 ships same day
009a 172-0007 Squeegee blade 39 3/4 inch gum rubber rear (tan) $45.00 1 (OEM) usually ships 13-18 days
009b 994-0024 Squeegee blade 39 3/4 inch gum rubber rear (tan) $17.89 1 (NON-OEM) usually ships 11-16 days
009c 172-0097 Squeegee blade kit oil resistant neoprene $77.69 1 This blade is no longer available seperatly, you must purchase this blade kit. usually ships 13-18 days
010a 172-0086 Squeegee blade 37 inch gum rubber front (tan) $35.75 1 (OEM) usually ships 13-18 days
010b 994-0025 Squeegee blade 37 inch gum rubber front (tan) $12.99 1 (NON-OEM) ships same day
010c 172-0097 Squeegee blade kit oil resistant neoprene $77.69 1 This blade is no longer available seperatly, you must purchase this blade kit. usually ships 13-18 days
011 172-2192 Right rear strap (OBSOLETE) $35.19 1 usually ships 13-18 days
012 172-2147 Left rear strap $42.87 1 usually ships 13-18 days
013 172-0090 Front strap $72.26 1 usually ships 13-18 days
014 172-2149 Squeegee tool weldment $1,019.23 1 usually ships 13-18 days
015 172-0094 Latch $46.67 1 ships same day
016 172-0095 Bushing $41.83 2 usually ships 13-18 days
KIT 172-0096 Squeegee blade kit standard gum rubber $37.27 1 Includes items 9 - 10 usually ships 13-18 days
