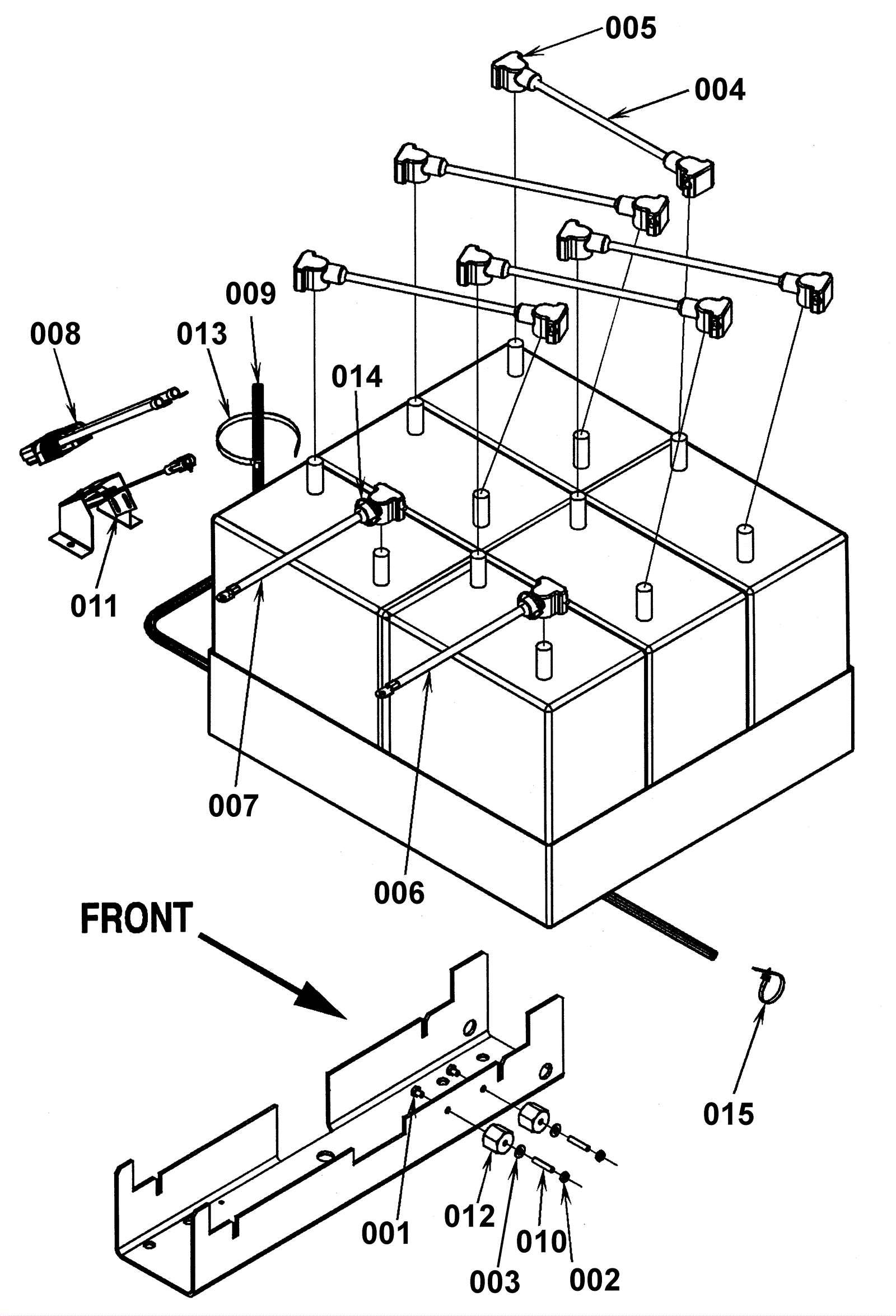

CONVERTAMATIC 28LX Electrical System 2

#PartDescriptionPriceReqNotesAvailability
001 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 2 ships same day
002 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
003 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
004 172-0221 Battery cable assembly - clamp type $26.52 5 usually ships 17-28 days
005 172-0223 Battery cable boot $9.26 12 ships same day
006 272-1293 Cable assembly (OBSOLETE) $86.13 1 usually ships 1-5 days
007 272-1294 Cable assembly (OBSOLETE) $86.13 1 usually ships 1-5 days
008 272-1074 Charger connector (OBSOLETE) $120.34 1 usually ships 1-5 days
009 N/A Not available Call for price 1 (Not Available) Wiring Harness usually ships 3-26 days
010 172-0346 Stud 1/4-20 $12.31 2 ships same day
011 172-0235 Switch assembly (OBSOLETE) $183.90 1 usually ships 17-28 days
012 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
013 997-2102 Cable tie $1.24 10 ships same day
014 997-2101 6 inch cable tie $0.99 24 ships same day
015 172-2298 Push mount tie $10.52 2 usually ships 1-5 days
