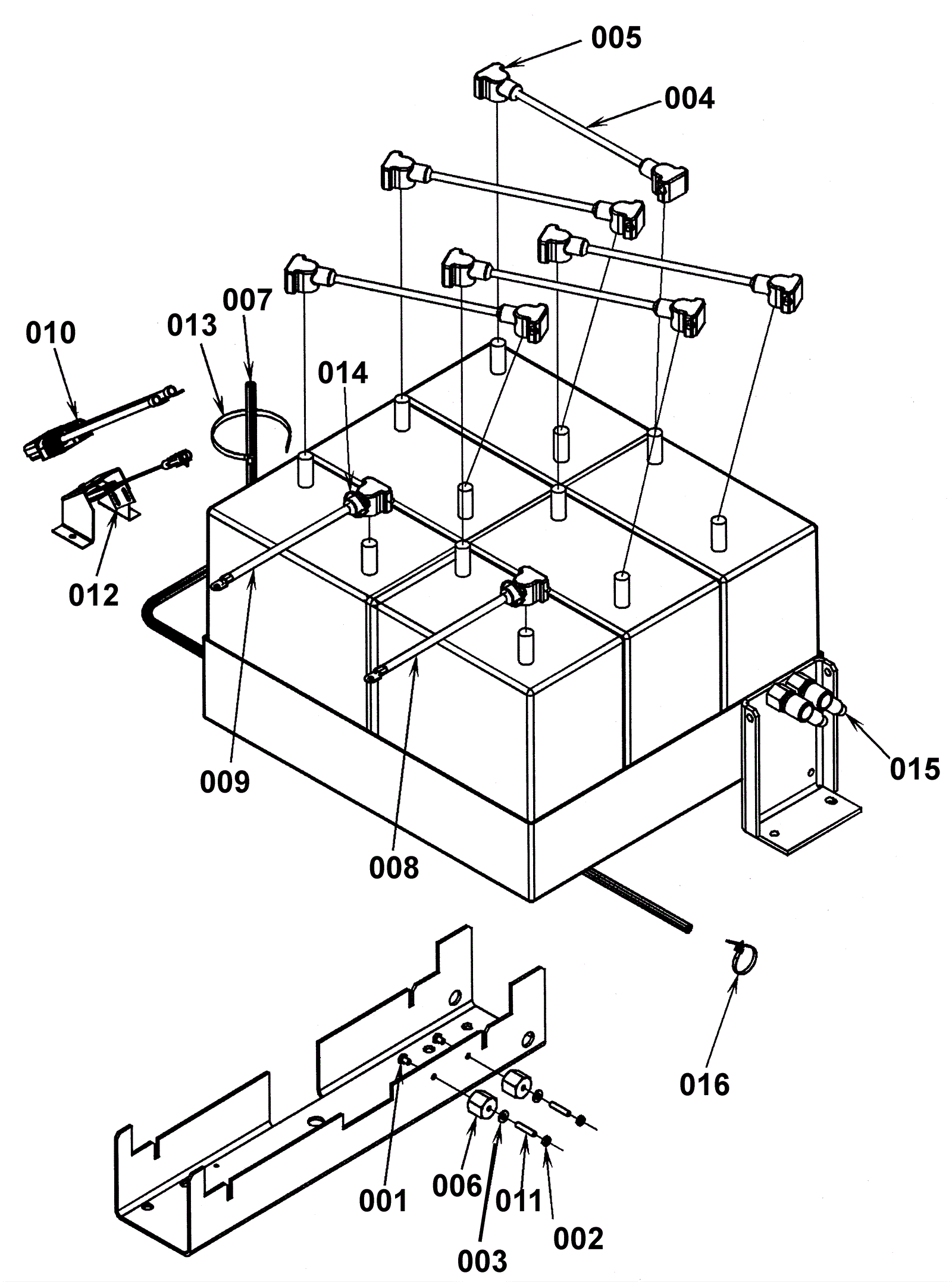

CONVERTAMATIC 28LX Electrical System 1

#PartDescriptionPriceReqNotesAvailability
001 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 2 ships same day
002 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
003 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
004a 172-0221 Battery cable assembly - clamp type $26.52 5 usually ships 17-28 days
004b 998-0010 Battery jumper cable - ring type (red) $4.84 (For use with top, bolt type post batteries) ships same day
004c 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 (NON-OEM) usually ships 14-21 days
005 172-0223 Battery cable boot $9.26 12 ships same day
006 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
007 272-1141 Wiring harness (OBSOLETE) $243.54 1 usually ships 1-5 days
008 272-1293 Cable assembly (OBSOLETE) $86.13 1 usually ships 1-5 days
009 272-1294 Cable assembly (OBSOLETE) $86.13 1 usually ships 1-5 days
010 272-1074 Charger connector (OBSOLETE) $120.34 1 usually ships 1-5 days
011 172-0346 Stud 1/4-20 $12.31 2 ships same day
012 172-0235 Switch assembly (OBSOLETE) $183.90 1 usually ships 17-28 days
013 997-2102 Cable tie $1.24 10 ships same day
014 997-2101 6 inch cable tie $0.99 24 ships same day
015 172-8964 Terminal insulator $13.76 2 usually ships 1-5 days
016 172-2298 Push mount tie $10.52 2 usually ships 1-5 days
