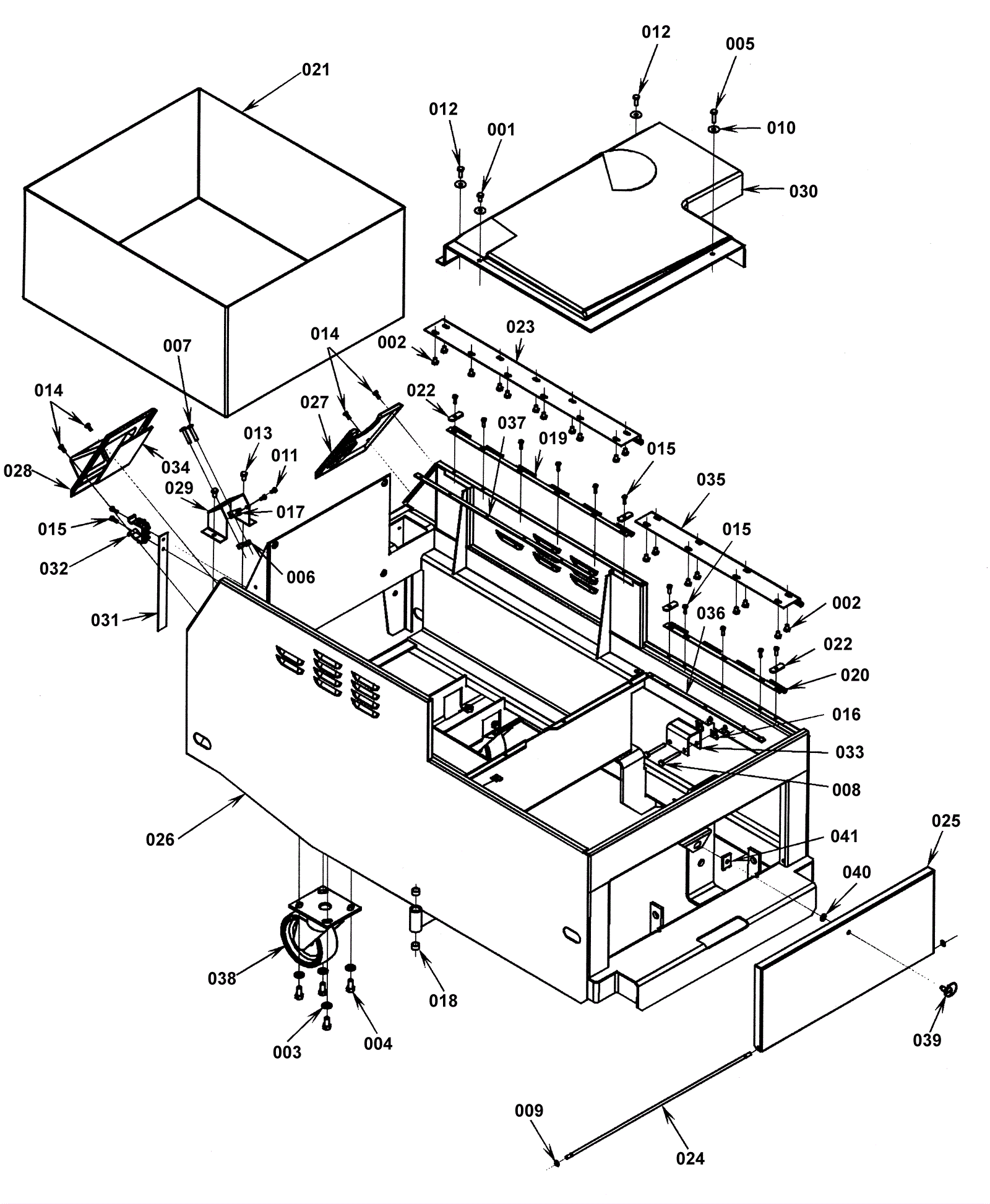

CONVERTAMATIC 28LX Chassis System

#PartDescriptionPriceReqNotesAvailability
001 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
002 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 19 ships same day
003 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
004 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 8 ships same day
005 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 1 ships same day
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
007 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
008 272-5261 Knob only $68.46 2 ships same day
009 172-0392 Retaining ring $10.85 2 usually ships 17-28 days
010 172-0553 Washer 17/64 x 1/16 flat $10.85 4 usually ships 17-28 days
011 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 2 ships same day
012 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
013 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 2 ships same day
014 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 4 ships same day
015 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc $0.99 15 ships same day
016 172-2207 Nut 1/4-20 clamp $8.03 3 usually ships 1-5 days
017 172-2158 Nut plate $18.38 1 usually ships 1-5 days
018 172-0048 Bearing $15.48 4 usually ships 17-28 days
019 272-1018 Hinge (OBSOLETE) $121.77 1 usually ships 1-5 days
020 272-1030 Hinge (OBSOLETE) $21.38 1 usually ships 1-5 days
021 172-9993 Battery tray after SN 528000 (OBSOLETE) $38.02 1 usually ships 1-5 days
022 272-1170 Hinge clip (OBSOLETE) $46.99 4 usually ships 1-5 days
023 272-0513 Exhaust panel (OBSOLETE) $11.75 1 usually ships 17-28 days
024 172-9972 Rod (OBSOLETE) $17.82 1 usually ships 1-5 days
025 N/A Not available Call for price 1 (Not Available) Front Panel usually ships 3-26 days
026 N/A Not available Call for price 1 (Not Available) Chassis Weldment usually ships 3-26 days
027 272-1281 Rear left panel (OBSOLETE) $42.77 1 usually ships 1-5 days
028 272-1282 Rear right panel (OBSOLETE) $42.77 1 usually ships 1-5 days
029 272-1172 Bracket (OBSOLETE) $425.90 1 usually ships 1-5 days
030 272-1283 Cover (OBSOLETE) $320.76 1 usually ships 1-5 days
031 272-1173 Web strap (OBSOLETE) $14.72 1 usually ships 1-5 days
032 272-1159 Plastic clamp $10.85 1 ships same day
033 272-1175 Brush adjustment rod $31.05 1 usually ships 1-5 days
034 272-1176 Guard (OBSOLETE) $20.20 1 usually ships 1-5 days
035 172-2029 Plate (OBSOLETE) $7.37 1 usually ships 1-5 days
036 272-1031 Nut plate (OBSOLETE) $150.88 1 usually ships 1-5 days
037 272-1019 Nut plate (OBSOLETE) $137.21 1 usually ships 1-5 days
038a 172-8073 Caster wheel $144.53 2 usually ships 17-28 days
038b 172-8078 Wheel (OBSOLETE) $155.60 2 usually ships 1-5 days
039 172-0034 Screw $11.75 1 usually ships 1-5 days
040 172-0033 Retainer $10.52 1 usually ships 1-5 days
041 172-0060 Screw receptacle (OBSOLETE) $8.78 1 usually ships 1-5 days
