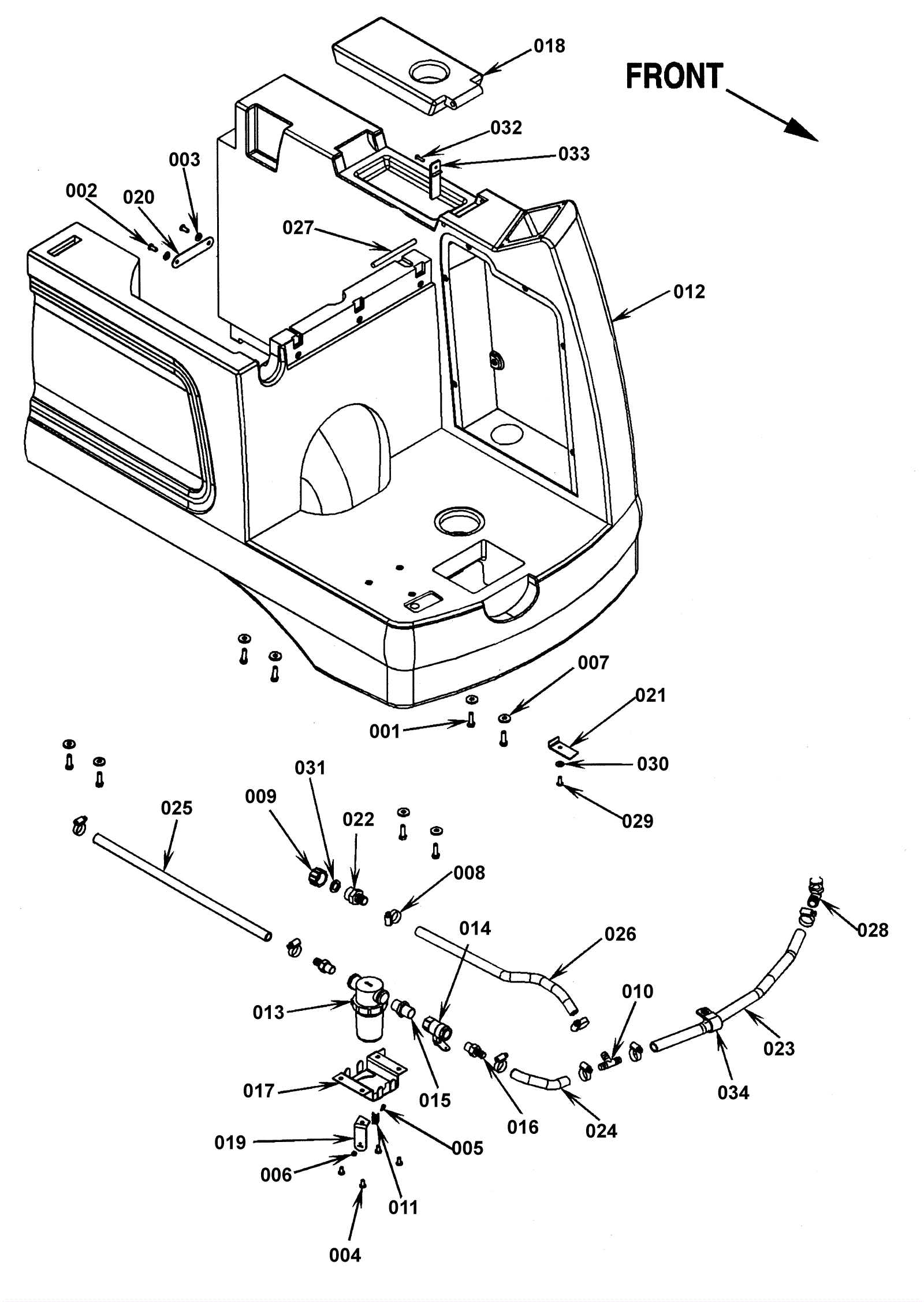

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
8 |
|
|
002 |
999-0081
|
Screw 1/4-20 x 5/8 pan head slotted zinc |
2 |
|
|
003 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
004 |
999-0508
|
Screw 1/4-20 x 1/2 pan head phillips zinc plated |
4 |
|
|
005 |
999-1376
|
Screw 6-32 x 1/2 hex head stainless steel |
1 |
|
|
006 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
007 |
172-2067
|
Washer 11/32 x 1/8 flat |
8 |
|
|
008 |
997-2002
|
Hose clamp #6 |
8 |
|
|
009 |
172-0254
|
Nylon pipe cap |
1 |
|
|
010 |
172-4114
|
Tee barb |
1 |
|
|
011 |
172-9023
|
Cable clamp |
1 |
|
|
012 |
172-9024
|
Solution tank (OBSOLETE) |
1 |
|
|
013a |
172-9025
|
Solution filter |
1 |
|
|
013b |
991-3055
|
Solution filter |
1 |
(NON-OEM) |
|
014 |
172-9026
|
Solution shut-off valve |
1 |
|
|
015 |
172-2099
|
Nipple |
1 |
|
|
016 |
172-9027
|
Adapter barb NPT |
2 |
|
|
017 |
172-9028
|
Solution control bracket (OBSOLETE) |
1 |
|
|
018 |
172-9029
|
Solution tank cover (OBSOLETE) |
1 |
|
|
019 |
172-9030
|
Cable support (OBSOLETE) |
1 |
|
|
020 |
172-9031
|
Cable retainer (OBSOLETE) |
1 |
|
|
021 |
172-9032
|
Cable support bracket (OBSOLETE) |
1 |
|
|
022 |
172-9033
|
Adapter barb 1/2 x 3/4 |
1 |
|
|
023 |
172-9036
|
Solution hose (OBSOLETE) |
1 |
|
|
024 |
172-9035
|
Solution hose |
1 |
|
|
025 |
172-9036
|
Solution hose (OBSOLETE) |
1 |
|
|
026 |
172-2815
|
Main solution hose |
1 |
|
|
027 |
172-9038
|
Hinge pin (OBSOLETE) |
1 |
|
|
028 |
172-8083
|
Elbow |
1 |
|
|
029 |
999-0269
|
Screw 10-24 x 5/8 pan head phillips zinc plated |
1 |
|
|
030 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
031 |
172-0197
|
Rubber washer |
1 |
|
|
032 |
999-0898
|
Screw 10-16 x 3/4 pan head phillips stainless steel type B |
1 |
|
|
033 |
172-9039
|
Water level gauge |
1 |
|
|
034 |
272-1587
|
Clamp hose support (OBSOLETE) |
1 |
|
|
N/S |
272-8021
|
Vacuum hose assembly with cuff (OBSOLETE) |
1 |
|
|
