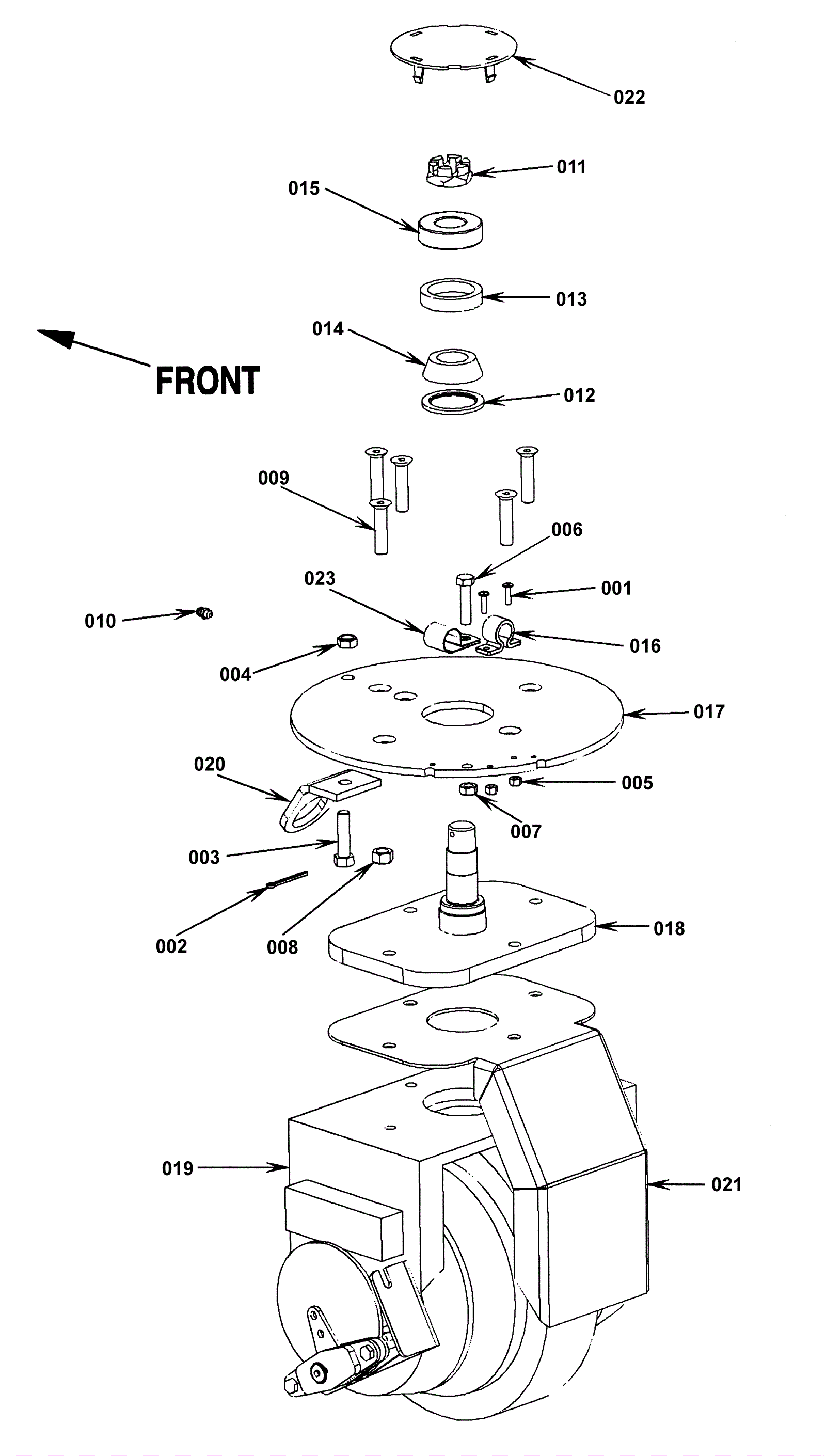

HYDRO 2800-DISK Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0438 Screw 8-32 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
002 172-9386 Cotter pin $10.85 1 usually ships 1-5 days
003 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
004 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
005 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
006 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
007 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
008 999-0960 Nut 10-24 hex stainless steel $0.99 1 ships same day
009 272-1602 Screw 10mm-1.50 x 40mm socket head $10.52 5 usually ships 1-5 days
010 172-0363 Grease fitting $12.31 1 usually ships 1-5 days
011 272-1603 Nut 7/8-14 castle $51.21 1 usually ships 1-5 days
012 172-4572 Seal shaft $19.98 1 usually ships 1-5 days
013 172-4571 Bearing cup $35.60 1 usually ships 1-5 days
014 172-4570 Bearing $56.50 1 usually ships 1-5 days
015 172-0435 Top bearing $42.98 1 usually ships 17-28 days
016 172-8801 Guide (OBSOLETE) $6.89 1 usually ships 1-5 days
017 172-8855 Steering plate (OBSOLETE) $95.04 1 usually ships 1-5 days
018 172-8856 Spindle weldment (OBSOLETE) $276.80 1 usually ships 1-5 days
019 172-8857 Drive motor / Wheel $4,827.35 1 usually ships 1-5 days
020 172-8867 Tie down bracket $87.54 1 usually ships 1-5 days
021 172-8868 Splash guard (OBSOLETE) $161.57 1 usually ships 1-5 days
022 172-8869 Spindle cap $13.76 1 usually ships 1-5 days
023 172-8870 P clamp $10.85 1 usually ships 1-5 days
Kit 172-8858 Brake caliper kit (OBSOLETE) $510.13 1 usually ships 1-5 days
Kit 172-8859 Brush cover kit $60.06 1 usually ships 17-28 days
Kit 172-8864 Carbon brush kit (includes 6 brushes and hardware) $674.08 1 usually ships 17-28 days
Kit 172-8866 Brake rotor kit (OBSOLETE) $70.95 1 usually ships 1-5 days
N/S 172-8860 Sealing ring $29.23 1 usually ships 17-28 days
N/S 172-8861 Gearbox ball bearing $114.88 1 usually ships 17-28 days
N/S 172-8862 Brush side ball bearing $31.63 1 ships same day
N/S 172-8863 Armature (OBSOLETE) $497.18 1 usually ships 1-5 days
N/S 172-8864 Carbon brush kit (includes 6 brushes and hardware) $674.08 1 usually ships 17-28 days
