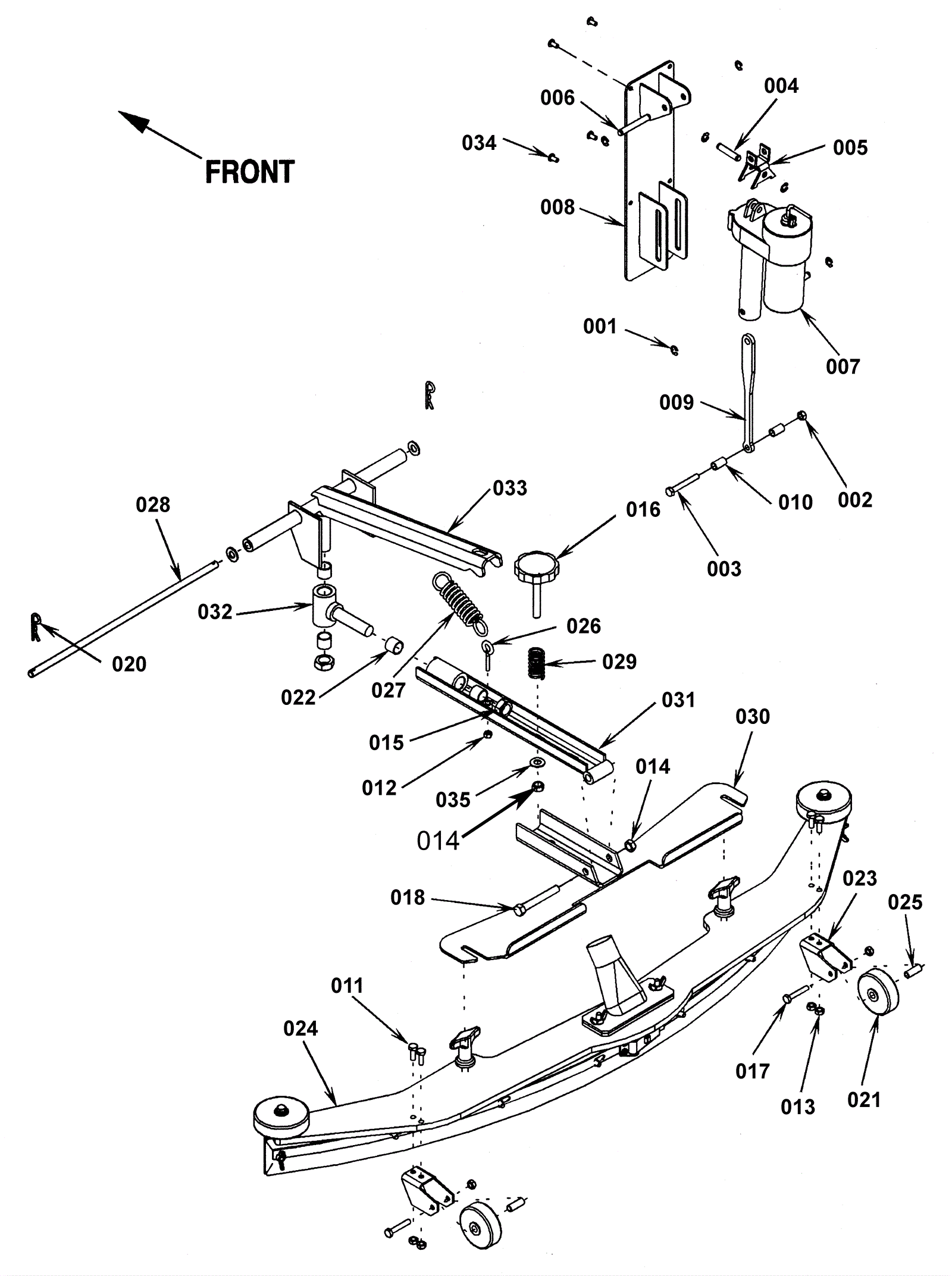

CONVERTAMAX 34 Squeegee System before S/N 1477842

#PartDescriptionPriceReqNotesAvailability
001 172-4033 3/8 inch retaining ring $9.60 6 usually ships 16-41 days
002 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
003 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 1 ships same day
004 172-8918 Pin $27.53 1 usually ships 16-41 days
005 172-2364 Gear motor yoke (OBSOLETE) $74.98 1 usually ships 1-5 days
006 172-2365 Pin $40.72 2 usually ships 1-5 days
007a 272-1421 36V motor actuator $596.69 1 usually ships 16-41 days
007b N/A Not available Call for price 1 Carbon brush kit usually ships 3-26 days
007c N/A Not available Call for price 2 Replacement limit switch usually ships 3-26 days
008 272-1422 Actuator mount weldment (OBSOLETE) $132.84 1 usually ships 1-5 days
009 272-1423 Link (OBSOLETE) $37.80 1 usually ships 1-5 days
010 272-1424 Spacer (OBSOLETE) $7.98 2 usually ships 1-5 days
011 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
013 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
014 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
015 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 2 ships same day
016 272-1425 Adjustment knob assembly $64.09 1 ships same day
017 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
018 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel $2.55 1 ships same day
020 997-2511 Cotter pin $0.99 2 ships same day
021a 172-0045 Guide wheel $12.18 2 usually ships 16-41 days
021b 991-3051 Guide wheel $3.96 2 ships same day
022 172-0107 Sleeve bearing $12.02 4 usually ships 1-5 days
023 172-0093 Wheel bracket $40.72 2 usually ships 16-41 days
024a 172-8074 Squeegee assembly (OBSOLETE) $749.15 1 (Converta MAX 34) usually ships 16-41 days
024b 272-1427 Squeegee assembly 34 inch (OBSOLETE) $520.56 1 (I-MAX 34HD) usually ships 1-5 days
025 172-0095 Bushing $32.15 2 usually ships 16-41 days
026 172-0547 Bolt 1/4-20 x 1 3/8 eye $9.56 1 usually ships 1-5 days
027 181-0142 Extension spring $21.77 1 usually ships 16-41 days
028 181-0046 Shaft stainless steel $20.22 1 usually ships 1-5 days
029 181-0168 Compression spring $11.88 1 usually ships 16-41 days
030 272-1428 Squeegee mount weldment 34 inch (OBSOLETE) $68.75 1 usually ships 1-5 days
031 272-1429 Squeegee bar weldment $154.93 1 usually ships 1-5 days
032 272-1430 Squeegee pivot weldment $94.43 1 usually ships 1-5 days
033 272-1431 Squeegee lift weldment (OBSOLETE) $171.00 1 usually ships 1-5 days
034 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
035 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
