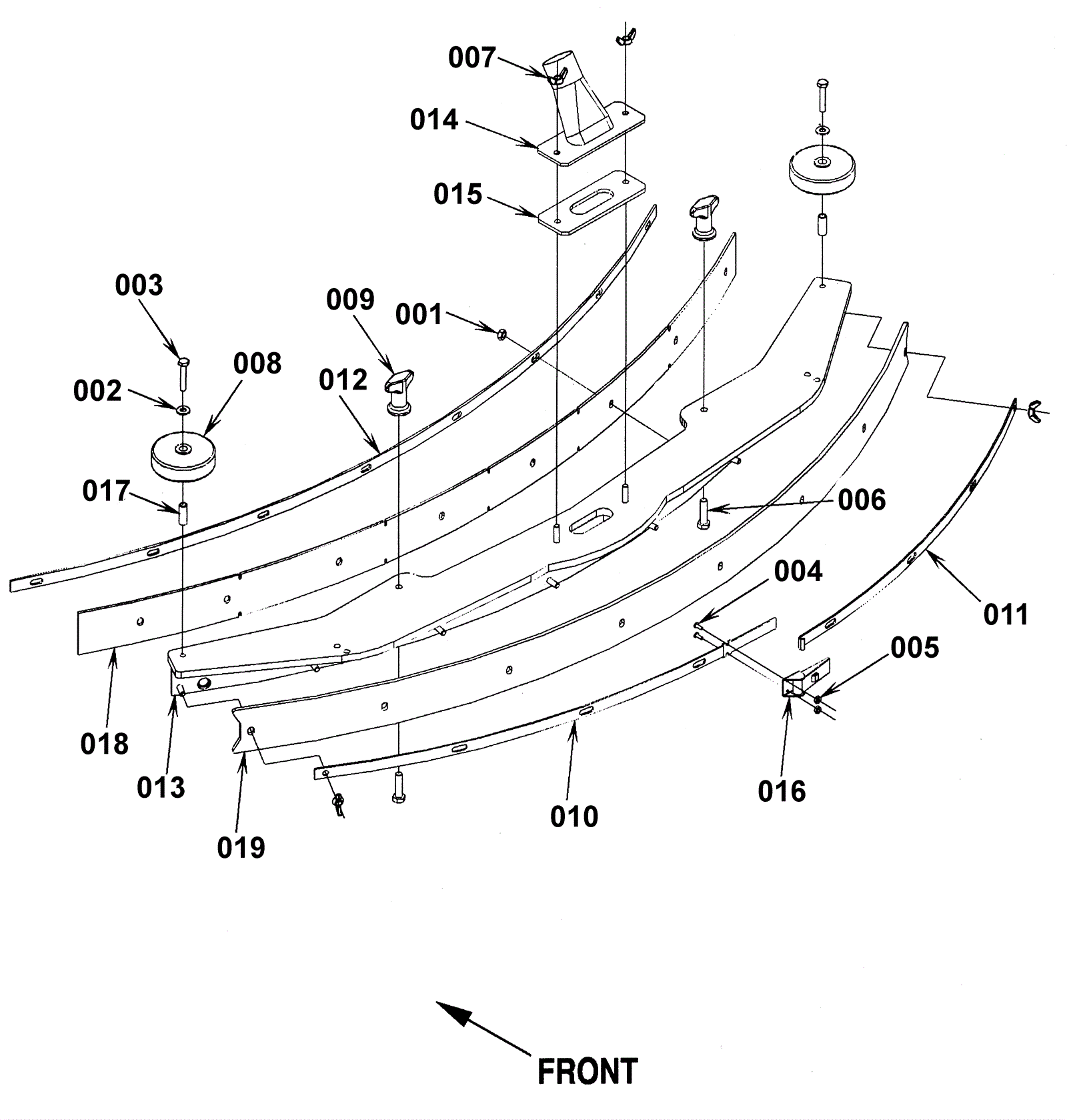

CONVERTAMAX 34 Squeegee Assembly before S/N 1477842

#PartDescriptionPriceReqNotesAvailability
001 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
002 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
003 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
004 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
005 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
006 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
007 999-0603 Nut 1/4-20 wing stainless steel $7.33 4 ships same day
008a 172-0083 3 inch guide wheel $12.18 2 usually ships 16-41 days
008b 991-3030 Wheel $3.46 2 (NON-OEM) ships same day
008b 991-3060 Bumper wheel $4.62 2 usually ships 5-16 days
009 172-4099 Nut 5/16-18 thumb $10.24 2 ships same day
010 172-8066 Left rear strap $30.22 1 usually ships 16-41 days
011 172-8067 Right rear strap $30.22 1 usually ships 16-41 days
012 172-9781 Front strap (OBSOLETE) $21.61 1 usually ships 16-41 days
013 172-0624 Tool weldment $780.21 1 usually ships 1-5 days
014 172-0625 Tube weldment $105.95 1 usually ships 16-41 days
015 172-8081 Gasket $12.18 1 usually ships 16-41 days
016 172-0094 Latch $39.46 Nilfisk ships same day
017 172-0095 Bushing $32.15 2 usually ships 16-41 days
018a 172-8030 Squeegee blade 45 inch front (tan) (OBSOLETE) $43.93 1 usually ships 16-41 days
018c 172-2362 Squeegee blade front gum rubber tile (OBSOLETE) $22.14 1 usually ships 1-5 days
019a 172-8029 Squeegee blade 46 inch rear (tan) $45.33 1 usually ships 16-41 days
019b N/A Not available Call for price 1 Rear blade - red usually ships 3-26 days
N/S 172-9782 Squeegee blade kit gum rubber $68.27 1 usually ships 16-41 days
N/S 172-9783 Squeegee blade kit neoprene $73.51 1 Front and Read blade Only available in kit usually ships 16-41 days
