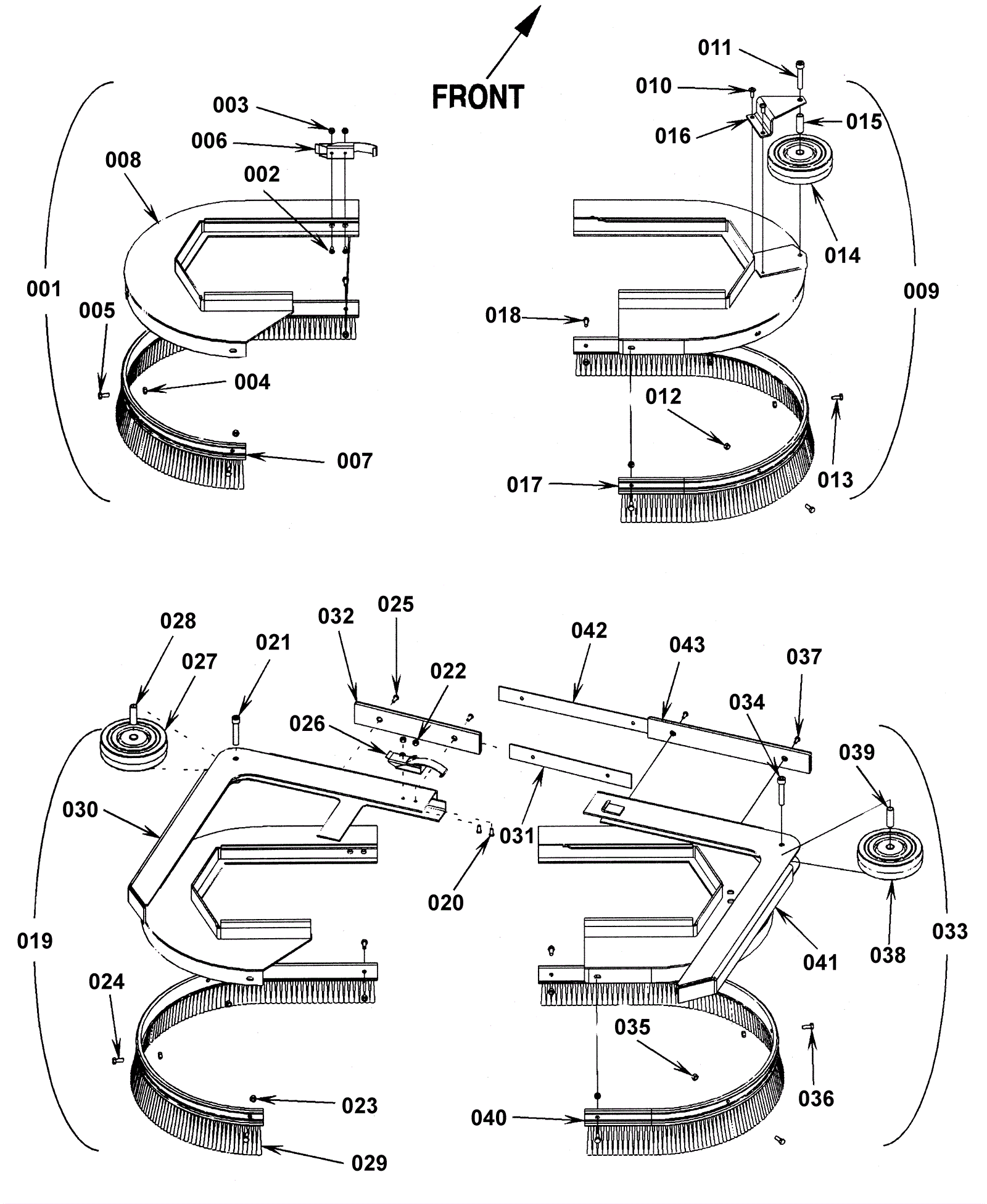

CONVERTAMAX 34 Skirt Assemblies

#PartDescriptionPriceReqNotesAvailability
001 272-1396 Left brush cover assembly (OBSOLETE) $299.97 1 Converta MAX 34 (Includes item 2 - 8) usually ships 1-5 days
002 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated $0.99 2 ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
004 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
005 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
006 181-0052 Toggle clamp latch (OBSOLETE) $98.56 1 usually ships 1-5 days
007 272-1397 Left bristle skirt (OBSOLETE) $132.00 1 usually ships 17-28 days
008 272-1398 Left brush cover weldment (OBSOLETE) $184.14 1 usually ships 1-5 days
009 272-1399 Right brush cover assembly (OBSOLETE) $439.56 1 usually ships 1-5 days
010 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
011 N/A Not available Call for price 1 Screw cap soc HD usually ships 3-26 days
012 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
013 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 5 ships same day
014 N/A Not available Call for price 1 (Brush head guide bracket) usually ships 3-26 days
015 172-4549 5 inch wheel (OBSOLETE) $31.64 1 usually ships 17-28 days
016 181-0061 Steel spacer (OBSOLETE) $26.00 1 usually ships 17-28 days
017 272-1400 Right bristle skirt (OBSOLETE) $142.45 1 usually ships 17-28 days
018 272-1401 Right brush cover weldment (OBSOLETE) $273.83 1 usually ships 1-5 days
019 272-1402 Left brush cover assembly (OBSOLETE) $662.90 1 usually ships 1-5 days
020 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
022 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
023 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
024 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
025 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
026 181-0052 Toggle clamp latch (OBSOLETE) $98.56 1 usually ships 1-5 days
027 172-4549 5 inch wheel (OBSOLETE) $31.64 1 usually ships 17-28 days
028 181-0061 Steel spacer (OBSOLETE) $26.00 1 usually ships 17-28 days
029 272-1397 Left bristle skirt (OBSOLETE) $132.00 1 usually ships 17-28 days
030 272-1404 Left brush cover weldment (OBSOLETE) $347.60 1 usually ships 1-5 days
031 272-1405 Strap (OBSOLETE) $71.28 1 usually ships 1-5 days
032 272-1406 Bumper (OBSOLETE) $53.46 1 usually ships 1-5 days
033 172-1407 Spring stop plate (OBSOLETE) $8.47 1 usually ships 1-5 days
034 N/A Not available Call for price 1 Screw cap soc HD usually ships 3-26 days
035 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
036 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 5 ships same day
037 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 2 ships same day
038 172-4549 5 inch wheel (OBSOLETE) $31.64 1 usually ships 17-28 days
039 181-0061 Steel spacer (OBSOLETE) $26.00 1 usually ships 17-28 days
040 272-1400 Right bristle skirt (OBSOLETE) $142.45 1 usually ships 17-28 days
041 272-1408 Right brush cover weldment (OBSOLETE) $378.97 1 usually ships 1-5 days
042 272-1405 Strap (OBSOLETE) $71.28 1 usually ships 1-5 days
043 272-1406 Bumper (OBSOLETE) $53.46 1 usually ships 1-5 days
