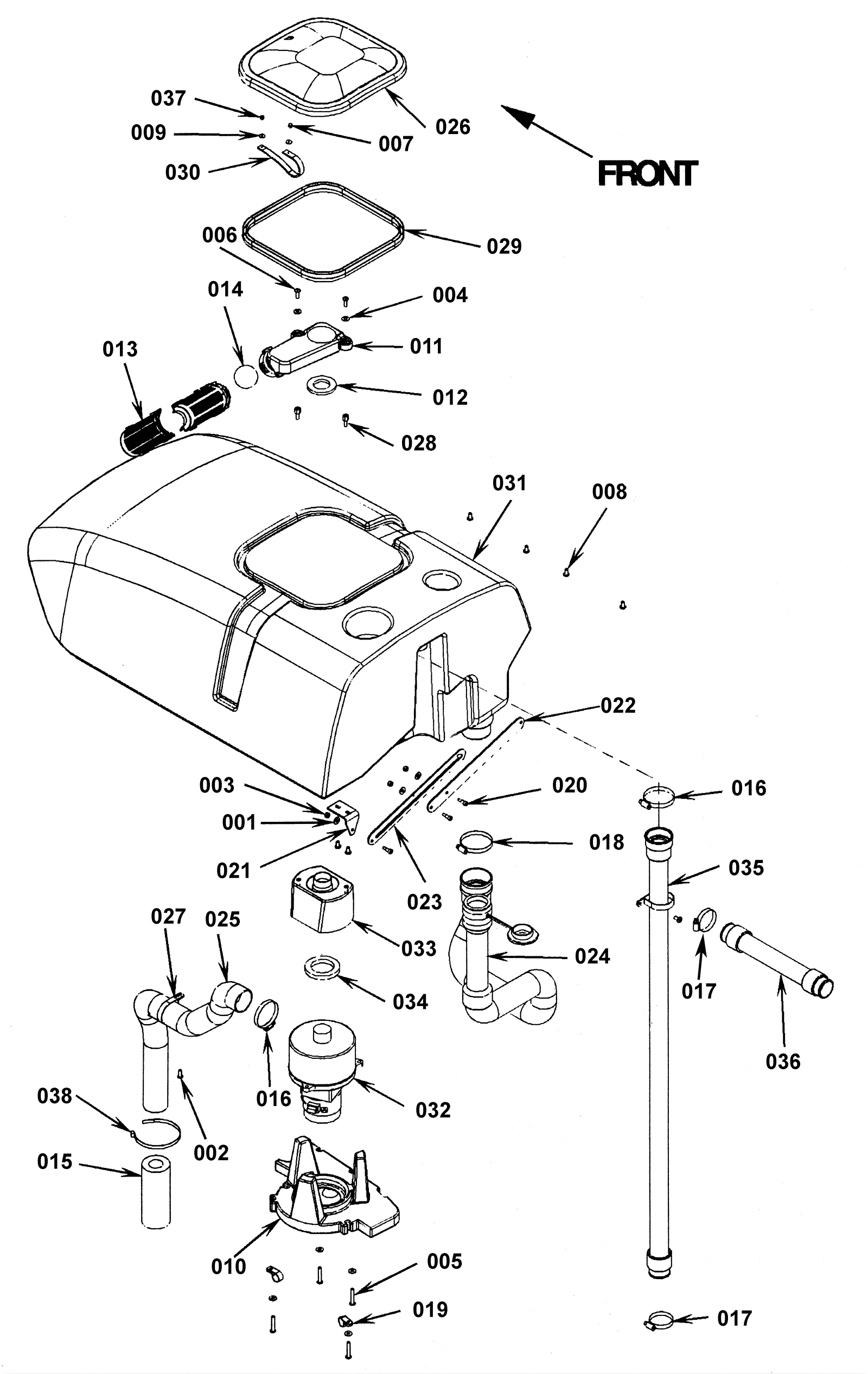

CONVERTAMAX 34 Recovery System

#PartDescriptionPriceReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
002 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
004 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
005 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish $0.99 4 ships same day
006 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
007 172-0513 Pop rivet $8.18 1 usually ships 16-41 days
008 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
009 172-0253 Washer 1/8 x 23/64 flat stainless steel $10.90 2 usually ships 16-41 days
010 272-1367 Vacuum motor duct $91.06 1 usually ships 1-5 days
011 172-2118 Float duct $106.29 1 usually ships 16-41 days
012 172-2119 Gasket $10.90 1 usually ships 16-41 days
013 172-0517 Float cage half (2 required for full float cage) $24.47 2 ships same day
014 172-0192 Float ball $9.56 1 ships same day
015 172-0126 Acoustical foam $25.87 1 usually ships 16-41 days
016 997-2003 Hose clamp $2.66 2 ships same day
017 997-2000 Hose clamp $2.37 2 ships same day
018 997-2009 Hose clamp $3.30 1 ships same day
019 172-7122 Motor mount lug (OBSOLETE) $76.00 2 usually ships 1-5 days
020 181-0223 Screw socket head $10.90 3 usually ships 16-41 days
021 272-1368 Steel bracket $20.64 1 usually ships 16-41 days
022 181-0224 Steel bar plated $22.61 1 usually ships 16-41 days
023 172-2123 Slotted steel bar (OBSOLETE) $39.77 1 usually ships 16-41 days
024 272-1369 Drain hose with molded plug $123.47 1 usually ships 16-41 days
025 172-2126 Vacuum motor exhaust hose $85.94 1 usually ships 16-41 days
026 172-2129 Lid $58.39 1 usually ships 16-41 days
027 172-2123 Slotted steel bar (OBSOLETE) $39.77 2 usually ships 16-41 days
028 172-2132 Spacer bolt $46.00 2 usually ships 1-5 days
029 172-2135 Lid gasket $38.04 1 usually ships 16-41 days
030 172-8109 Retaining strap (OBSOLETE) $10.90 1 usually ships 16-41 days
031 272-1370 Recovery tank (OBSOLETE) $926.50 1 usually ships 1-5 days
032a 991-1237 36V 3 stage vacuum motor bypass dual ball tangential $269.95 1 usually ships 5-16 days
032b 991-1221 Carbon brush without plastic cover (pkg of 2) $13.20 2 usually ships 5-16 days
033 172-2137 Vacuum motor spacer (OBSOLETE) $43.50 1 usually ships 16-41 days
034 172-2138 Vacuum motor gasket $10.90 1 usually ships 16-41 days
035a 172-0138 Vacuum hose assembly 1 1/2 inch $56.40 1 ConvertaMAX 34 before S/N 1422784 I-MAX 34HD before S/N 1423253 usually ships 16-41 days
035b 272-1374 Vacuum hose assembly $56.40 1 ConvertMAX 34 after S/N 1422783 I-MAX 34HD after S/N 1423252 usually ships 16-41 days
036 272-1375 Drain hose 1 1/2 inch $34.19 1 usually ships 16-41 days
037 272-1376 Pop rivet $9.56 1 usually ships 1-5 days
038 997-2102 Cable tie $1.24 1 ships same day
KIT 272-1377 Recovery tank kit (OBSOLETE) $878.00 usually ships 1-5 days
N/S 991-1221 Carbon brush without plastic cover (pkg of 2) $13.20 2 usually ships 5-16 days
