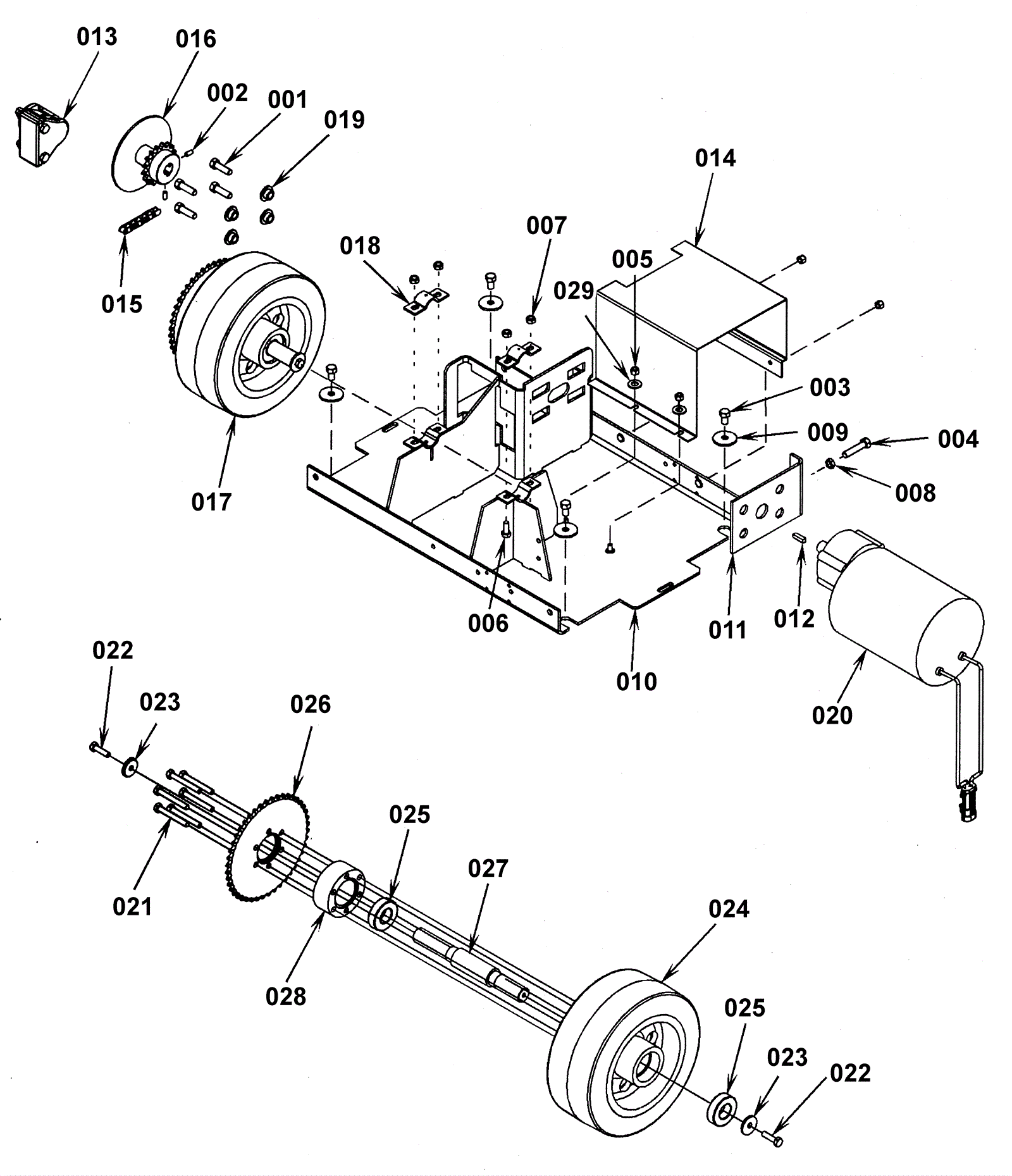

CONVERTAMAX 34 Drive Wheel System

#PartDescriptionPriceReqNotesAvailability
001 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
002 181-0079 Screw 5/16-18 x 5/8 socket set lock $5.39 2 usually ships 17-28 days
003 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
004 999-1931 Bolt 3/8-16 x 2 hex head full thread stainless steel $1.80 1 ships same day
005 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
006 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
007 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
008 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
009 272-1513 Washer 13/32 x 1 1/2 x 1/8 flat $10.85 4 usually ships 1-5 days
010 N/A Not available Call for price 1 (Lower chassis weldment) usually ships 3-26 days
011 N/A Not available Call for price 1 (Bracket weldment) usually ships 3-26 days
012 172-0442 Square keyway $11.69 1 usually ships 1-5 days
013 272-1337 Mechanical caliper brake (OBSOLETE) $151.71 1 usually ships 1-5 days
014 N/A Not available Call for price 1 (Motor cover) usually ships 3-26 days
015a 991-0101 Chain (sold by the link) $0.55 70 usually ships 4-8 days
015b 991-0103 Master link $1.87 1 ships same day
016 272-1340 Sprocket weldment (OBSOLETE) $143.75 1 usually ships 1-5 days
017 272-1341 Wheel assembly (OBSOLETE) $848.87 1 usually ships 1-5 days
018 272-1342 Axle clamp $22.24 2 usually ships 1-5 days
019 272-1343 Bushing (OBSOLETE) $7.81 4 usually ships 1-5 days
020a 272-1344 36V brush gear motor assembly $1,837.46 1 usually ships 1-5 days
020b 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 1 (NON-OEM) ships same day
021 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated $0.99 6 ships same day
022 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
023 272-1523 Washer flat $34.23 2 usually ships 1-5 days
024 172-0543 Wheel 10.0 x 4.00 (OBSOLETE) $680.22 1 usually ships 17-28 days
025 172-9411 Ball bearing $44.58 2 ships same day
026 272-1345 Sprocket $213.51 1 ships same day
027 272-1346 Axle $113.85 1 usually ships 17-28 days
028 272-1347 Spacer $367.93 1 usually ships 1-5 days
029 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
N/S 172-0479 Back end bearing (OBSOLETE) $50.71 1 usually ships 1-5 days
N/S 172-2053 Front end bearing (OBSOLETE) $52.14 1 usually ships 1-5 days
N/S 172-2054 Brush spring $16.95 4 usually ships 1-5 days
N/S 172-2056 Carbon brush (pkg of 4) $223.84 4 usually ships 17-28 days
N/S 172-2079 Brush board assembly (OBSOLETE) $213.51 1 usually ships 1-5 days
