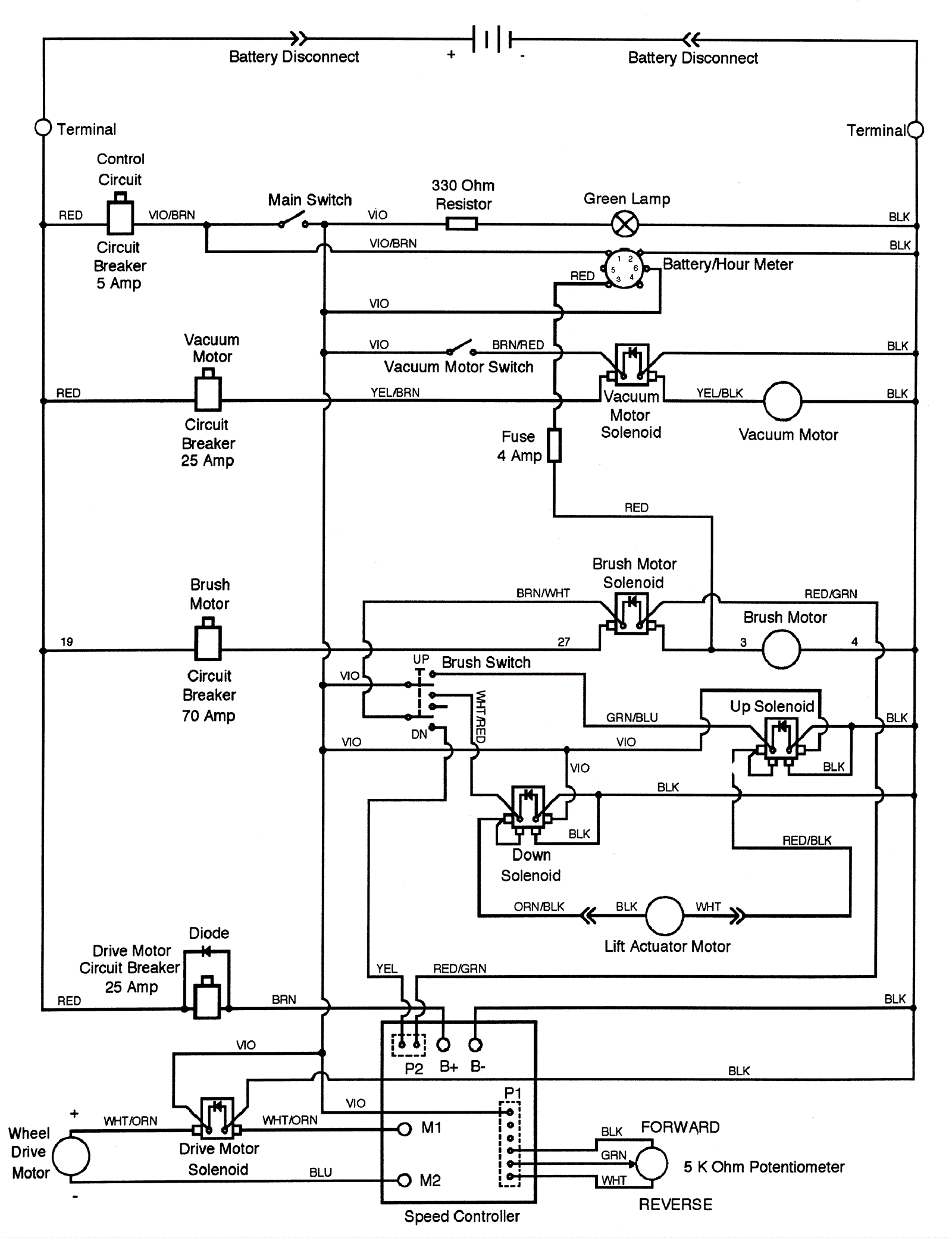

CONVERTAMATIC 385 HD Wiring Diagram before S/N 1018020

#PartDescriptionPriceReqNotesAvailability
01 172-9188 Motor, Actuator $918.74 1 usually ships 1-5 days
02 172-9937 Battery/Hour meter (OBSOLETE) $430.06 1 usually ships 16-41 days
03 172-9827 Solenoid contactor (OBSOLETE) $131.27 1 usually ships 1-5 days
04 172-0236 Diode rectifier assembly $32.69 1 usually ships 16-41 days
05 172-9911 Brush motor (OBSOLETE) $1,373.33 1 usually ships 1-5 days
06 991-1223 36V solenoid contactor with 4 post $48.17 1 usually ships 5-16 days
07 172-0236 Diode rectifier assembly $32.69 1 usually ships 16-41 days
08 172-8217 Rocker switch (OBSOLETE) $48.82 1 usually ships 16-41 days
09 172-9827 Solenoid contactor (OBSOLETE) $131.27 1 usually ships 1-5 days
10 172-0236 Diode rectifier assembly $32.69 1 usually ships 16-41 days
11 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 usually ships 16-41 days
12 172-9965 25 Amp circuit breaker $70.18 1 usually ships 1-5 days
13 172-9965 25 Amp circuit breaker $70.18 1 usually ships 1-5 days
14 991-1633 70amp circuit breaker $57.60 1 usually ships 3-19 days
15 272-1068 Diode $19.36 1 usually ships 1-5 days
16 172-9962 Drive motor $2,116.49 1 usually ships 1-5 days
17 991-1223 36V solenoid contactor with 4 post $48.17 1 usually ships 5-16 days
18 272-1069 Diode (OBSOLETE) $395.48 1 usually ships 1-5 days
19 272-1070 Screw M8-1.5 x 50mm hex head $10.85 1 usually ships 1-5 days
20 172-0313 Indicator light $26.40 1 usually ships 1-5 days
21 172-8082 Key switch $119.89 1 usually ships 1-5 days
22 N/A Not available Call for price 1 (not available) usually ships 3-26 days
23 172-2039 5K potentiometer $63.07 1 ships same day
24 272-1071 Resistor 330 Ohm (OBSOLETE) $13.78 1 usually ships 1-5 days
25 172-2812 Speed control (OBSOLETE) $1,001.48 1 usually ships 16-41 days
26 991-1202 36V 3 stage vacuum motor tangential $109.34 1 ships same day
27 991-1223 36V solenoid contactor with 4 post $48.17 1 usually ships 5-16 days
28 172-0236 Diode rectifier assembly $32.69 1 usually ships 16-41 days
29 172-0270 Snap switch $47.30 1 usually ships 5-10 days
