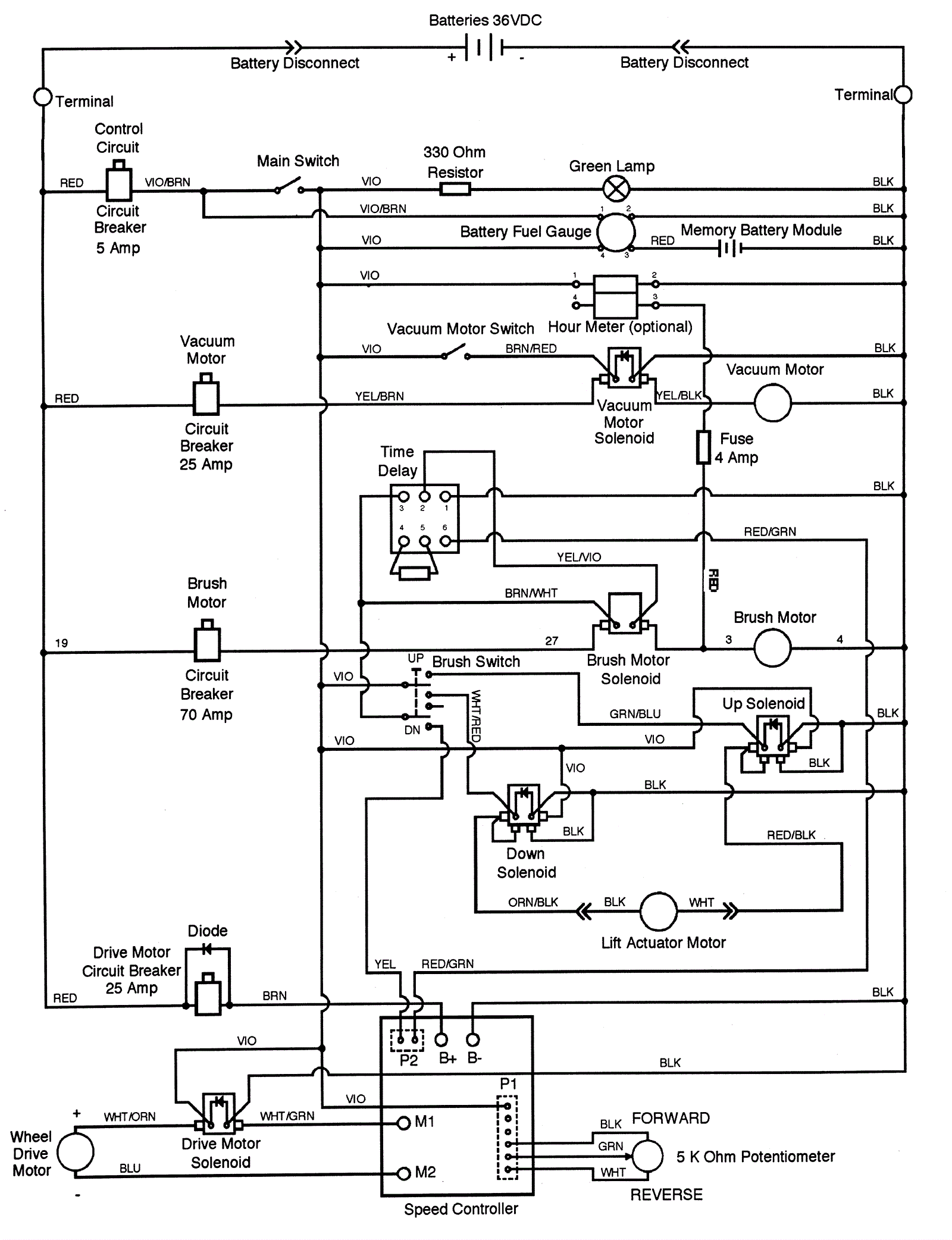

CONVERTAMATIC 385LX Wiring Diagram after S/N 1018019

#PartDescriptionPriceReqNotesAvailability
003 172-9188 Motor, Actuator $813.26 1 usually ships 1-5 days
004 172-9588 Battery fuel gauge $214.25 1 usually ships 1-5 days
005 172-9827 Solenoid contactor (OBSOLETE) $119.34 1 usually ships 1-5 days
006 172-0236 Diode rectifier assembly $28.94 1 ships same day
007 172-9911 Brush motor (OBSOLETE) $1,248.48 1 usually ships 1-5 days
008 991-1223 36V solenoid contactor with 4 post $38.54 1 usually ships 5-16 days
009 172-8217 Rocker switch (OBSOLETE) $44.38 1 usually ships 16-41 days
010 172-9827 Solenoid contactor (OBSOLETE) $119.34 1 usually ships 1-5 days
011 172-0236 Diode rectifier assembly $28.94 1 ships same day
012 172-0228 5amp circuit breaker (OBSOLETE) $72.00 1 usually ships 16-41 days
013 172-9965 25 Amp circuit breaker $63.80 1 Drive motor circuit breaker 25 amp usually ships 1-5 days
014 991-1633 70amp circuit breaker $46.08 1 usually ships 3-19 days
015 272-1068 Diode $17.60 1 usually ships 1-5 days
016 172-9962 Drive motor $1,924.08 1 usually ships 1-5 days
017 991-1223 36V solenoid contactor with 4 post $38.54 1 usually ships 5-16 days
018 272-1069 Diode (OBSOLETE) $359.53 1 usually ships 1-5 days
019 272-1070 Screw M8-1.5 x 50mm hex head $9.60 1 usually ships 1-5 days
020 172-2162 Hour meter $47.58 1 ships same day
021 172-0313 Indicator light $24.00 1 usually ships 1-5 days
022 172-8082 Key switch $108.99 1 usually ships 1-5 days
023 172-9996 Main wiring harness (OBSOLETE) $253.80 1 usually ships 1-5 days
024 172-2039 5K potentiometer $55.83 1 ships same day
025 272-1071 Resistor 330 Ohm (OBSOLETE) $12.53 1 usually ships 1-5 days
026 172-2812 Speed control (OBSOLETE) $910.44 1 usually ships 16-41 days
027 172-9966 Time delay (OBSOLETE) $239.76 1 usually ships 1-5 days
028a 172-8007 36V 3 stage vacuum motor assembly $226.05 1 usually ships 1-5 days
028b 991-1202-P 36V 3 stage vacuum motor tangential with Packard plug $107.36 1 usually ships 1-5 days
029 991-1223 36V solenoid contactor with 4 post $38.54 1 usually ships 5-16 days
030 172-0236 Diode rectifier assembly $28.94 1 ships same day
031 172-0270 Snap switch $43.00 1 usually ships 5-10 days
032 172-9965 25 Amp circuit breaker $63.80 1 Vacuum motor circuit breaker 25 amp usually ships 1-5 days
001 162-0003 6V 225Ah wet battery (SNSR) $269.50 6 ships same day
002 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 6 ships same day
