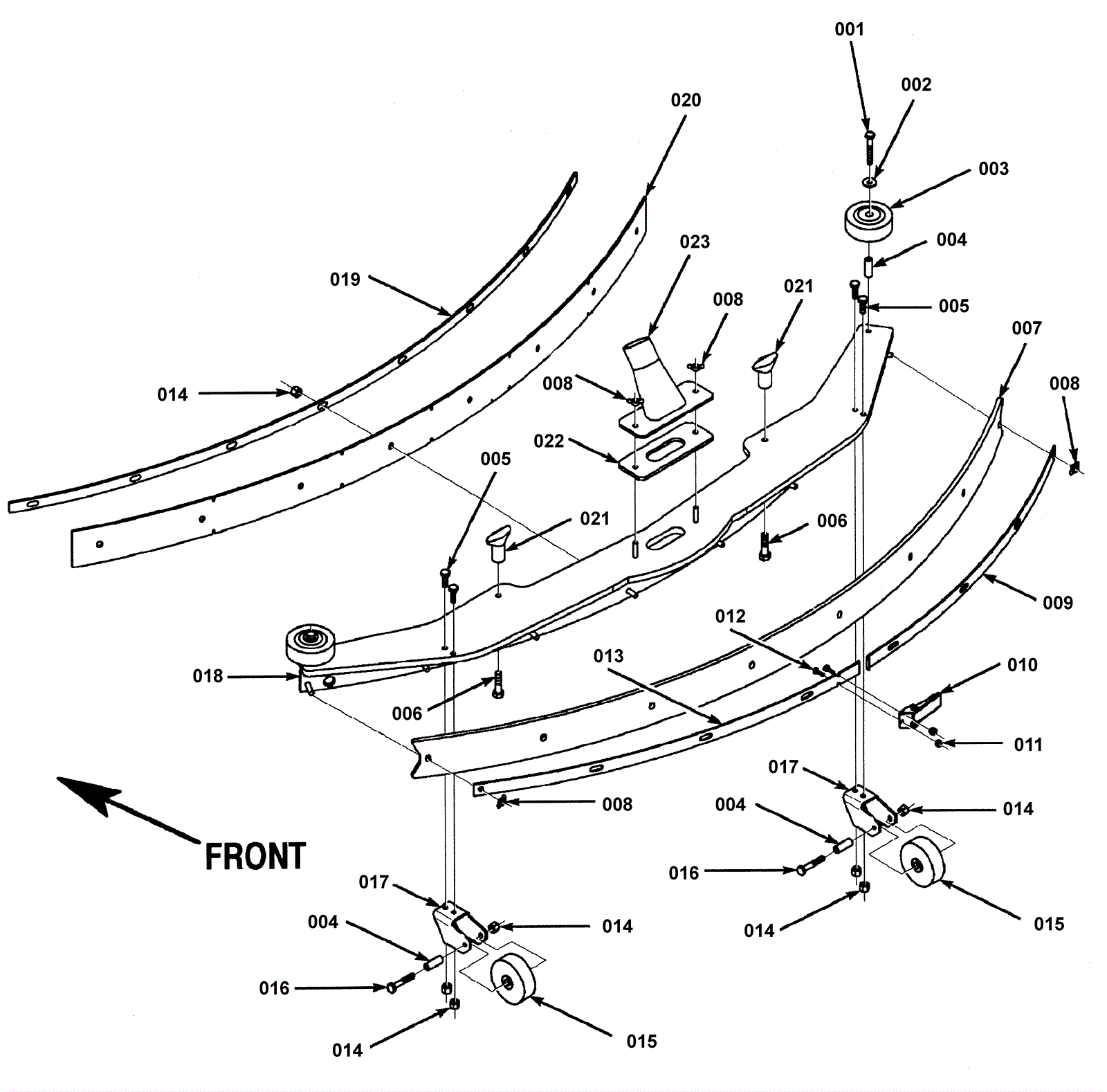

CONVERTAMATIC 385 HD Squeegee System after S/N 0606046

#PartDescriptionPriceReqNotesAvailability
000 172-8074 Squeegee assembly (OBSOLETE) $824.07 1 Includes items 1 - 23 (excluding wheels and brackets) usually ships 16-41 days
001 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
002 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
003a 172-0083 3 inch guide wheel $13.76 2 ships same day
003b 991-3060 Bumper wheel $5.77 2 ships same day
003c 991-3030 Wheel $4.33 2 (NON-OEM) ships same day
004 172-0095 Bushing $36.32 4 usually ships 16-41 days
005 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
006 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
007a 172-8029 Squeegee blade 46 inch rear (tan) $51.21 1 usually ships 16-41 days
007b 172-9783 Squeegee blade kit neoprene $83.04 1 Front and Read blade Only available in kit usually ships 16-41 days
008 999-0603 Nut 1/4-20 wing stainless steel $7.33 4 ships same day
009 172-8067 Right rear strap $34.14 1 usually ships 16-41 days
010 172-0094 Latch $44.58 1 ships same day
011 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
012 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
013 172-8066 Left rear strap $34.14 1 usually ships 16-41 days
014 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
015a 172-0045 Guide wheel $13.76 2 ships same day
015b 991-3051 Guide wheel $4.95 2 ships same day
016a 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
017 172-0093 Wheel bracket $46.00 2 usually ships 16-41 days
018 172-0624 Tool weldment $858.23 1 usually ships 1-5 days
019 172-9781 Front strap (OBSOLETE) $23.77 1 usually ships 16-41 days
020 172-9783 Squeegee blade kit neoprene $83.04 1 Front and Read blade Only available in kit usually ships 16-41 days
021 172-4099 Nut 5/16-18 thumb $11.57 2 ships same day
022 172-8081 Gasket $18.39 1 usually ships 16-41 days
023a 172-0625 Tube weldment $116.55 1 usually ships 16-41 days
023b 172-9782 Squeegee blade kit gum rubber $77.12 1 usually ships 16-41 days
