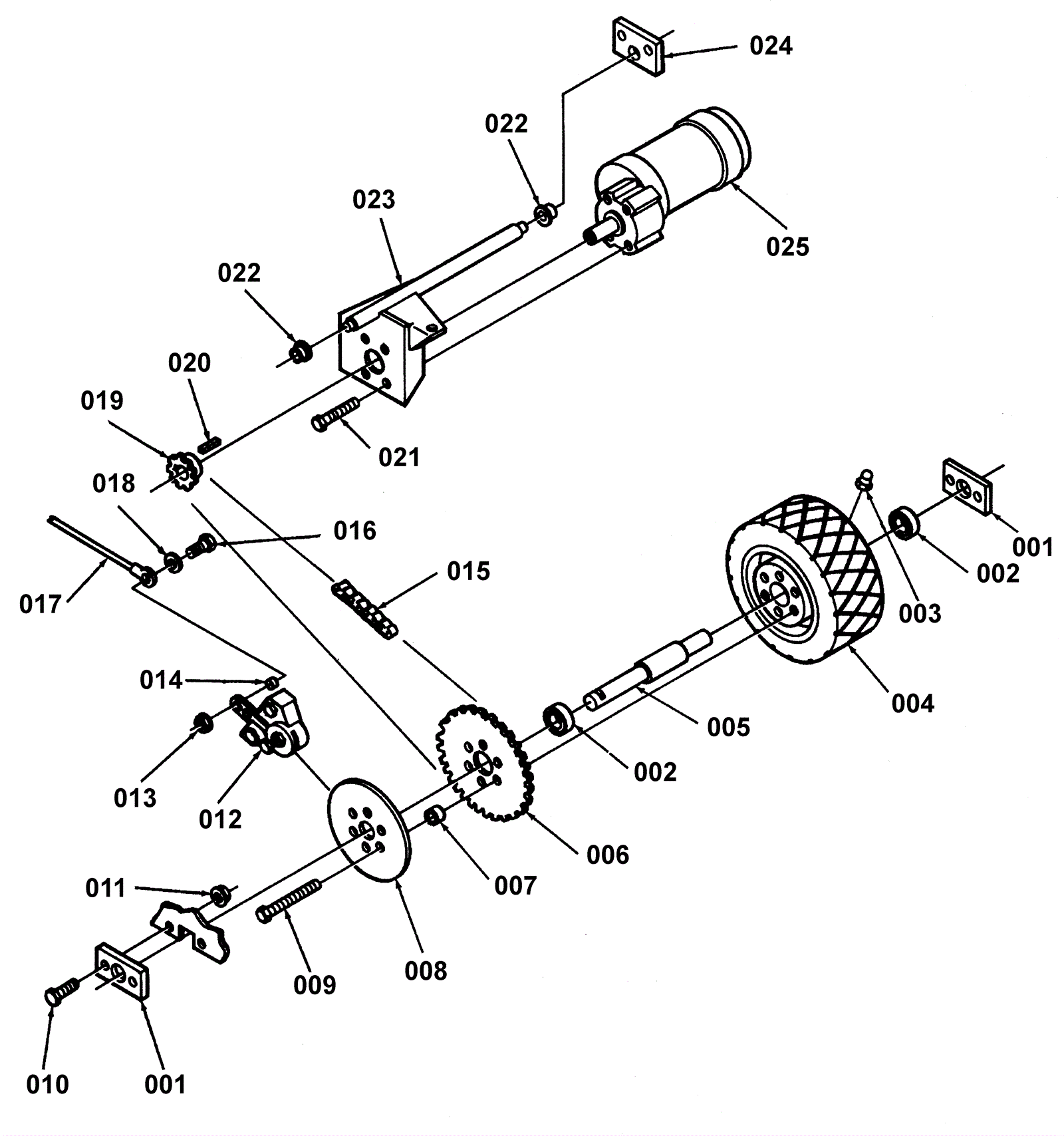

CONVERTAMATIC 385 HD Drive System

#PartDescriptionPriceReqNotesAvailability
001 172-8091 Pillow block (OBSOLETE) $23.96 2 usually ships 1-5 days
002 172-0435 Top bearing $42.98 2 usually ships 16-41 days
003 172-0363 Grease fitting $12.31 1 usually ships 1-5 days
004a 172-0543 Wheel 10.0 x 4.00 (OBSOLETE) $680.22 1 usually ships 16-41 days
004b 172-9956 Wheel and Axle assembly (OBSOLETE) $1,395.88 1 Includes items 2 - 9 usually ships 1-5 days
005 172-8086 Axle (OBSOLETE) $152.46 1 usually ships 16-41 days
006 172-8092 Sprocket $242.59 1 usually ships 16-41 days
007 172-9957 Bushing $24.20 6 usually ships 1-5 days
008 172-9958 Brake disc (OBSOLETE) $78.43 1 usually ships 1-5 days
009 999-0730 Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated $0.99 6 ships same day
010 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
011 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 4 ships same day
012 272-7001 Caliper brake (OBSOLETE) $300.81 1 usually ships 16-41 days
013 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
014 172-9959 Bushing (OBSOLETE) $21.12 1 usually ships 1-5 days
015 991-0101 Chain (sold by the link) $0.55 1 usually ships 4-8 days
016 272-1453 Bolt 10-24 x 7/8 hex head $10.52 1 usually ships 1-5 days
017 172-8071 Cable assembly (OBSOLETE) $76.45 1 usually ships 16-41 days
018 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
019 172-8093 Sprocket $95.66 1 usually ships 16-41 days
020 172-0348 Square keyway $11.69 1 usually ships 1-5 days
021 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
022 172-4090 Flanged bearing $20.68 2 usually ships 16-41 days
023 172-9960 Motor mount (OBSOLETE) $171.07 1 usually ships 1-5 days
024 172-9961 Pillow block (OBSOLETE) $20.91 1 usually ships 1-5 days
025 172-9962 Drive motor $2,116.49 1 usually ships 1-5 days
N/S 172-9963 Carbon brushes for drive motor (OBSOLETE) $205.26 1 usually ships 1-5 days
