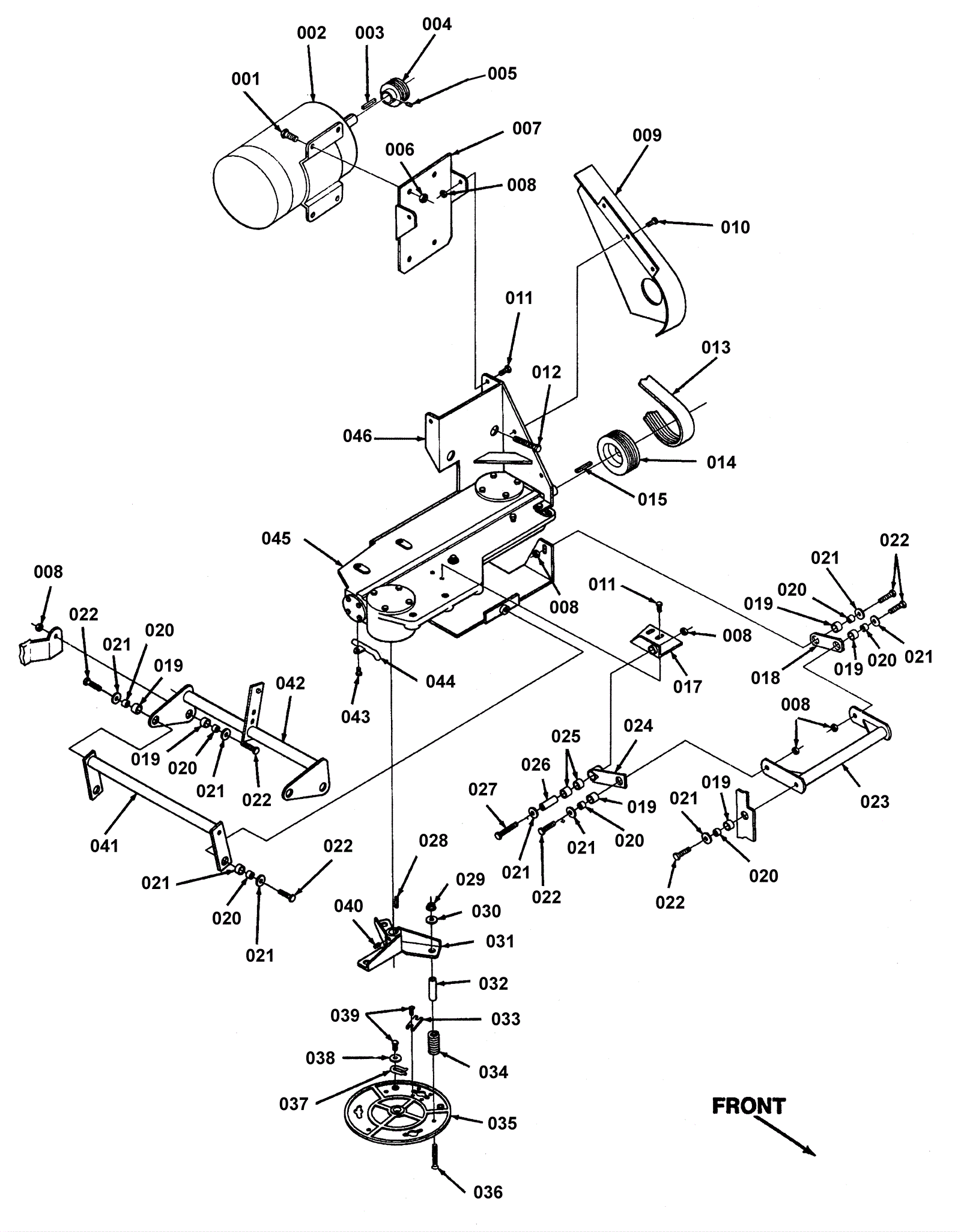

CONVERTAMATIC 385LX Brush Drive System 325

#PartDescriptionPriceReqNotesAvailability
001 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
002 172-0630 Motor 2.25HP 36V (OBSOLETE) $1,234.98 1 usually ships 1-5 days
003 172-0348 Square keyway $10.63 1 usually ships 1-5 days
004 272-1199 Poly-V sheave (OBSOLETE) $254.88 1 usually ships 1-5 days
005 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 2 ships same day
006 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
007 N/A Not available Call for price 1 (Not Available) Gearbox motor mount usually ships 3-26 days
008 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
009 272-1194 Belt guard weldment (OBSOLETE) $51.84 1 usually ships 1-5 days
010 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 3 ships same day
011 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
012 272-1471 Bolt 3/8-16 x 4 hex head $9.60 2 usually ships 16-41 days
013 272-1198 Poly-V belt $54.72 1 usually ships 1-5 days
014 172-9479 Poly V sheave (OBSOLETE) $203.46 1 usually ships 1-5 days
015 172-0437 Square keyway $9.60 1 usually ships 16-41 days
017 272-1192 Linkage arm weldment (OBSOLETE) $38.88 1 usually ships 1-5 days
018 272-1189 Linkage arm (OBSOLETE) $16.20 1 usually ships 1-5 days
019 172-0079 Sleeve bearing (OBSOLETE) $13.70 11 usually ships 16-41 days
020 272-1155 Bushing (OBSOLETE) $21.10 11 usually ships 1-5 days
021 999-0120 Washer 3/8 SAE flat $0.99 12 ships same day
022 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 11 ships same day
023 272-1187 Torsion bar weldment (OBSOLETE) $98.28 1 usually ships 1-5 days
024 272-1195 Linkage arm weldment (OBSOLETE) $98.28 1 usually ships 1-5 days
025 172-0023 Sleeve bearing $12.18 1 usually ships 16-41 days
026 272-1196 Bushing (OBSOLETE) $25.92 1 usually ships 1-5 days
027 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 1 ships same day
028 172-0437 Square keyway $9.60 2 usually ships 16-41 days
029 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 6 ships same day
030 999-0756 Washer 3/8 x 1 1/4 flat stainless steel $12.18 6 ships same day
031 172-9476 Drive adaptor $215.50 2 usually ships 16-41 days
032 172-0626 Spacer $10.63 6 usually ships 16-41 days
033 172-0155 Stop plate $10.90 2 usually ships 16-41 days
034 172-0627 Compression spring $10.90 6 usually ships 16-41 days
035 172-9475 Brush holder (OBSOLETE) $332.50 2 usually ships 16-41 days
036 999-0757 Screw 5/16-18 x 2 1/2 flat head slotted stainless steel $2.49 6 ships same day
037 175-2612 Spring clip $3.60 2 usually ships 5-16 days
038 172-0553 Washer 17/64 x 1/16 flat $9.60 2 usually ships 16-41 days
039 172-0565 Bolt 10-24 x 3/8 $10.68 6 usually ships 1-5 days
040 272-1469 Solution valve $89.90 2 usually ships 16-41 days
041 272-1154 Torsion bar weldment (OBSOLETE) $82.08 1 usually ships 1-5 days
042 272-1152 Torsion bar weldment (OBSOLETE) $106.92 1 usually ships 1-5 days
043 999-0578 Bolt 3/8-16 x 1/2 hex head grade 5 plain finish $0.99 2 ships same day
044 172-8088 Pipe weldment (OBSOLETE) $43.20 2 usually ships 16-41 days
045a 272-1197 Gearbox assembly (OBSOLETE) $1,709.64 1 usually ships 1-5 days
045b 272-1202 Gear case assembly (OBSOLETE) $2,706.48 1 Includes items 8, 11, 14 - 22 and, 24 - 46 usually ships 1-5 days
046a 272-1203 Motor mount (OBSOLETE) $339.34 1 usually ships 1-5 days
046b N/A Not available Call for price 1 (Not Available) Motor mount weldment usually ships 3-26 days
N/S 172-0164 Carbon brush set (set of 4) $205.00 1 usually ships 1-5 days
