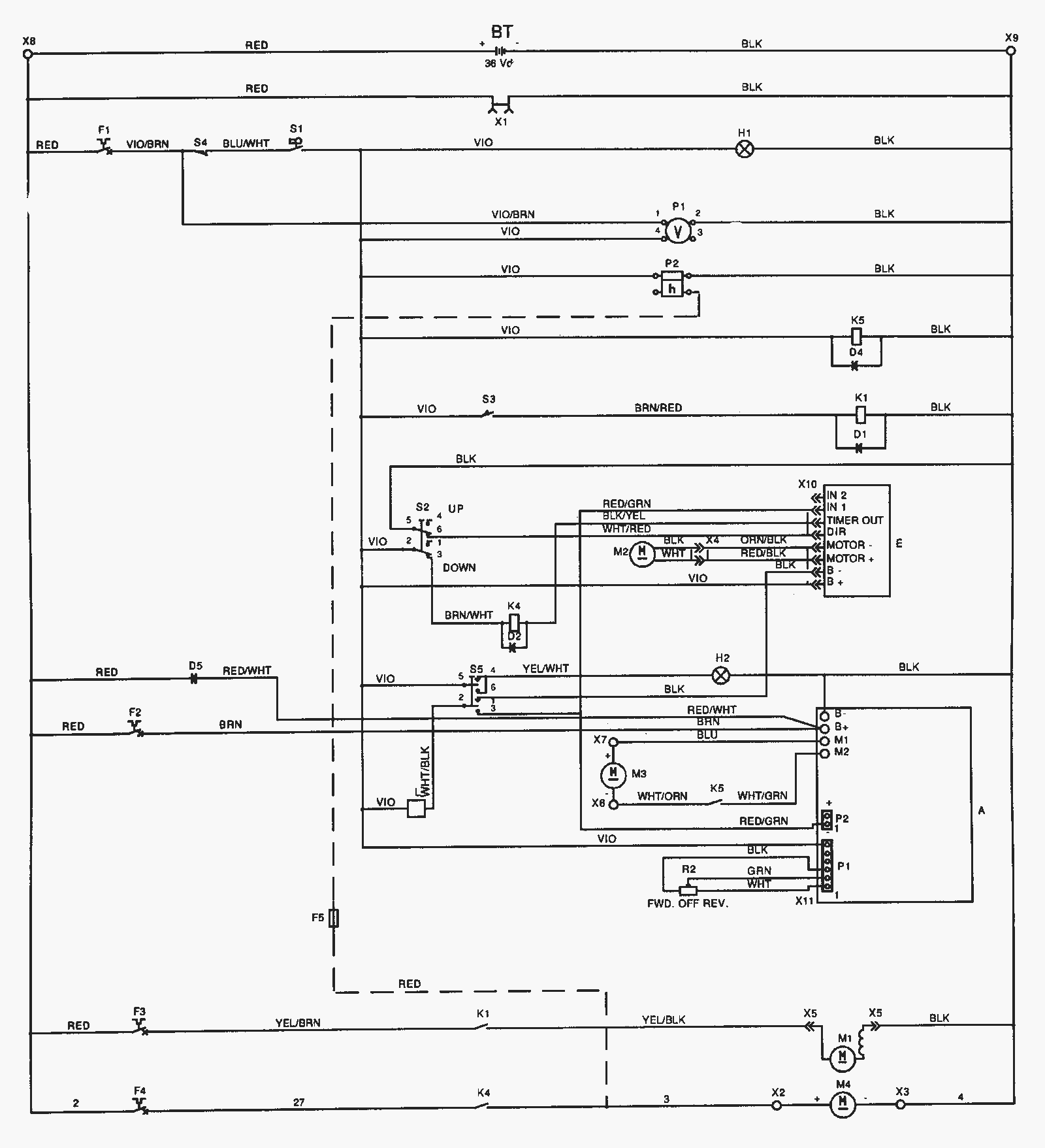

| # | Part | Description |
Req | Notes | Availability |
|---|
A001 |
172-2812
|
Speed control (OBSOLETE) |
1 |
|
|
BT001 |
N/A
|
Not available |
6 |
(not available) Battery 6 Volt |
|
D001 |
172-0236
|
Diode rectifier assembly |
1 |
|
|
D002 |
172-0236
|
Diode rectifier assembly |
1 |
|
|
D004 |
172-0236
|
Diode rectifier assembly |
1 |
|
|
D005 |
N/A
|
Not available |
|
(not available) Regenerative feedback diode |
|
E001 |
172-8041
|
Actuator Control Module(gearbox) (OBSOLETE) |
1 |
|
|
F001 |
172-0228
|
5amp circuit breaker (OBSOLETE) |
1 |
|
|
F002 |
172-9965
|
25 Amp circuit breaker |
1 |
|
|
F003 |
172-9965
|
25 Amp circuit breaker |
1 |
|
|
F004 |
172-9573
|
80 Amp circuit breaker (brush motor) |
1 |
|
|
F005 |
N/A
|
Not available |
|
(not available) 4 Amp fuse |
|
H001 |
172-0220
|
Green light (OBSOLETE) |
1 |
|
|
H002 |
172-0504
|
Blue light (OBSOLETE) |
1 |
|
|
K001 |
991-1223
|
36V solenoid contactor with 4 post |
1 |
|
|
K004 |
172-2805
|
36V contactor |
1 |
|
|
K005 |
991-1223
|
36V solenoid contactor with 4 post |
1 |
|
|
L001 |
272-1073
|
Solenoid valve |
1 |
|
|
M001a |
172-8007
|
36V 3 stage vacuum motor assembly |
1 |
|
|
M001b |
991-1202-P
|
36V 3 stage vacuum motor tangential with Packard plug |
1 |
|
|
M002 |
172-9188
|
Motor, Actuator |
1 |
|
|
M003 |
172-9962
|
Drive motor |
1 |
|
|
M004 |
172-0532
|
Motor 3hp |
1 |
|
|
P001 |
172-9588
|
Battery fuel gauge |
1 |
|
|
P002 |
N/A
|
Not available |
|
(not available) |
|
R002 |
172-2039
|
5K potentiometer |
1 |
|
|
S001 |
172-6004
|
Toggle switch |
1 |
|
|
S002 |
172-0219
|
Rocker switch |
1 |
|
|
S003 |
172-2301
|
Snap switch (OBSOLETE) |
1 |
|
|
S004 |
172-0235
|
Switch assembly (OBSOLETE) |
1 |
|
|
S005 |
172-2157
|
Rocker switch DPDT |
1 |
|
|
X001 |
272-1074
|
Charger connector (OBSOLETE) |
1 |
|
|
X002 |
N/A
|
Not available |
|
(not available) Brush motor + terminal stud |
|
X003 |
N/A
|
Not available |
|
(not available) Brush motor - terminal stud |
|
X004 |
N/A
|
Not available |
|
(not available) Actuator motor connector |
|
X005 |
N/A
|
Not available |
|
(not available) Vacuum motor connector |
|
X006 |
N/A
|
Not available |
|
(not available) Wheel drive motor - terminal stud |
|
X007 |
N/A
|
Not available |
|
(not available) Wheel drive motor + terminal stud |
|
X008 |
N/A
|
Not available |
|
(not available) + Terminal stud |
|
X009 |
N/A
|
Not available |
|
(not available) - Terminal stud |
|
X010 |
N/A
|
Not available |
|
Actuator control module connector |
|
X011 |
N/A
|
Not available |
|
Speed controller connector |
|
