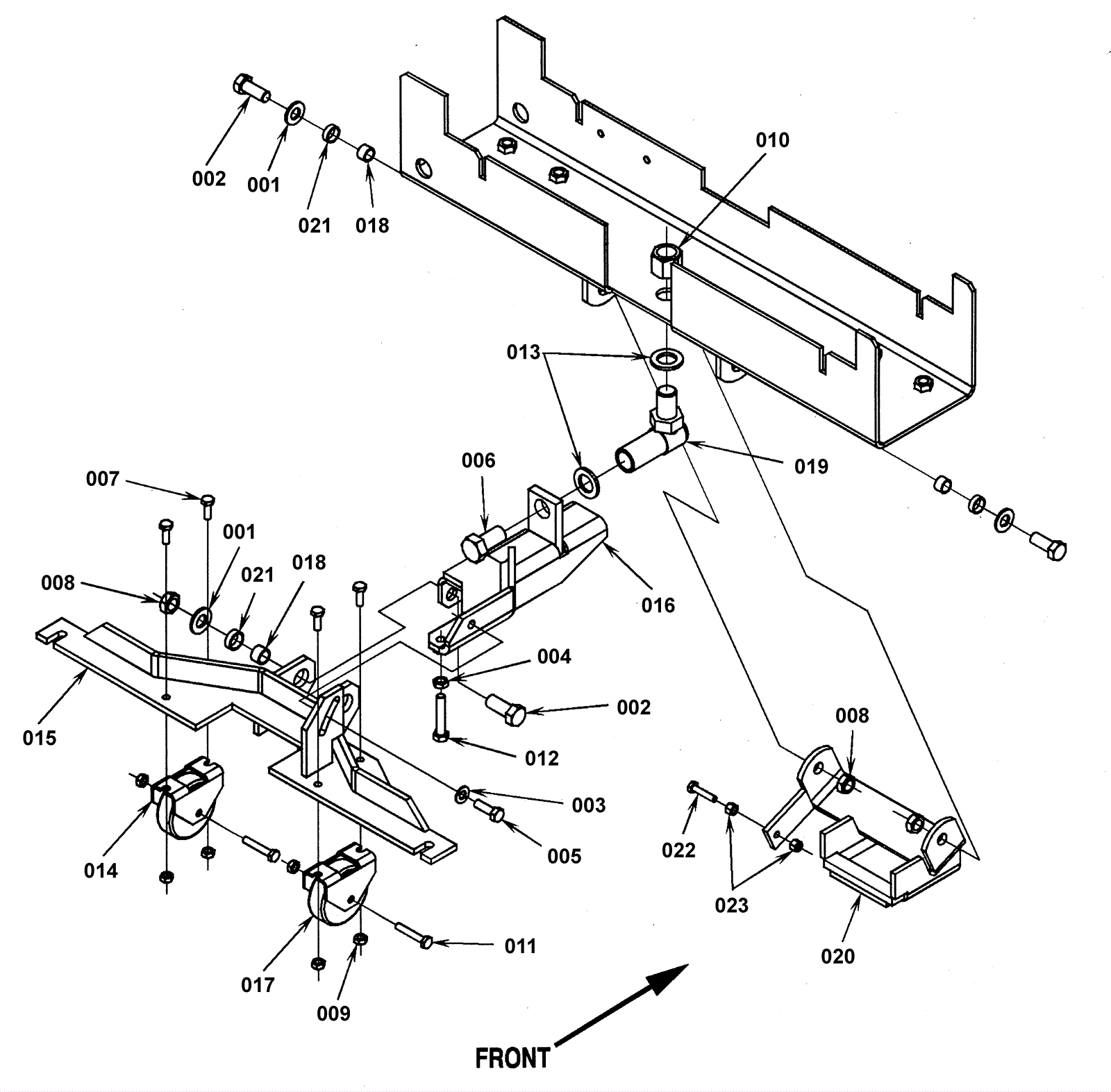

Squeegee Mount Assembly 2

#PartDescription ReqNotesAvailability
000 172-9231 Squeegee mount assembly (OBSOLETE) 1 (Includes items 1 - 10 and 21)
001 999-0187 Washer 1/2 flat plain finish 4
002 999-0200 Bolt 1/2-13 x 1 1/4 hex head 4
003 999-0412 Washer #8 SAE flat 1
004 999-0593 Nut 5/16-18 hex stainless steel 1
005 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 1
006 272-1463 Bolt 3/4-16 x 1 1/4 hex head 1
007 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
008 999-0118 Nut 1/2-13 nylon insert lock zinc plated 4
009 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
010 999-0752 Nut 3/4-16 hex jam zinc plated 1
011 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
012 272-1477 Bolt 5/16-18 X 3.00 hex head stainless steel 1
013 999-1134 Washer 1 1/4 flat stainless steel 2
014 172-8024 Wheel bracket 2
015 172-9799 Squeegee mount 1
016 172-9796 Squeegee tongue 1
017 172-9800 Wheel 2
018 172-0072 Bushing 4
019 172-8065 Ball joint 1
020 272-1058 Lifter weldment (OBSOLETE) 1
021 172-0079 Sleeve bearing (OBSOLETE) 4
022 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 1
023 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
