| # | Part | Description |
Req | Notes | Availability |
|---|

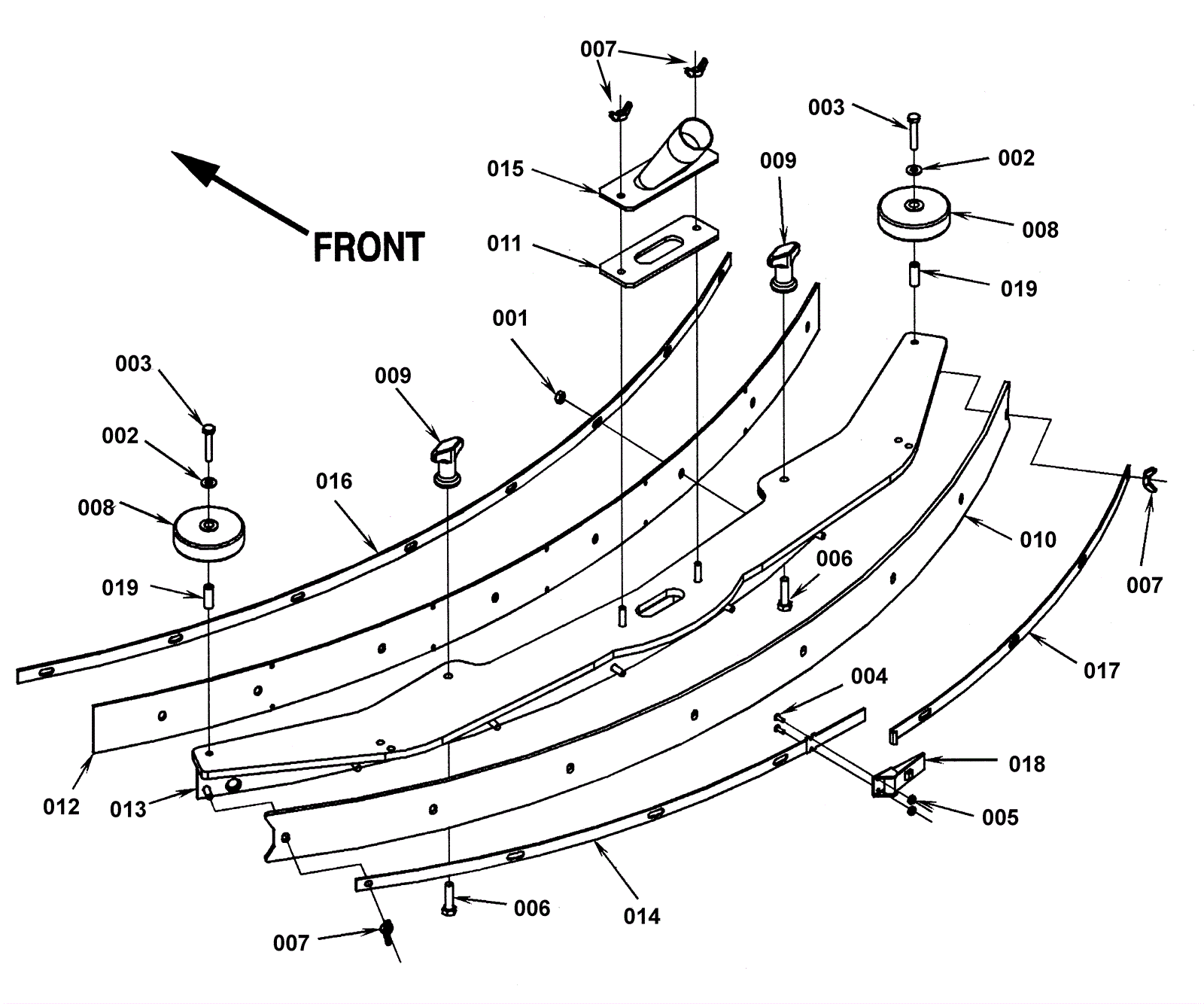

000 |
172-8074
|
Squeegee assembly (OBSOLETE) |
1 |
(includes items 1 - 19) |
|
001 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
002 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
003 |
999-0506
|
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
2 |
|
|
004 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
005 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
2 |
|
|
006 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
|
007 |
999-0603
|
Nut 1/4-20 wing stainless steel |
4 |
|
|
008a |
172-0083
|
3 inch guide wheel |
2 |
|
|
008b |
991-3060
|
Bumper wheel |
2 |
|
|
008c |
991-3030
|
Wheel |
2 |
(NON-OEM) |
|
009 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
010a |
172-8029
|
Squeegee blade 46 inch rear (tan) |
1 |
(Standard) |
|
010b |
172-9783
|
Squeegee blade kit neoprene |
1 |
(Oil resistant Front and Read blade Only available in kit |
|
011 |
172-8081
|
Gasket |
1 |
|
|
012a |
172-8030
|
Squeegee blade 45 inch front (tan) (OBSOLETE) |
1 |
(Standard) |
|
012b |
172-9783
|
Squeegee blade kit neoprene |
1 |
(Oil resistant) Front and Read blade Only available in kit |
|
013 |
172-0624
|
Tool weldment |
1 |
|
|
014 |
172-8066
|
Left rear strap |
1 |
|
|
015 |
172-0625
|
Tube weldment (OBSOLETE) |
1 |
|
|
016 |
172-9781
|
Front strap (OBSOLETE) |
1 |
|
|
017 |
172-8067
|
Right rear strap |
1 |
|
|
018 |
172-0094
|
Latch |
1 |
|
|
019 |
172-0095
|
Bushing |
2 |
|
|
KIT |
172-9782
|
Squeegee blade kit gum rubber |
1 |
(Includes items 10 and 12) |
|
