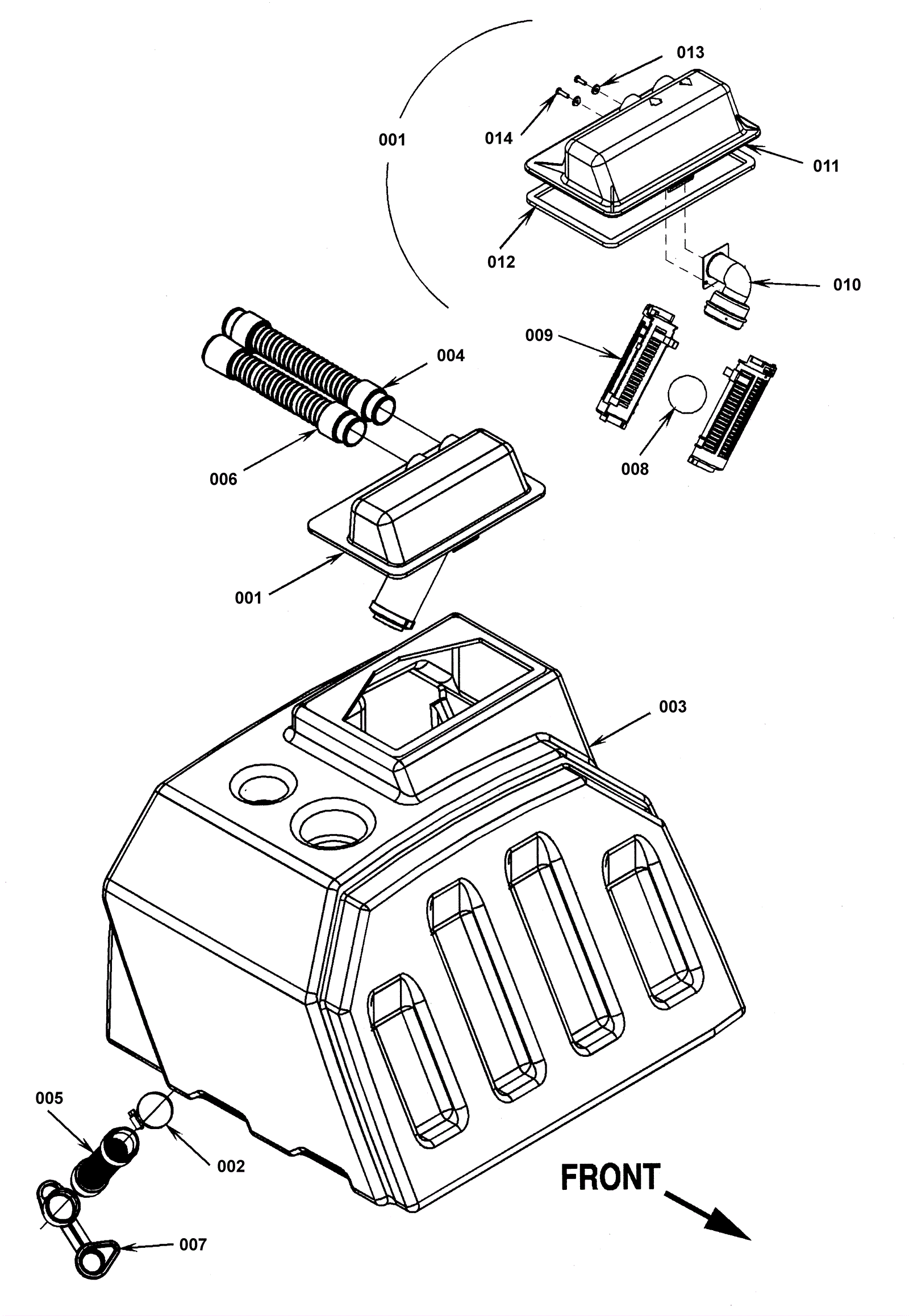

CONVERTAMATIC 32LX Recovery Tank System

#PartDescriptionPriceReqNotesAvailability
001a 172-0179 Cover assembly $421.17 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
001b 172-0179 Cover assembly $421.17 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
002 997-2000 Hose clamp $2.37 1 ships same day
003a 272-1134 Recovery tank(28LX / 280HD before SN 1192077) (OBSOLETE) $674.78 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 1-5 days
003b 272-1135 Recovery tank (280HD after SN 119076, all BA700) (OBSOLETE) $575.59 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 1-5 days
004a 272-1136 Squeegee hose assembly $78.58 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
004b 272-1136 Squeegee hose assembly $78.58 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
005a 172-2120 Hose assembly $74.21 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
005b 172-2120 Hose assembly $74.21 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
006a 272-1138 Vac hose assy (check SN on HD) $94.42 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
006b 272-1138 Vac hose assy (check SN on HD) $94.42 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
007a 272-1139 Drain plug $15.48 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
007b 272-1139 Drain plug $15.48 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
008 172-0192 Float ball $10.52 1 ships same day
009 172-0517 Float cage half (2 required for full float cage) $18.38 2 ships same day
010 172-0195 Float elbow (OBSOLETE) $44.99 1 usually ships 17-28 days
011a 172-0006 Recovery tank lid (OBSOLETE) $233.09 1 For all LX models, 320HD before SN 1190874 and 380HD before SN 1187523 usually ships 17-28 days
011b 172-0006 Recovery tank lid (OBSOLETE) $233.09 1 For 320HD after SN 1190873, 380HD after SN 1187522, and all BA 800/1000 usually ships 17-28 days
012 172-0190 Recovery tank lid gasket $32.69 1 usually ships 17-28 days
013 172-2311 Washer 9/16 $12.31 2 usually ships 17-28 days
014 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 2 ships same day
