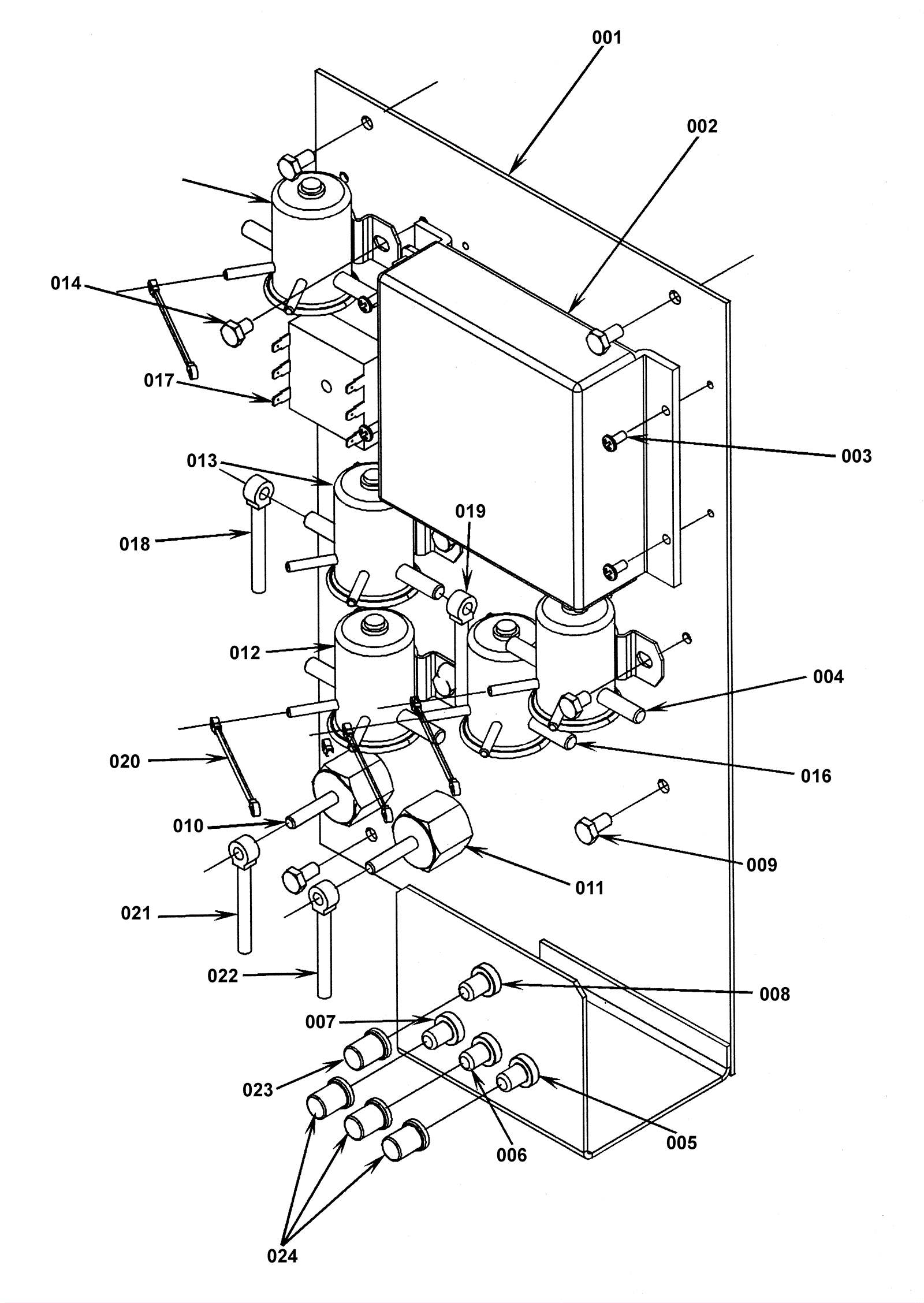

CONVERTAMATIC 32LX Electrical Panel 1

#PartDescriptionPriceReqNotesAvailability
001 172-9964 Electrical panel (OBSOLETE) $114.05 1 usually ships 1-5 days
002 172-2812 Speed control (OBSOLETE) $1,001.48 1 usually ships 17-28 days
003 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 4 ships same day
004 172-9827 Solenoid contactor (OBSOLETE) $131.27 1 (Brush down) usually ships 1-5 days
005 172-9965 25 Amp circuit breaker $70.18 1 (Vac motor) usually ships 1-5 days
006 172-9965 25 Amp circuit breaker $70.18 1 (Drive motor) usually ships 1-5 days
007 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 (Control circuit) usually ships 17-28 days
008 991-1633 70amp circuit breaker $57.60 1 (Brush motor) usually ships 21-22 days
009 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 4 ships same day
010 172-0346 Stud 1/4-20 $12.31 2 ships same day
011 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
012 991-1223 36V solenoid contactor with 4 post $48.17 1 (Vac motor) usually ships 14-21 days
013 991-1223 36V solenoid contactor with 4 post $48.17 1 (Brush motor) usually ships 14-21 days
014 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 10 ships same day
015 991-1223 36V solenoid contactor with 4 post $48.17 1 (Drive motor) usually ships 14-21 days
016 172-9827 Solenoid contactor (OBSOLETE) $131.27 1 (Brush up) usually ships 1-5 days
017 172-9966 Time delay (OBSOLETE) $263.74 1 usually ships 1-5 days
018 N/A Not available Call for price 1 (Not Available) Cable assembly usually ships 3-26 days
019 N/A Not available Call for price 1 (Not Available) Cable assembly usually ships 3-26 days
020 172-0236 Diode rectifier assembly $32.69 4 usually ships 17-28 days
021 N/A Not available Call for price 1 (Not Available) Cable assembly usually ships 3-26 days
022 172-9845 Cable (OBSOLETE) $17.23 1 usually ships 1-5 days
023 172-0232 Clear boot cap $34.87 1 usually ships 17-28 days
024 172-0231 Reset button boot $49.63 3 usually ships 17-28 days
N/S 272-1141 Wiring harness (OBSOLETE) $243.54 1 usually ships 1-5 days
