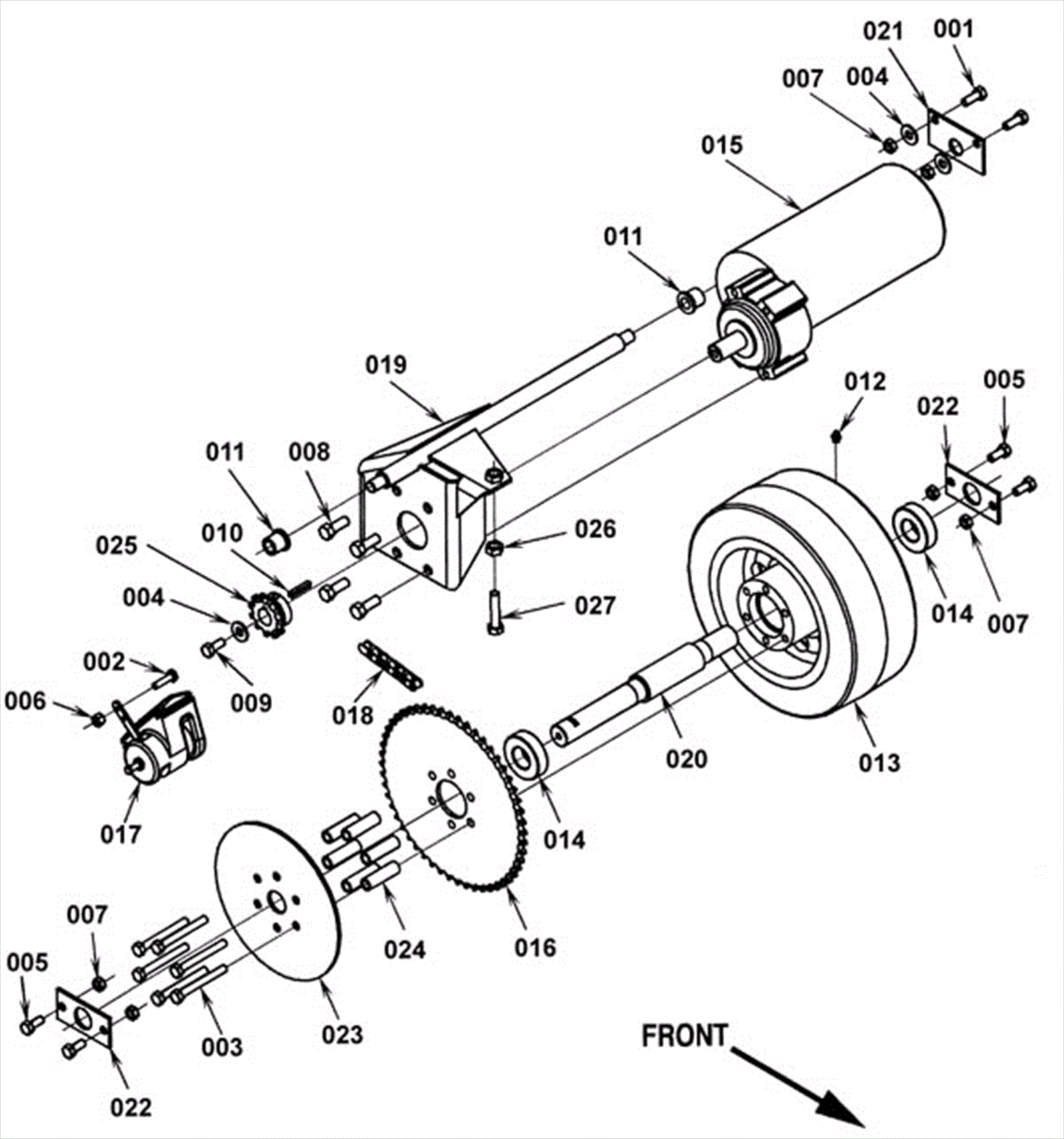

CONVERTAMATIC 32LX Drive System

#PartDescriptionPriceReqNotesAvailability
001 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 2 ships same day
002 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
003 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated $0.99 6 ships same day
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
005 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
006 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
007 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 6 ships same day
008 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
009 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 1 ships same day
010 172-0348 Square keyway $11.69 1 usually ships 1-5 days
011 172-4090 Flanged bearing $20.68 2 usually ships 17-28 days
012 172-0363 Grease fitting $12.31 1 usually ships 1-5 days
013 172-0543 Wheel 10.0 x 4.00 (OBSOLETE) $680.22 1 usually ships 17-28 days
014 172-0435 Top bearing $42.98 2 usually ships 17-28 days
015 172-9962 Drive motor $2,116.49 1 usually ships 1-5 days
016 172-8092 Sprocket $242.59 1 usually ships 17-28 days
017 272-7001 Caliper brake (OBSOLETE) $300.81 1 usually ships 17-28 days
018a 991-0101 Chain (sold by the link) $0.55 72 usually ships 4-8 days
018b 991-0103 Master link $1.87 1 ships same day
019 172-9960 Motor mount (OBSOLETE) $171.07 1 usually ships 1-5 days
020 172-8086 Axle (OBSOLETE) $152.46 1 usually ships 17-28 days
021 172-9961 Pillow block (OBSOLETE) $20.91 1 usually ships 1-5 days
022 172-8091 Pillow block (OBSOLETE) $23.96 2 usually ships 1-5 days
023 172-9958 Brake disc (OBSOLETE) $78.43 6 usually ships 1-5 days
024 172-9957 Bushing $24.20 1 usually ships 1-5 days
025 172-8093 Sprocket $95.66 1 usually ships 17-28 days
026 272-1467 Nut 3/8-16 hex lock $10.52 1 usually ships 1-5 days
027 999-1931 Bolt 3/8-16 x 2 hex head full thread stainless steel $1.80 1 ships same day
N/S 172-9963 Carbon brushes for drive motor (OBSOLETE) $205.26 1 usually ships 1-5 days
