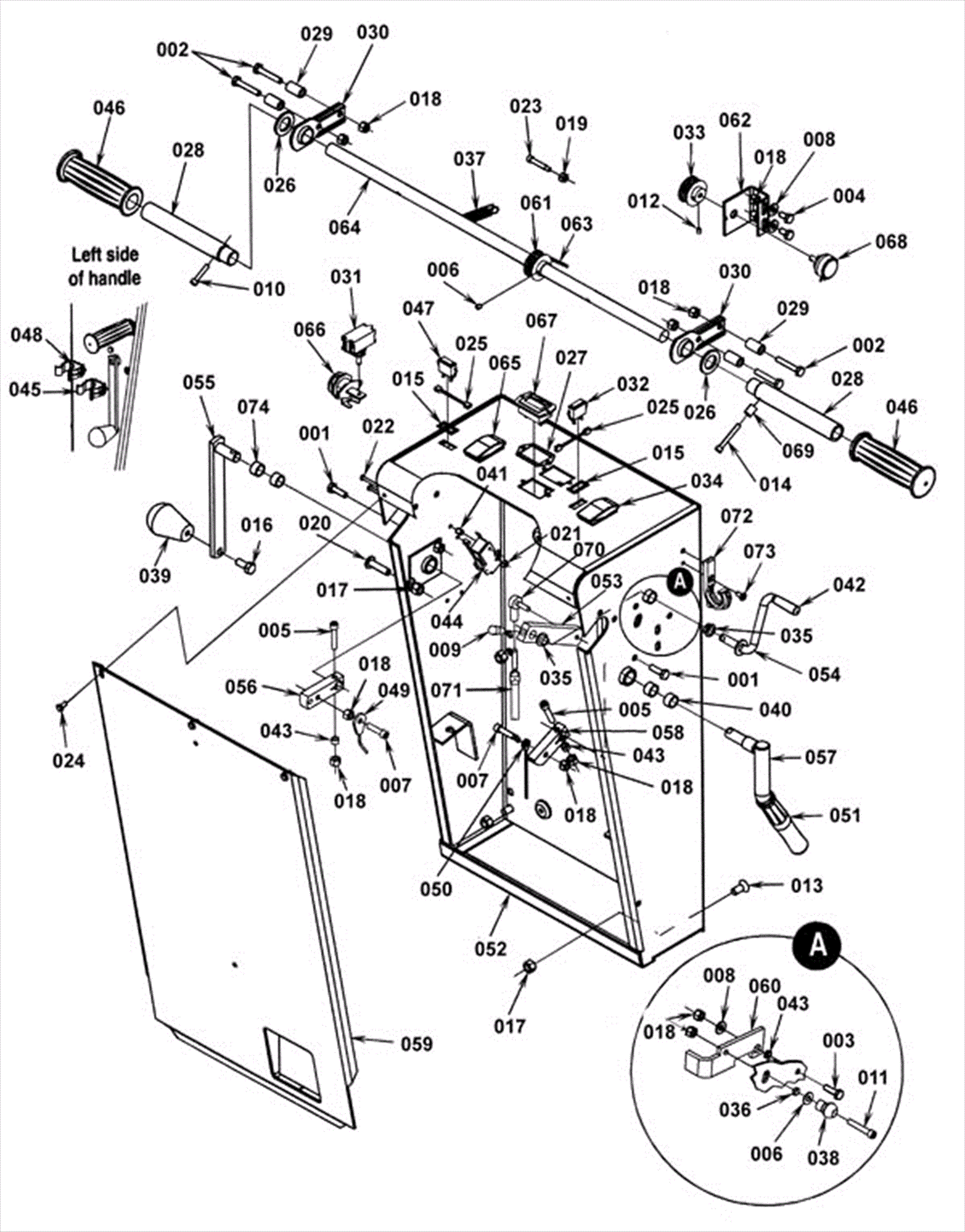

Control Handle System

#PartDescription ReqNotesAvailability
001 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 2
002 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 4
003 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
004 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 2
005 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 2
006 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish 2
007 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 2
008 999-0123 Washer 1/4 SAE flat zinc plated 4
009 999-0198 Screw 1/4-20 x 1 1/4 socket cap alloy plain finish 1
010 999-0368 Screw 10-24 x 1 socket head alloy plain finish 1
011 999-0180 Screw 1/4-20 x 1 1/2 x 5/16 socket cap shoulder 1
012 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 2
013 999-1258 Screw 5/16-18 x 3/4 flat head phillips stainless steel 4
014 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 1
015 N/A Not available 2 (Gasket)
016 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 1
017 999-0430 Nut 5/16-18 hex jam plain finish 5
018 999-0152 Nut 1/4-20 nylon insert lock zinc plated 14
019 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
020 999-1140 Screw 5/16-18 x 1 1/4 pan head phillips stainless steel 1
021 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
023 999-0745 Screw 10-24 x 1 1/4 socket head shoulder 2
024 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 3
025 N/A Not available 2 Resistor assembly
026 999-1134 Washer 1 1/4 flat stainless steel 2
027 272-1449 Gasket 1
028 172-9927 Tube (OBSOLETE) 2
029 N/A Not available 4 (Bushing)
030 N/A Not available 2 (Bearing)
031 172-6004 Toggle switch 1
032 172-0504 Blue light (OBSOLETE) 1
033 172-9884 Pulley (OBSOLETE) 1
034 172-2157 Rocker switch DPDT 1
035 172-8815 Flanged bearing 2
036 172-2655 Bushing 1
037 172-8059 Control handle return spring 2
038 172-9954 Knob for after SN 0568435 (OBSOLETE) 1
039 172-0021 Knob 1
040 172-0048 Bearing 2
041 172-8164 Bushing 2
042 172-2740 Cap (OBSOLETE) 1
043 172-0379 Bushing 3
044 172-2301 Snap switch (OBSOLETE) 1
045 272-1159 Plastic clamp 2
046a 164-0304 Handle grip 2
046b 991-8571 Handle grip 2 (NON-OEM)
047 172-0220 Green light (OBSOLETE) 1
048 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc 4
049 172-0571 Cable assembly 1 Squeegee
050 172-8071 Cable assembly (OBSOLETE) 1 Brake
051 172-9949 Hand grip (OBSOLETE) 1
052 272-1160 Control panel weldment (OBSOLETE) 1
053 172-9944 Lever (OBSOLETE) 1
054 172-9939 Solution lever (OBSOLETE) 1
055 272-1161 Squeegee lever weldment 1
056 272-1162 Lever (OBSOLETE) 1
057a 172-9940 Brake lever (OBSOLETE) 1 Before S/N 1209360
057b 272-1163 Brake lever weldment (OBSOLETE) 1 After S/N 1209359
058a 172-8072 Lever (OBSOLETE) 1 Before S/N 1209360
058b 272-1164 Lever (OBSOLETE) 1 After S/N 1209359
059 172-9945 Cover (OBSOLETE) 1
060 172-9953 Parking brake catch lever for after SN 0568435 (OBSOLETE) 1
061 172-8051 Pulley 1
062 N/A Not available 1 (Not Available) Bracket
063 172-9932 Belt 1
064 172-9930 Tube (OBSOLETE) 1
065 172-0219 Rocker switch 1
066 172-2161 Key switch with key and bracket 1
067 172-9588 Battery fuel gauge 1
068 172-2039 5K potentiometer 1
069 172-2758 Bushing 1
070 172-0207 Rod end #10 1
071 272-1165 Cable (solution valve) (OBSOLETE) 1
072 172-0020 Hook (OBSOLETE) 1
073 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
074 172-0048 Bearing 2
N/S 172-0451 Replacement key 1
