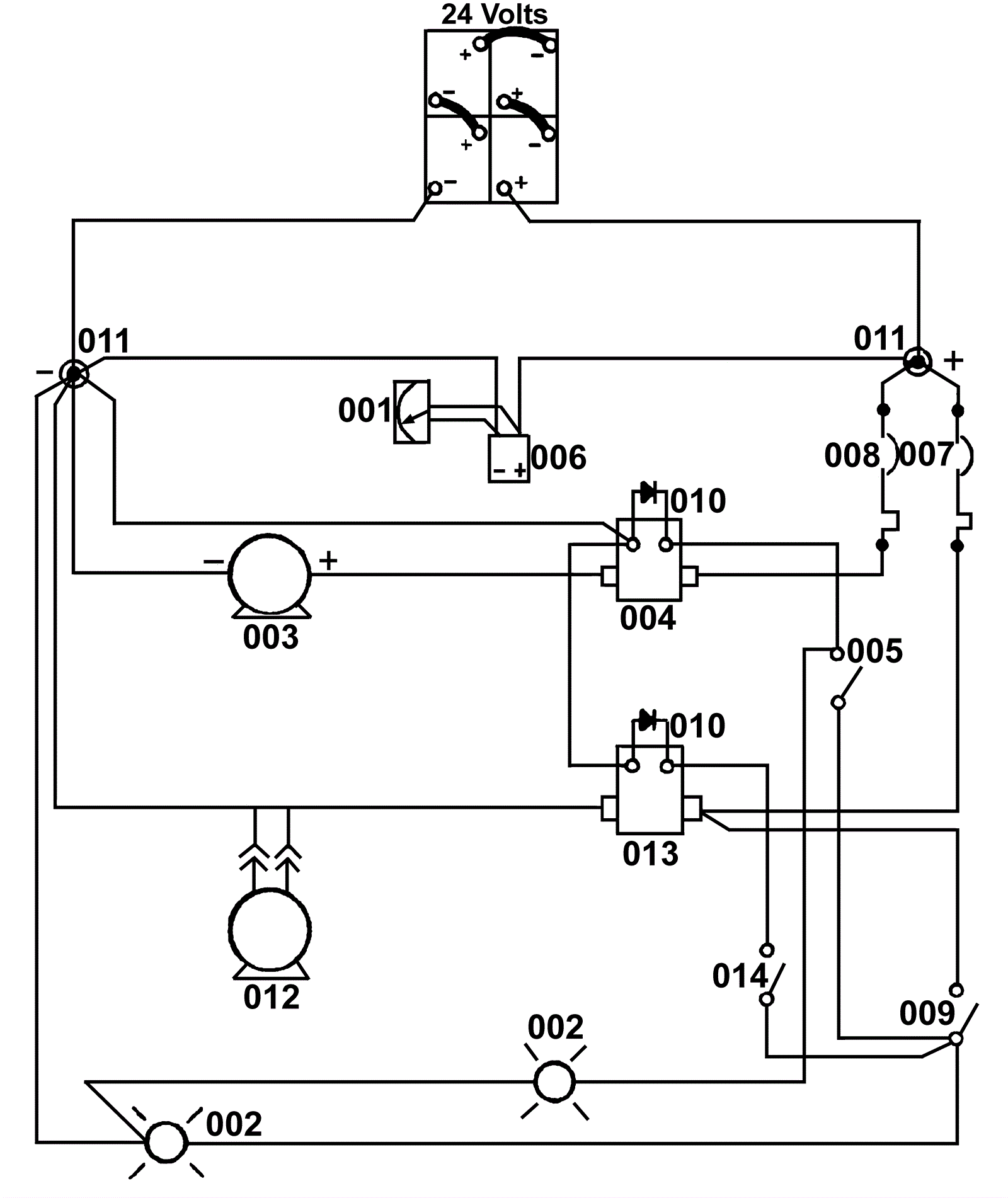

CONVERTAMATIC 26B Mdl 372000 after SN302067 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-0322 Battery condition meter (OBSOLETE) $88.52 1 usually ships 1-5 days
002 172-0313 Indicator light $26.40 2 usually ships 1-5 days
003 172-0349 Brush motor $1,760.00 1 usually ships 1-5 days
004 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
005 172-0312 Toggle switch $85.24 1 usually ships 16-41 days
006 172-0321 Charger plug assembly (OBSOLETE) $178.20 1 usually ships 1-5 days
007 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 usually ships 16-41 days
008 172-0229 50amp circuit breaker $82.93 1 usually ships 1-5 days
009 172-0312 Toggle switch $85.24 1 usually ships 16-41 days
010 172-0236 Diode rectifier assembly $32.69 2 usually ships 16-41 days
011 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
012 991-1209 24V 2 stage vacuum motor peripheral $270.84 1 ships same day
013 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
014 172-0270 Snap switch $47.30 1 usually ships 5-10 days
