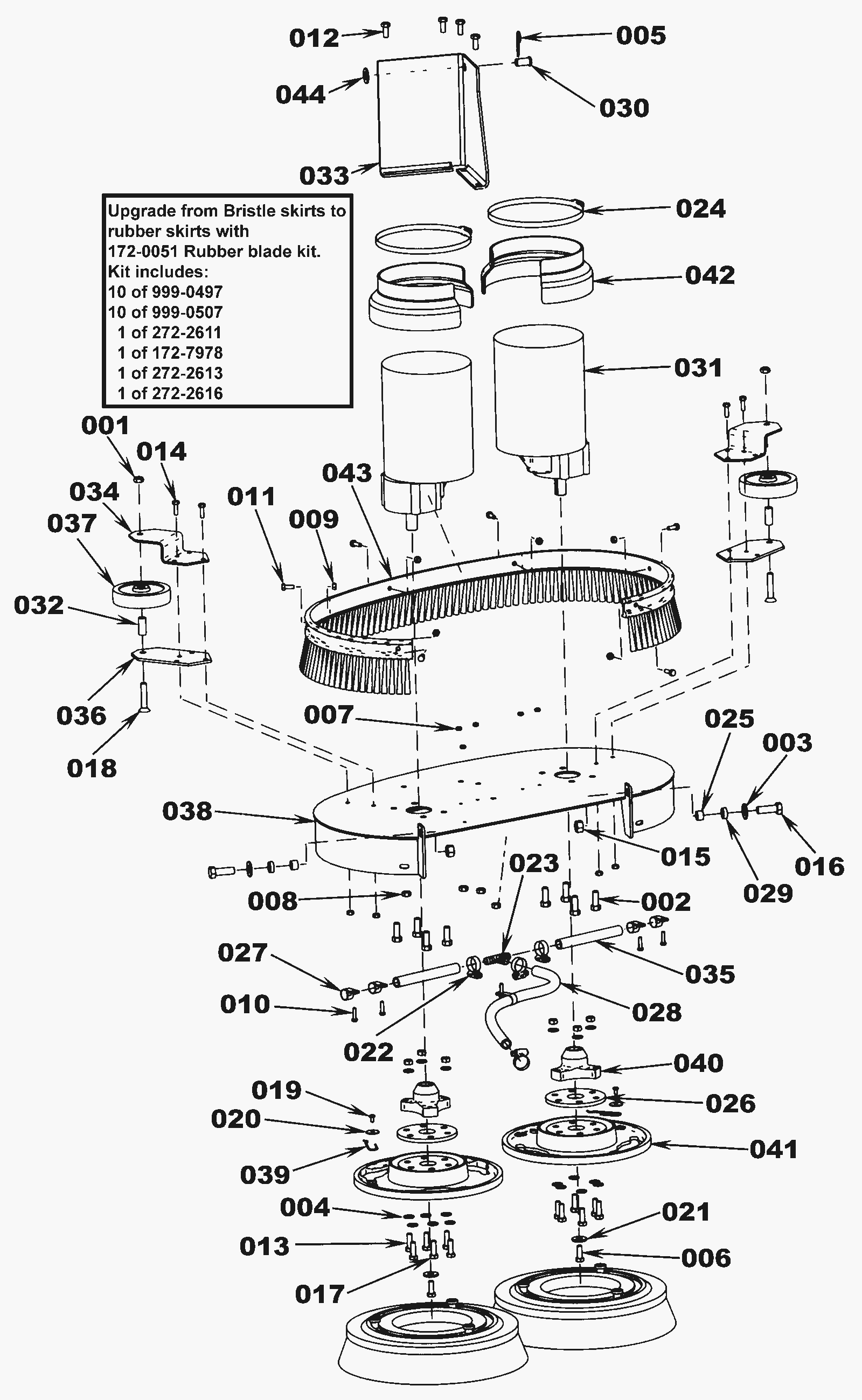

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
002 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
003 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
004 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
18 |
|
|
005 |
997-2509
|
Cotter pin 1/8 x 3/4 stainless steel |
1 |
|
|
006 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
007 |
999-0495
|
Nut M5-.8 nylon insert lock zinc plated |
5 |
|
|
008 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
10 |
|
|
009 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
10 |
|
|
010 |
999-0498
|
Bolt M5-.8 x 20mm hex head full thread zinc |
5 |
|
|
011 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
6 |
|
|
012 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
013 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
014 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
|
015 |
999-0503
|
Nut M12-1.75 hex stainless steel |
2 |
|
|
016 |
999-0504
|
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
|
017 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
018 |
999-0505
|
Screw 3/8-16 x 2 flat head socket zinc plated |
2 |
|
|
019 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
|
020 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
021 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
022 |
997-2002
|
Hose clamp #6 |
4 |
|
|
023 |
172-4114
|
Tee barb |
1 |
|
|
024 |
997-2010
|
Hose clamp |
2 |
|
|
025 |
172-0072
|
Bushing |
2 |
|
|
026 |
172-2070
|
Thermoid disk |
4 |
|
|
027 |
172-2071
|
P clamp |
5 |
|
|
028 |
172-2072
|
Clear PVC hose |
1 |
hose going to brushes |
|
029 |
172-0079
|
Sleeve bearing (OBSOLETE) |
2 |
|
|
030 |
172-2073
|
Bushing |
1 |
|
|
031a |
172-2074
|
Gear motor (OBSOLETE) |
2 |
|
|
031b |
172-0479
|
Back end bearing (OBSOLETE) |
1 |
|
|
031c |
172-2053
|
Front end bearing (OBSOLETE) |
1 |
|
|
031d |
172-2054
|
Brush spring |
4 |
|
|
031e |
172-2056
|
Carbon brush (pkg of 4) |
4 |
|
|
031f |
172-2079
|
Brush board assembly (OBSOLETE) |
1 |
|
|
032 |
172-2080
|
Steel spacer (OBSOLETE) |
2 |
|
|
033 |
N/A
|
Not available |
1 |
(Scrub head lift bracket) |
|
034 |
172-2082
|
Steel plate (OBSOLETE) |
2 |
|
|
035 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
5 1/2 in |
hose going to brushes |
|
036 |
N/A
|
Not available |
2 |
Steel plate |
|
037 |
172-2085
|
Wheel |
2 |
|
|
038 |
N/A
|
Not available |
1 |
(Brush head weldment) |
|
039 |
172-2087
|
Spring retainer |
2 |
|
|
040 |
172-2088
|
Drive hub (OBSOLETE) |
2 |
|
|
041 |
172-2089
|
Drive plate |
2 |
|
|
042 |
172-2090
|
Motor shroud (OBSOELTE) |
2 |
|
|
043a |
172-2091
|
Bristle skirt (OBSOLETE) |
1 |
|
|
043b |
172-0422
|
Squeegee blade kit rubber (OBSOLETE) |
1 |
|
|
043c |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
10 |
Included in 043b |
|
043d |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
10 |
Included in 043b |
|
043e |
272-2611
|
Squeegee blade right 26 inch (OBSOLETE) |
1 |
Included in 043b |
|
043f |
172-7978
|
Squeegee blade left |
1 |
Included in 043b |
|
043g |
272-2613
|
Right channel (OBSOLETE) |
1 |
Included in 043b |
|
043h |
272-2616
|
Left channel |
1 |
Included in 043b |
|
044 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
