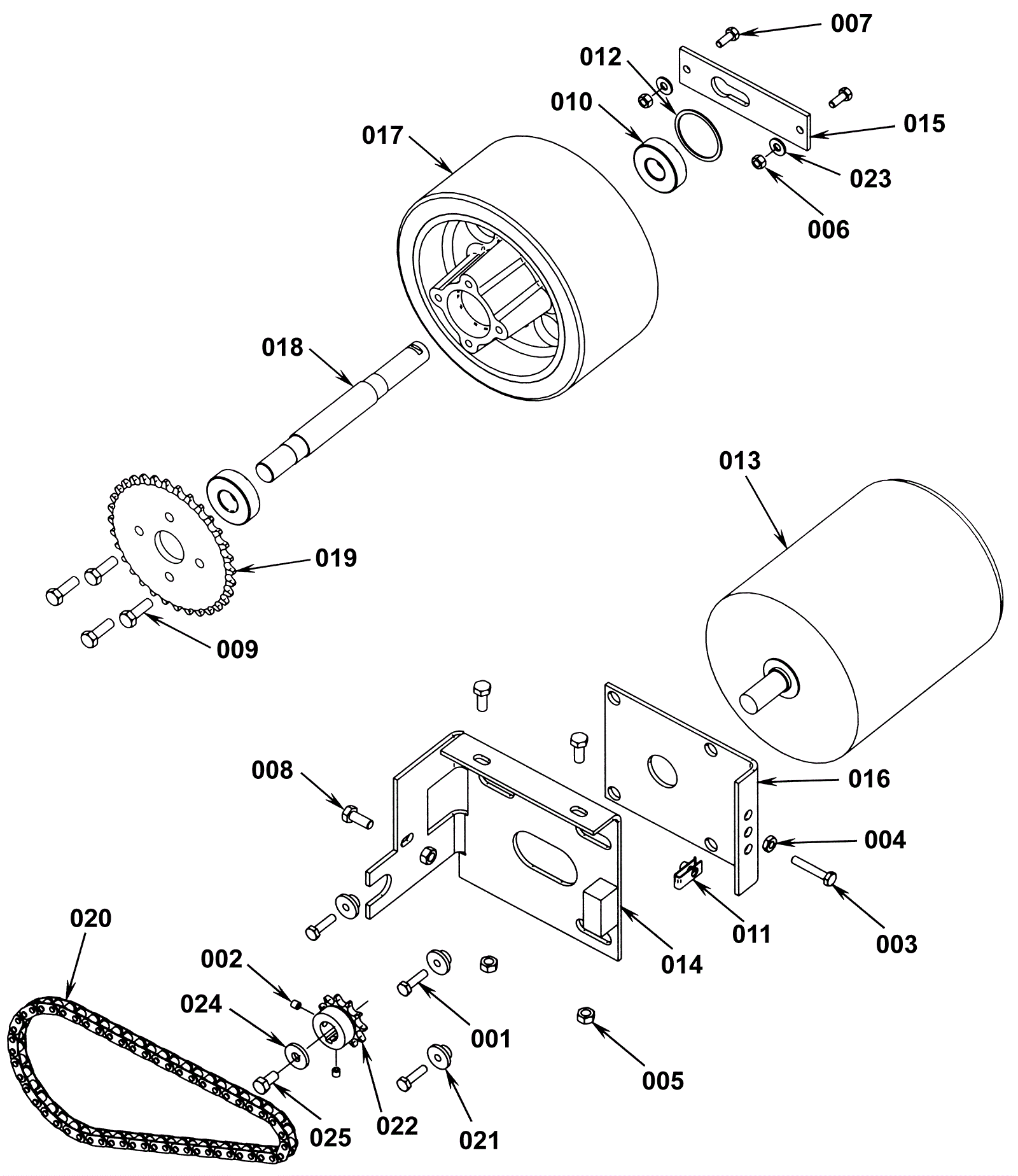

CONVERTAMAX 20 Drive System

#PartDescriptionPriceReqNotesAvailability
001 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 3 ships same day
002 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
003 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 1 ships same day
004 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 Before SN 1573672 ships same day
005 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 3 Before SN 1573672 ships same day
006 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 Before SN 1573672 ships same day
007 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
008 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 Before SN 1573672 ships same day
009 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
010 172-4597 Ball bearing $55.14 2 usually ships 1-5 days
011 172-2049 Nut 1/4- 20 $12.89 1 usually ships 1-5 days
012 172-2050 Retaining ring $22.61 1 usually ships 1-5 days
013a 172-2051 1/2 hp DC motor $2,182.16 1 Before SN 1573671 usually ships 1-5 days
013b 172-1032 B.E. Bearing $77.65 1 usually ships 1-5 days
013c 172-2053 Front end bearing (OBSOLETE) $52.14 1 usually ships 1-5 days
013d 172-2054 Brush spring $17.74 4 usually ships 1-5 days
013e 172-2056 Carbon brush (pkg of 4) $100.01 4 usually ships 13-18 days
013f 172-2057 Brush board assembly (OBSOLETE) $147.31 1 usually ships 1-5 days
013g 172-1889 Motor 24V DC 1/2hp $1,088.85 1 After SN 1573672 usually ships 1-5 days
014 N/A Not available Call for price 1 Before SN 1573672 (Traction drive bracket weldment) usually ships 3-26 days
015 172-2059 Steel bar (OBSOLETE) $10.26 1 usually ships 1-5 days
016a 172-2060 Traction drive tension bracket (OBSOLETE) $116.47 1 Before SN 1573672 usually ships 1-5 days
016b 272-2624 Tension bracket (OBSOLETE) $31.48 1 After SN 1573671 usually ships 1-5 days
017 172-2061 Wheel (OBSOLETE) $693.55 1 usually ships 13-18 days
018 172-2062 Axle $111.47 1 usually ships 13-18 days
019 172-2063 Sprocket $131.34 1 usually ships 13-18 days
020a 991-0101 Chain (sold by the link) $0.55 56 usually ships 4-8 days
020b 991-0103 Master link $1.87 1 ships same day
021 172-2065 Bushing $20.46 3 Before SN 1573672 usually ships 1-5 days
022 172-2066 Sprocket with keyway $41.97 1 usually ships 1-5 days
023 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 Before SN 1573672 ships same day
024 172-2067 Washer 11/32 x 1/8 flat $12.89 1 usually ships 13-18 days
025 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 1 ships same day
